TP-Link AC1200 Wireless N Wall Plugged Range Extender - TL-RE305

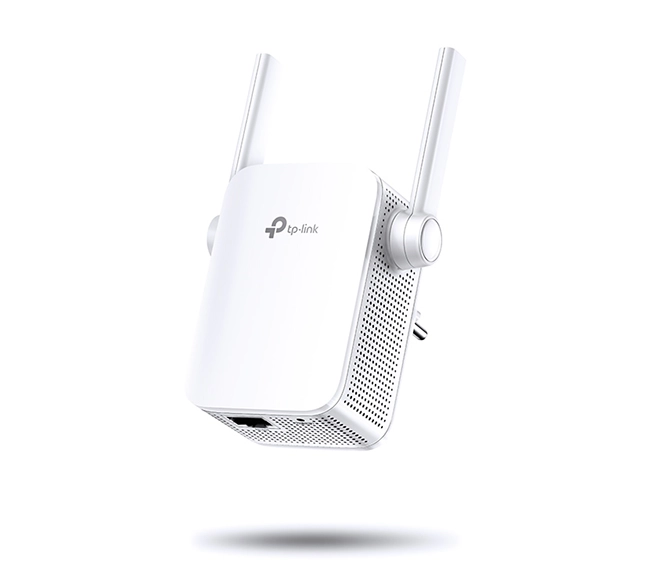

The TP-Link AC1200 Wireless N Wall Plugged Range Extender - TL-RE305 designed to expand wireless coverage and eliminate dead zones. With support for TP-Link OneMesh™ technology, it provides seamless roaming when paired with compatible routers. Offering speeds up to 1200Mbps, a compact wall-plug design, and smart signal strength indicators, the TL-RE305 is ideal for improving home and office Wi-Fi performance.

Detailed Specifications

Wireless Standards:

• IEEE 802.11ac, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, IEEE 802.11a

Frequency Bands & Speeds:

• 2.4GHz: up to 300Mbps
• 5GHz: up to 867Mbps

Total Speed:

• AC1200 (1167Mbps combined)

Antennas:

• 2 × external adjustable antennas

Mesh Support:

• OneMesh™ compatible for seamless roaming with supported TP-Link routers

Transmit Power:

• < 20dBm (2.4GHz)
• < 23dBm (5GHz)

Ports:

• 1 × 10/100Mbps Ethernet port (RJ45)

Button Controls:

• WPS Button
• Reset Button

Functions:

• Range Extender Mode
• Access Point Mode (via Ethernet port)

Security:

• WPA-PSK / WPA2-PSK

Signal Strength Indicator:

• Smart LED indicators to find the best installation location

Dimensions:

• 3.1 × 3.0 × 2.0 in (80 × 78 × 77 mm)

Power Supply:

• Direct wall-plug AC 100–240V, 50/60Hz

Operating Environment:

• Temperature: 0°C–40°C
• Humidity: 10%–90% non-condensing

Compatibility:

• Works with any standard wireless router or access point

Key Features

• Dual-band AC1200 speeds for faster streaming and gaming
• OneMesh™ support for seamless whole-home Wi-Fi

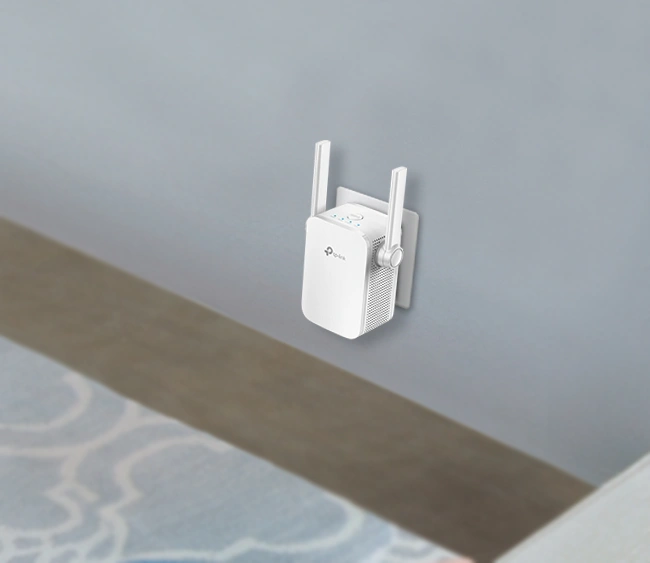

• Compact wall-plug design with easy WPS setup
• Adjustable external antennas for optimal coverage
• Ethernet port for wired connections in AP mode
