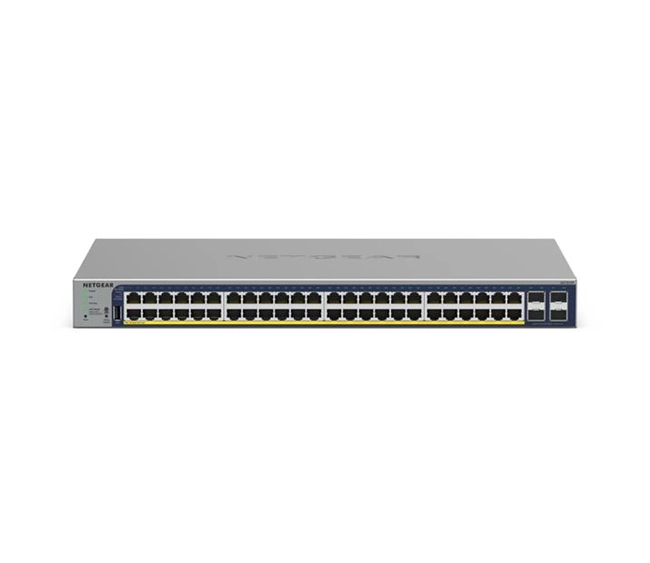

Netgear GS752TPv3-300UKS – 52-Port Gigabit PoE+ Smart Managed Pro Switch

The Netgear GS752TPv3-300UKS – 52-Port Gigabit PoE+ Smart Managed Pro Switch is a 52-port Gigabit Smart Managed Pro switch designed to deliver powerful PoE+ connectivity with advanced management features. Featuring 48 Gigabit PoE+ ports and 4 dedicated Gigabit SFP uplinks, it combines robust performance, enterprise-level security, and flexible PoE power delivery. Ideal for medium to large businesses, campuses, and enterprises, this switch supports VoIP, wireless access points, IP surveillance, and other PoE-enabled devices.

---

Ports & Connectivity

• Total Ports: 52
  • 48 × 10/100/1000 Mbps RJ-45 Gigabit PoE+ ports
  • 4 × dedicated 1 GbE SFP uplink ports (fiber or copper modules supported)
• PoE Standards Supported:
  • IEEE 802.3af (PoE – up to 15.4W per port)
  • IEEE 802.3at (PoE+ – up to 30W per port)
• Max PoE per Port: 30W
• Total PoE Budget: 380W

---

Performance

• Switching Capacity: 104 Gbps non-blocking
• Forwarding Rate: 77.3 Mpps
• MAC Address Table: 16,000 entries
• Jumbo Frame Support: Up to 9,216 bytes

---

Smart Managed Pro Features

• VLAN Support: Port-based VLANs, 802.1Q VLAN tagging, voice VLANs
• QoS (Quality of Service): Traffic prioritization for voice, video, and data applications
• IGMP Snooping (v1, v2, v3) for multicast optimization
• Link Aggregation: IEEE 802.3ad LACP for bandwidth efficiency
• Security:
  • 802.1X port-based authentication
  • ACLs (Access Control Lists)
  • DHCP Snooping
  • DoS attack prevention
• Layer 3 Lite: Static routing for efficient traffic segmentation
• Management Interfaces: Web GUI, CLI, SNMP (v1, v2c, v3), Insight Cloud Management
• Monitoring: Port mirroring, syslog, RMON

---

Power & Energy

• PoE Budget: 380W shared across 48 ports
• PoE Power: Sufficient for mid-sized deployments of APs, VoIP, and IP cameras
• Energy Efficient Ethernet (IEEE 802.3az) for reduced energy use

---

Design & Build

• Form Factor: Rack-mountable 1U (metal enclosure)
• Cooling: Multi-fan system for efficient cooling
• LED Indicators: Power, Link/Activity, Speed, PoE status

---

Physical Specifications

• Dimensions (W × D × H): 440 × 257 × 43 mm
• Weight: ~4.0 kg

---

Environmental Conditions

• Operating Temperature: 0°C to 50°C
• Storage Temperature: –20°C to 70°C
• Operating Humidity: 10% – 90% non-condensing

---

Warranty & Support

• Warranty: Netgear Limited Lifetime Hardware Warranty
• Support: 24/7 lifetime technical support (with registration) + next-business-day replacement

---

Typical Use Cases

• Enterprise and campus networks requiring PoE+ for APs, VoIP, and surveillance
• Medium to large office environments needing secure and scalable connectivity
• Education and healthcare facilities requiring robust, managed PoE networks
• Retail and hospitality deployments with a large number of powered devices

---

Key Features

• 52 ports total: 48 Gigabit PoE+ + 4 SFP uplinks
• 380W PoE+ power budget with up to 30W per port
• Advanced VLAN, QoS, and security features
• Layer 3 Lite static routing for better traffic management
• Smart Managed Pro switch with cloud, web, and CLI management options

---

Meta Description

Netgear GS752TPv3-300UKS – 52-Port Gigabit PoE+ Smart Managed Pro Switch with 48 PoE+ ports, 380W PoE budget, and 4 × 1GbE SFP uplinks. Perfect for enterprise, campus, and surveillance networks. Datasheet
