The Ubiquiti LTU Rocket 5 GHz PtMP BaseStation is Ubiquiti’s flagship 5 GHz PtMP BaseStation radio, designed for wireless ISPs needing high capacity, long‑range links, and advanced spectral efficiency.
Detailed Specifications for Ubiquiti LTU‑Rocket
Hardware & Mechanical
- Dimensions: 244 × 82 × 48 mm; Weight: ~468 g

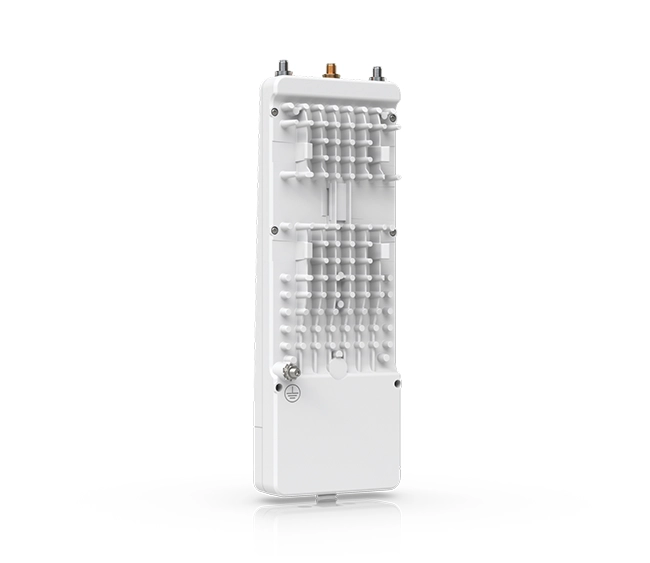

- Enclosure: Die-cast aluminum & polycarbonate, weatherproof IP67
- Mounting: Integrated pole mount, GPS pole-mount included, Rocket-style mount compatible
Ubiquiti LTU‑Rocket 5 GHz PtMP BaseStation Networking & Power
- Ethernet ports:
- Data: 1 × Gigabit RJ45
- Management: 1 × additional Gigabit RJ45 (reserved)
- Power: Passive 4-pair PoE (18–54 V DC); includes 24 V, 1 A PoE adapter; max draw ~15 W
RF & GPS

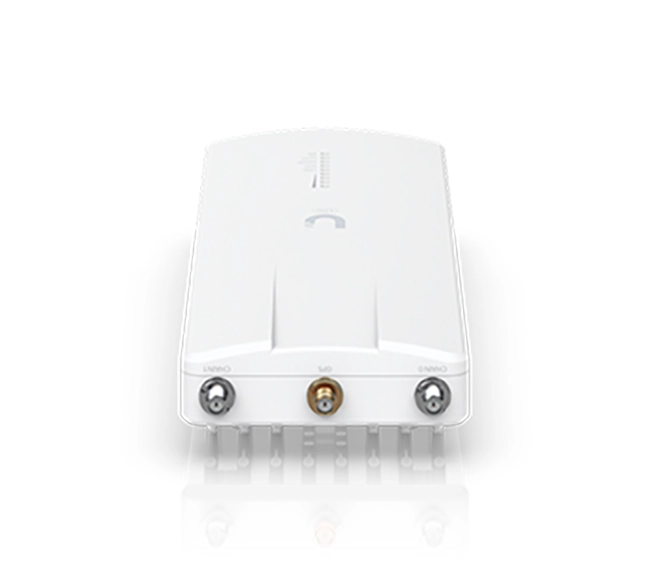

- Dual RP-SMA 5 GHz antenna connectors (CH0, CH1); single SMA for GPS
- GPS synchronization built in
Performance
- Real TCP/IP throughput: >600 Mbps; >900 Mbps with firmware 2.3+
- Packet capacity: >2 million packets per second
- Maximum client support: 64 (upgradable to 255 via firmware)
- Maximum range: 100+ km (environment dependent)
RF Configuration
- Frequency range: 4800–6200 MHz (regulatory dependent)
- Channel widths: 10–50 MHz (expandable to 60/80/100 MHz in firmware ≥2.3)
- Max TX power: 29 dBm; multichain support (MIMO)
Ubiquiti LTU Rocket 5 GHz PtMP BaseStation Software, Management & Features
- Default OS: airOS LTU (for PtMP AP)
- Management: Web UI, Bluetooth via UISP mobile app, SNMP, SSH, dynamic DNS, remote logging, ping watchdog
- Utilities: airView spectrum analyzer, speed test, link alignment, cable test, constellation plot
- Auto-adjust: Transmit power and distance tuning, uplink/downlink duty cycle options
- Security: WPA2-PSK (AES) and Forward Error Correction (LDPC)
Operational Environment & Compliance
- Operating temperature: –40 °C to +55 °C
- Certifications: CE, FCC, IC; NDAA compliant
✅ Conclusion
Ubiquiti LTU‑Rocket is a 5 GHz PtMP BaseStation radio with IP67 die-cast housing, dual RP-SMA ports, GPS sync, >900 Mbps throughput, flexible channel selection, airView tools, and advanced management—designed for scalable ISP networks.
