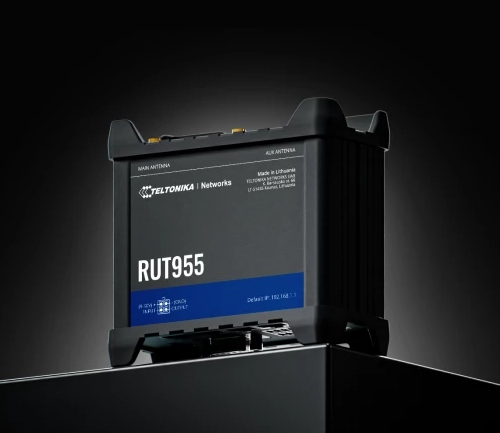

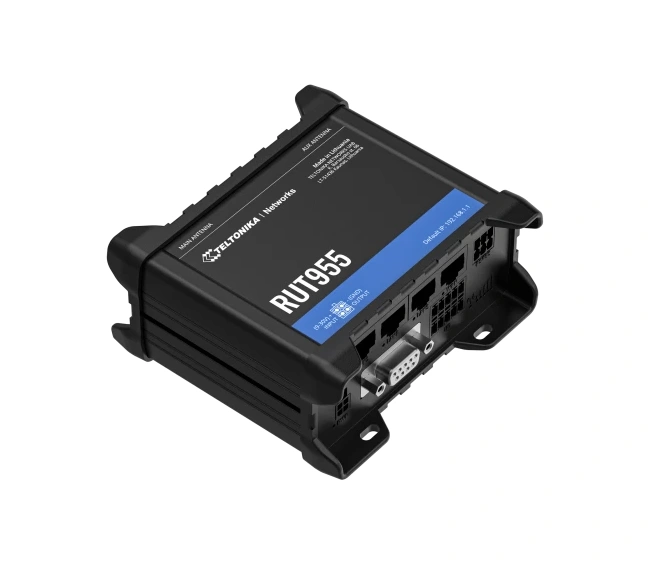

Teltonika RUT955 - 4G LTE Wi-Fi Dual-SIM Router

The Teltonika RUT955 - 4G LTE Wi-Fi Dual-SIM Router is a high-performance industrial LTE Cat 4 router designed for mission-critical IoT and M2M applications. It offers robust wireless and wired connectivity, dual SIM failover, GNSS capabilities, and advanced remote management features. RUT955 is suitable for transportation, energy, industrial automation, and public safety deployments.

---

Cellular Connectivity

• Mobile Technology: 4G LTE Cat 4 with 3G and 2G fallback
• Download Speed: Up to 150 Mbps
• Upload Speed: Up to 50 Mbps
• Supported Frequency Bands: Depends on regional variant (e.g., B1, B3, B7, B8, B20 in Europe)
• Dual SIM Slots: Standard-sized, with automatic failover and backup switching logic
• Carrier Aggregation: Not supported
• Antenna Ports: 2 SMA connectors for LTE antennas

---

Wi-Fi and Networking

• Wi-Fi Standard: IEEE 802.11 b/g/n (2.4 GHz)
• Wi-Fi Modes: Access Point and Station
• Wi-Fi Encryption: WPA/WPA2-PSK, WPA2-Enterprise
• Ethernet Ports: 4 × 10/100 Mbps (1 WAN, 3 LAN, configurable)
• WAN Failover: Automatic switchover between mobile and Ethernet WAN
• Network Protocols: Static IP, DHCP, NAT, VLAN, IPv6, RIP, OSPF, BGP
• Firewall Features: Stateful firewall, port forwarding, DMZ, DoS prevention
• VPN Support: OpenVPN, IPsec, PPTP, L2TP, Stunnel, WireGuard, GRE, DMVPN, SSTP, ZeroTier

---

GNSS (Global Navigation Satellite System)

• Supported Systems: GPS, GLONASS, Galileo, BeiDou, QZSS
• Connector: 1 SMA connector for GNSS antenna
• GNSS Features: Geofencing, NMEA output, tracking, time synchronization

---

Interfaces & I/O

• RS-232 Port: DB9 female connector
• RS-485 Port: Industrial 6-pin connector
• Digital Inputs: 1
• Digital Outputs: 1 open collector
• USB 2.0 Port: 1 × Type-A for device connectivity and storage
• SIM Slots: 2 × external SIM slots (3FF size)

---

Hardware Specifications

• Processor: MIPS 24Kc, 580 MHz
• Memory: 128 MB DDR2 RAM
• Flash Storage: 16 MB NOR Flash
• Power Input: 9–30 V DC via 4-pin industrial connector
• Power Consumption: Typical < 7 W
• LED Indicators: Power, LAN/WAN, LTE signal, GNSS, Wi-Fi, status indicators

---

Mechanical & Environmental

• Housing: Aluminum and plastic, IP30-rated
• Mounting Options: DIN rail, wall mount
• Operating Temperature: −40 °C to +75 °C
• Storage Temperature: −40 °C to +85 °C
• Humidity: 10% to 90% (non-condensing)
• Dimensions (L × W × H): 110 mm × 50 mm × 100 mm
• Weight: ~287 grams

---

Software & Management

• Operating System: RutOS (based on OpenWRT)
• Management Interface: Web UI, SSH, CLI, SMS, SNMP, TR-069, JSON-RPC
• Remote Management System (RMS): Cloud-based Teltonika RMS platform
• Security Protocols: HTTPS, SSL, MAC filtering, IP whitelisting, VPN tunneling
• Automation & Scripting: Cron, custom scripts, event-based actions

---

Certifications & Compliance

• CE, RoHS, E-Mark, RCM, FCC, IC, PTCRB
• Automotive approvals such as ECE R10, R118
• EMC, surge and electrical safety standards compliant

---

Package Contents

• RUT955 Router
• 2 LTE antennas
• 2 Wi-Fi antennas
• 1 GNSS antenna
• I/O and RS-485 connector block
• Power supply adapter
• Ethernet cable
• SIM card adapter
• Quick Start Guide

---

Meta Description

Teltonika RUT955 is a rugged LTE Cat 4 industrial router with dual SIM, GNSS, 4G connectivity, RS-232/485, VPN support, and remote management via RutOS. Perfect for demanding IoT and M2M environments. Datasheet
