TP-Link 8-Port 10/100Mbps Desktop Switch 4-Port PoE+(TL-SF1008P)

KSh 15,000(KSh 17,400 Incl VAT)

8× 10/100 Mbps RJ45 ports
4× PoE+ ports transfer data and power on individual cables
Works with IEEE 802.3af/at compliant PDs
Supports PoE Power up to 30 W for each PoE port
Supports PoE Power up to 66 W for all PoE ports^*
Up to 250m data and power transmitting range under Extend Mode^**
Priority Mode ensures high priority of ports 1–2 to guarantee the quality of sensitive application
PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices
Fanless Design reduces power consumption and works silently in its location
Plug and play with no configuration required

SKU: TL-SF1008PCategory: Networking Infrastructure

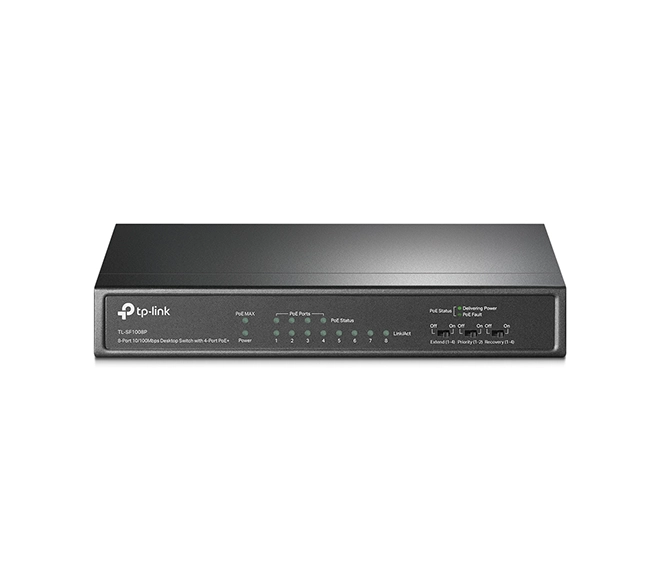

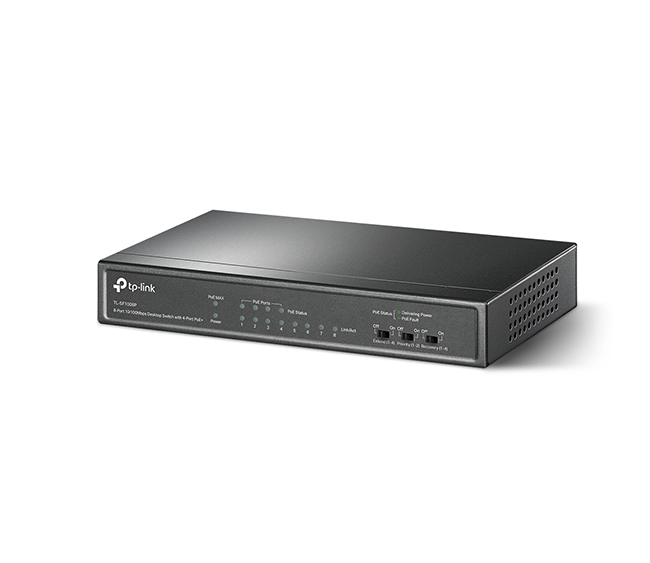

The TP-Link 8-Port 10/100Mbps Desktop Switch 4-Port PoE+(TL-SF1008P) is an 8-port 10/100 Mbps desktop switch with 4 Power over Ethernet (PoE+) ports. It is specifically designed for small and medium business networks and supports IEEE 802.3af/at standards, making it ideal for IP cameras, VoIP phones, and wireless access points. With plug-and-play functionality and intelligent power management, it ensures stable performance, even under full load, while maintaining silent fanless operation.

Hardware Specifications

Ports:
- 8 × 10/100 Mbps RJ45 ports
- Ports 1–4 support PoE+ (IEEE 802.3af/at)
- Ports 5–8 are standard data-only ports
PoE Power Budget:
- Up to 30 W per PoE port
- Total power budget: 66 W
Switching Capacity: 1.6 Gbps
Forwarding Rate: 1.19 Mpps
MAC Address Table: 2K entries
Switching Method: Store-and-forward
Flow Control:
- IEEE 802.3x full-duplex
- Backpressure for half-duplex

PoE Features

Power Supply Type: External power adapter
Input Voltage: 53–57 VDC
PoE Management Features:
- Priority Mode (ensures high-priority port power delivery)
- Extend Mode (data and power up to 250 meters at 10 Mbps)
- Intelligent power management (shuts off lower-priority ports if power budget exceeded)
- Auto Recovery (automatically restarts PoE ports when the powered device becomes unresponsive)

Power Consumption

Maximum: Approx. 66 W when PoE is fully utilized
Without PoE Load: Approx. 3.2 W

Physical & Environmental

Casing: Metal, fanless design
Mounting Options: Desktop or wall-mount
Dimensions: 171 × 98 × 27 mm
Operating Temperature: 0°C to 40°C
Storage Temperature: -40°C to 70°C
Operating Humidity: 10% to 90% RH non-condensing
Storage Humidity: 5% to 90% RH non-condensing
Certifications: CE, FCC, RoHS

Short Key Features

8 x 10/100 Mbps ports with 4 PoE+ (IEEE 802.3af/at)
Up to 30 W per PoE port, 66 W total budget
Plug-and-play, no configuration required
PoE Extend Mode supports up to 250 m transmission
Priority Mode ensures stable power to critical devices
Auto Recovery reboots non-responsive powered devices
Silent fanless design in durable metal housing
Ideal for IP surveillance, VoIP, and wireless networks

Meta Description

TP-Link 8-Port 10/100Mbps Desktop Switch 4-Port PoE+(TL-SF1008P)is an 8-port Fast Ethernet switch with 4 PoE+ ports, delivering 66 W total power, extendable range up to 250 m, intelligent PoE management, and a compact fanless design perfect for small business networking and IP surveillance setups. Datasheet
