NETSTAR® Gigabit Reverse PoE Switch (NS-8G-RP)

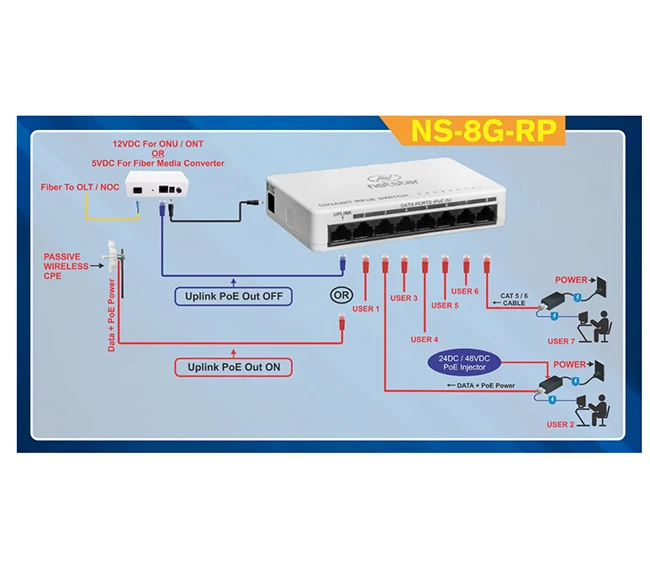

The NETSTAR® NS-8G-RP is a versatile unmanaged Gigabit Reverse PoE (RPoE) switch designed for Internet Service Providers (ISPs) to efficiently distribute internet connectivity in various network setups. Below are its detailed specifications and key features:

---

🔧 Technical Specifications

• Ethernet Ports:
  • Uplink Port: 1 × 10/100/1000Mbps (Gigabit) Uplink Port (Port 1)
    • Configurable via toggle slider for Data Uplink or Data + PoE Out
  • Downlink Ports: 7 × 10/100/1000Mbps (Gigabit) Reverse PoE Ports (Ports 2 to 8)
    • Supports Data + Power IN
• DC Output Jack: Selectable 5VDC or 12VDC output via toggle push button
• Port-Based Isolation: Enable/Disable via toggle push button
• Power Input: 18VDC to 48VDC through PoE Injector
• Protocols: CSMA/CD
• Transmission Method: Store and Forward
• MAC Address Table: 4K entries
• LED Indicators:
  • Green: Device On Stable
  • Yellow: Gigabit Link Active / Data Transmission
  • Red: 10/100 Link Active / Data Transmission
• Standards Compliance:
  • IEEE 802.3 (10BASE-T)
  • IEEE 802.3u (100BASE-TX)
  • IEEE 802.3ab (1000BASE-T)
  • IEEE 802.3x (Flow Control)
  • IEEE 802.3az (Energy Efficient Ethernet)
• Cable Specifications:
  • Data Lines: All 4 Pairs (Pins 1,2; 3,6; 4,5; 7,8)
  • Power Lines: +VDC: Pins 4,5; -VDC: Pins 7,8
• Operating Conditions:
  • Temperature: 0°C to 60°C (Operation), -20°C to 80°C (Storage)
  • Humidity: 20% to 95% (non-condensing)
• Power Consumption: 3 Watts
• Dimensions: 130 × 70 × 25 mm
• Weight: 0.15 kg

---

⚙️ Key Features

• Intelligent Power Management: The switch can be powered using reverse power from any of the seven downlink ports, eliminating the need for a separate power source.
• Auto-Negotiation: Each port automatically detects the connected device's speed (10/100/1000Mbps) and mode (half/full duplex), ensuring optimal performance.
• Non-Blocking Wire Speed: Ensures seamless forwarding and receiving of traffic without bottlenecks.
• Port-Based Isolation: Downlink ports are isolated from each other, preventing direct communication between clients and enhancing security.
• Surge Protection: Each port is equipped with surge protection to safeguard against voltage spikes.
• Cascading Capability: Supports cascading with other switches, allowing for expanded network coverage.
