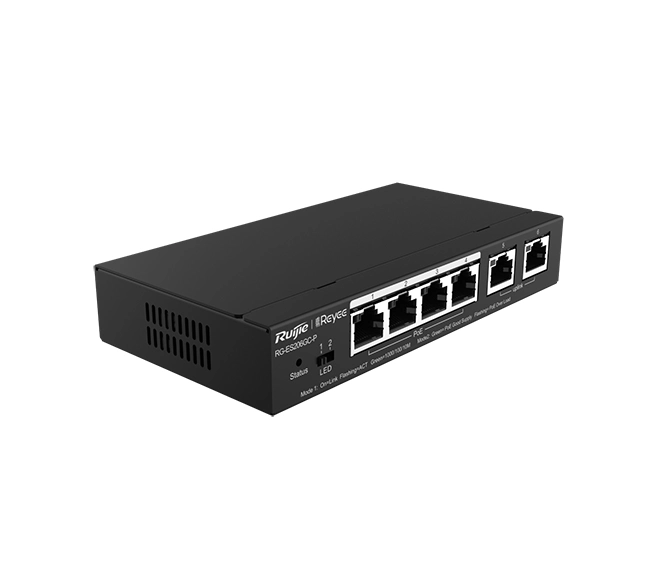

Ruijie RG-ES206GC-P, 6-Port Gigabit Smart Cloud Managed PoE Switch

The Ruijie RG-ES206GC-P is a 6-port Gigabit Layer 2 Smart PoE Switch, engineered to deliver power, performance, and cloud-based control for modern networks. Whether you're managing an IP surveillance setup or powering a small business, this switch ensures seamless connectivity and smart management – all in a compact, fanless form factor.

---

Ruijie RG-ES206GC-P

6-Port Gigabit Smart Cloud-Managed PoE Switch

---

🏢 Ideal For

• Small & Medium Businesses (SMBs)
• IP Surveillance Systems
• Retail, Clinics, Cafés, Education
• Remote Office Networks

---



⚙️ Key Features

• 6 × 10/100/1000 Mbps RJ45 Ports
  • Ports 1–4 support IEEE 802.3af/at PoE/PoE+
• PoE Budget: 54W Total
  • Up to 30W per PoE+ port
• Gigabit Switching Capacity: 12 Gbps
• MAC Table: 4K entries
• Packet Buffer: 1 Mbit
• Compact Metal Design: Fanless, silent, desktop-friendly
• Power Adapter Included: 54V / 1.1A

---

🌐 Smart Cloud Management

• Ruijie Cloud Management (Web + Mobile App)
• Zero-Touch Provisioning
• Remote Monitoring & Firmware Updates
• VLAN Configuration via Mobile App
• Loop Prevention & Auto Recovery

---

📸 Surveillance-Optimized

• Auto-recognition of IP Cameras & NVRs
• Extended PoE Range: Up to 250 meters
• Smart PoE Scheduling & Monitoring
• Port Isolation & Broadcast Storm Protection

---

🔁 Lifecycle Information

• 📅 End-of-Sale (Global): February 2024
• ✅ Recommended Replacement: RG-ES206GS-P
  • Includes SFP Uplink Port for fiber
  • Enhanced PoE performance

---

📐 Technical Specifications

Item	Specification
Ports	6 × Gigabit RJ45 (4 PoE/PoE+)
Switching Capacity	12 Gbps
Forwarding Rate	8.93 Mpps
PoE Budget	54W total
Power Supply	54V / 1.1A external adapter
Form Factor	Compact, Fanless Metal Case
Dimensions	150 × 85 × 26 mm
Operating Temp	0°C ~ 40°C
Weight	~0.35 kg

---

Datasheet (PDF)
