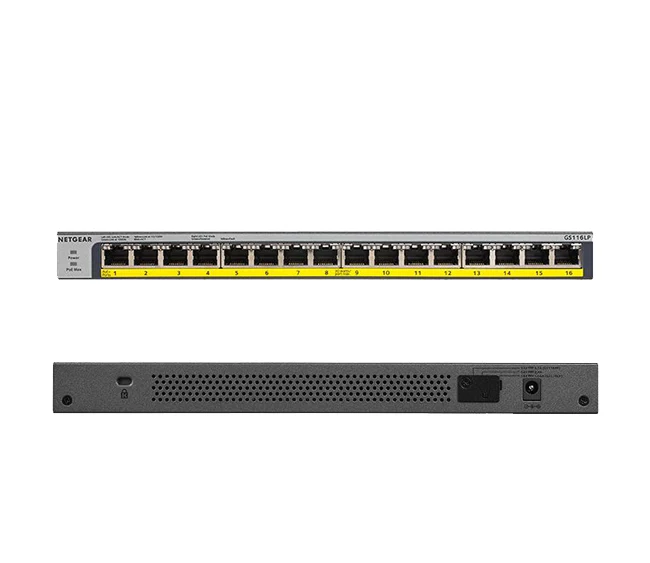

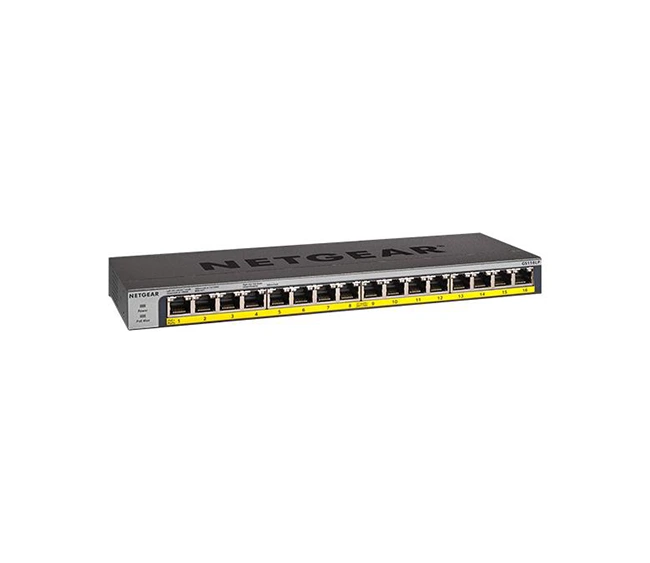

Netgear GS116LP-100EUS 16-Port PoE+ Gigabit Unmanaged Switch

The Netgear GS116LP-100EUS 16-Port PoE+ Gigabit Unmanaged Switch is an unmanaged 16-port Gigabit switch with PoE+ support on all ports, making it ideal for powering and connecting devices like IP cameras, VoIP phones, wireless access points, and IoT devices. It delivers up to 30W per port with a default 76W PoE power budget, which can be expanded up to 183W using optional higher-capacity power adapters. With its fanless design, rugged metal chassis, and plug-and-play operation, the GS116LP offers a silent, reliable solution for small to medium-sized networks.

---

Ports & Connectivity

• Total Ports: 16 × 10/100/1000 Mbps RJ-45 Gigabit Ethernet
• PoE Support: IEEE 802.3af (PoE) and IEEE 802.3at (PoE+)
• Max Power per Port: 30 W
• PoE Budget:
  • Default: 76 W (via included adapter)
  • Optional: 115 W, 155 W, or 183 W (with upgrade adapters)

---

Performance

• Switching Capacity: 32 Gbps non-blocking fabric
• Forwarding Rate: 23.8 Mpps
• MAC Address Table: 8,000 entries
• Packet Buffer Memory: 512 KB
• Jumbo Frame Support: Up to 9,720 bytes

---

Design & Build

• Enclosure: Durable fanless metal housing
• Cooling: Silent, no moving parts
• Mounting Options: Desktop, wall-mountable, or rack-mountable (kit included)
• LED Indicators: Power, Link/Activity, PoE status

---

Energy Efficiency

• Compliant with IEEE 802.3az (EEE) for reduced energy consumption
• Auto power-down on inactive ports
• Power saving on short cable runs

---

Power & Consumption

• Default Power Supply: 76 W external power adapter
• Maximum Power Consumption: ~80–185 W (depending on chosen adapter)

---

Physical Specifications

• Dimensions (W × D × H): 286 × 102 × 27 mm
• Weight: ~1.4 kg

---

Environmental Conditions

• Operating Temperature: 0°C to 40°C
• Storage Temperature: –20°C to 70°C
• Humidity: 10%–90% non-condensing
• Noise Level: 0 dBA (fanless silent operation)

---

Warranty & Support

• Warranty: Netgear Limited Lifetime Warranty
• Support: Lifetime Next Business Day (NBD) replacement (registration required)

---

Typical Use Cases

• Medium-density IP surveillance deployments (IP cameras, NVRs)
• VoIP phone systems for small to mid-sized offices
• Powering multiple wireless access points in hotels, schools, and enterprises
• Quiet environments like classrooms, retail shops, and conference rooms

---

Key Features

• 16 Gigabit Ethernet ports, all PoE+ capable
• Default 76W PoE budget, expandable up to 183W
• Silent, fanless operation in metal housing
• Plug-and-play setup with no configuration needed
• Energy-efficient with IEEE 802.3az support

---

Meta Description

Netgear GS116LP-100EUS 16-Port PoE+ Gigabit Unmanaged Switch with 76W PoE budget (expandable to 183W), 30W per port, fanless design, and plug-and-play reliability—ideal for IP cameras, access points, and VoIP phones. Datasheet
