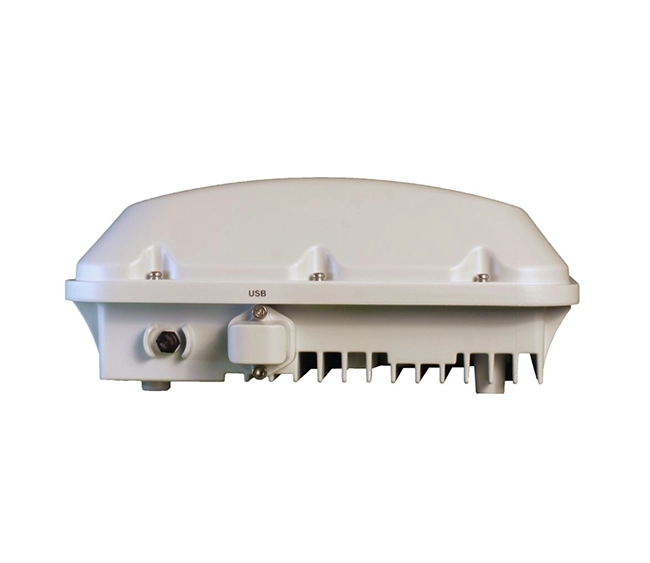

RUCKUS T750 Outdoor Access Point

The RUCKUS T750 Outdoor Access Point is a premium Wi-Fi 6 (802.11ax) outdoor access point engineered for ultra-high-density and high-capacity environments such as stadiums, large campuses, transit hubs, and smart city deployments. With 4x4:4 MU-MIMO, OFDMA, and RUCKUS’ BeamFlex+ adaptive antenna technology, the T750 delivers exceptional coverage, throughput, and user capacity. Its rugged IP67-rated enclosure ensures reliable performance in harsh outdoor conditions, while integrated IoT and management capabilities make it ideal for advanced enterprise and service provider networks.

Detailed Specifications

Wi-Fi Standards:

• IEEE 802.11a/b/g/n/ac/ax (Wi-Fi 6)
• Dual-band concurrent: 2.4 GHz & 5 GHz

Performance:

• Max Data Rate: Up to 3.548 Gbps (1,148 Mbps @ 2.4 GHz + 2,400 Mbps @ 5 GHz)
• Streams: 4x4:4 (both bands)
• OFDMA & MU-MIMO for high efficiency in dense user environments
• Client Capacity: Up to 1,024 concurrent clients

Antenna & RF:

• BeamFlex+ adaptive antennas with polarization diversity
• Integrated omnidirectional antennas
• Antenna Gain: 2.4 GHz: 3 dBi, 5 GHz: 6 dBi
• Channelization: 20/40/80 MHz

Interfaces:

• 1 × 2.5 GbE RJ-45 port with PoE++ (802.3bt)
• 1 × 1 GbE RJ-45 port (uplink or downlink)
• 1 × USB 2.0 port
• 1 × Reset button

Power:

• Power Input: PoE++ (802.3bt) or DC 48V input
• Power Consumption:
  • Typical: ~20W
  • Peak: ~25W

Security:

• WPA2, WPA3, WPA2/WPA3 Mixed Mode
• AES encryption
• Protected Management Frames
• Dynamic Pre-Shared Keys (DPSK)
• L2/L3/L4 ACLs

Management:

• Managed via RUCKUS SmartZone, ZoneDirector, Unleashed, or cloud management
• SNMP v1/v2c/v3
• Web-based GUI and CLI access

Physical:

• Dimensions: 370 mm × 370 mm × 152 mm
• Weight: 5.9 kg
• Mounting: Wall or pole mounting kits included

Environmental:

• Operating Temperature: -40°C to 65°C
• Humidity: 10%–95% non-condensing
• Weatherproofing: IP67-rated for dust and water resistance

Key Features

• Wi-Fi 6 4x4 MU-MIMO with up to 3.548 Gbps combined throughput
• Supports 1,024 clients for high-density outdoor deployments
• IP67-rated rugged design for extreme environments
• Dual Ethernet ports including multi-gig 2.5GbE
• BeamFlex+ antennas for optimal coverage and performance
• Integrated IoT support for future-ready smart city solutions

Meta Description

RUCKUS T750 Outdoor Access Point Wi-Fi 6 with 4x4 MU-MIMO, up to 3.548 Gbps, IP67 rugged design, multi-gig 2.5GbE port, and BeamFlex+ antennas for ultra-high-density outdoor networks. Datasheet
