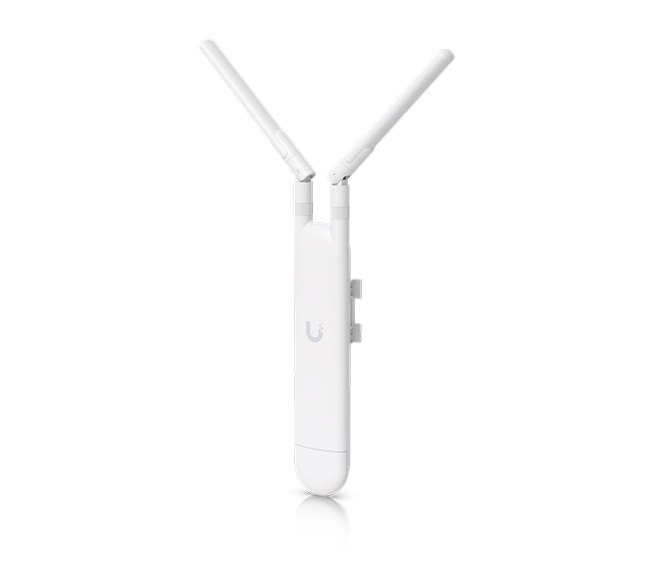

UniFi AC Mesh (UAP-AC-M)
KSh 45,000(KSh 52,200 Incl VAT)
- Wi-Fi 5 (802.11ac) – Dual-band with speeds up to 1167 Mbps.
- Mesh Capable – Supports wireless mesh networking.
- Outdoor-Ready – Weather-resistant (IPX4 rated).
- Flexible Mounting – Wall, pole, or fast-mount included.
- Dual Antennas – External, swappable omni antennas.
- PoE Powered – Supports 24V passive PoE and 802.3af.
- High Client Capacity – Handles 200+ concurrent users.
- UniFi Controller Managed – Centralized cloud/network management.
SKU: UAP-AC-MCategory: Networking Infrastructure
The UniFi UAP-AC-M is a compact, dual-band, indoor/outdoor Wi-Fi 5 access point designed for flexible deployments and mesh networking. It offers robust performance and versatility, making it suitable for various environments.
🔧 Wireless Specifications
- Wi-Fi Standard:
- 802.11 a/b/g/n/ac (Wi-Fi 5)
- Bands:
- 2.4 GHz: up to 300 Mbps
- 5 GHz: up to 867 Mbps
- Total aggregate throughput: 1167 Mbps
- MIMO Configuration:
- 2x2 MIMO on both 2.4 GHz and 5 GHz
- Range:
- Up to 183 meters (600 feet)
- Client Capacity:
- 200+ concurrent clients
📡 Hardware Features
- Antenna Configuration:
- 2 external dual-band omni antennas (included)
- Antenna gain:
- 2.4 GHz: 3 dBi
- 5 GHz: 4 dBi
- RP-SMA connectors for external antenna replacement or upgrades
- Mounting Options:
- Wall mount
- Pole mount
- Fast-mount (zip tie compatible)
- All mounting accessories included
- Dimensions:
- 353 x 46 x 34.4 mm (with antennas)
- Weight: 152 g (with antennas)
- Enclosure:
- Outdoor-rated, weather-resistant (IPX4)
⚡ Power and Networking
- Networking Interface:
- 1x 10/100/1000 Ethernet port
- Power Options:
- 24V Passive PoE (included adapter: 24V, 0.5A)
- 802.3af PoE Alternative A compatible
- Max Power Consumption:
- 8.5W
🔐 Software & Features
- Controller Software:
- Managed via UniFi Network Controller (cloud or local)
- Wireless Modes:
- Access Point
- Wireless Uplink (Mesh Point or Mesh AP)
- Advanced Features:
- VLAN Support (802.1Q)
- Guest Network Isolation
- Band Steering
- Zero Handoff Roaming
- Per-user Rate Limiting
- Airtime Fairness
- Fast Roaming (802.11r/k/v)
✅ Other Information
- Certifications:
- CE, FCC, IC
- Operating Temperature:
- -30 to 70°C (-22 to 158°F)
- Operating Humidity:
- 5 – 95% non-condensing
🧩 Ideal Use Cases
- Outdoor campuses
- Events and venues
- Mesh network extensions
- Temporary or mobile setups
