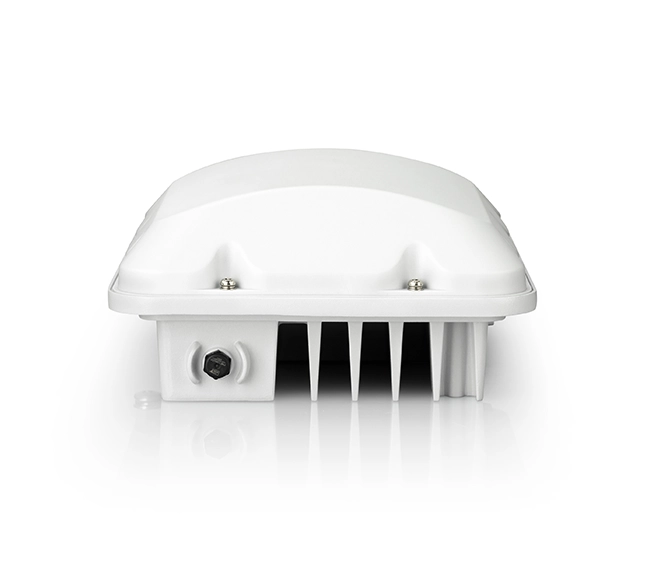

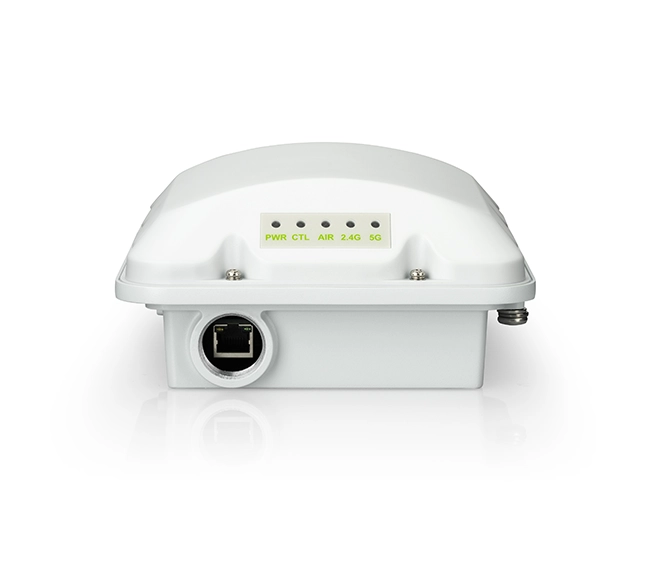

RUCKUS T350 Outdoor Access Point

The RUCKUS T350 Outdoor Access Point is a rugged, high-performance Wi-Fi 6 (802.11ax) outdoor access point designed to deliver reliable, high-capacity connectivity in challenging environments such as stadiums, transportation hubs, campuses, and public Wi-Fi hotspots. With IP67-rated weatherproofing, advanced BeamFlex+ adaptive antenna technology, and OFDMA/MU-MIMO capabilities, the T350 ensures seamless performance for high-density user environments. It supports flexible mounting options and offers integrated security features for enterprise-grade deployments.

Detailed Specifications

Wi-Fi Standards:

• IEEE 802.11a/b/g/n/ac/ax (Wi-Fi 6)
• Dual-band concurrent: 2.4 GHz & 5 GHz

Performance:

• Max Data Rate: Up to 1.774 Gbps (574 Mbps @ 2.4 GHz + 1200 Mbps @ 5 GHz)
• Streams: 2x2:2 (both bands)
• OFDMA & MU-MIMO for improved multi-user throughput
• Client Capacity: Up to 512 concurrent clients

Antenna & RF:

• BeamFlex+ adaptive antenna technology with polarization diversity
• Integrated omnidirectional antennas
• Antenna Gain: 2.4 GHz: 3 dBi, 5 GHz: 5 dBi
• Channelization: 20/40/80 MHz

Interfaces:

• 1 × 1 GbE RJ-45 port with PoE+ (802.3af/at)
• 1 × USB 2.0 port
• 1 × Reset button

Power:

• Power Input: PoE (802.3af/at)
• Power Consumption:
  • Typical: ~10.5W
  • Peak: ~12.6W

Security:

• WPA2, WPA3, WPA2/WPA3 Mixed Mode
• AES encryption
• Protected Management Frames
• Dynamic Pre-Shared Keys (DPSK)
• L2/L3/L4 ACLs

Management:

• Managed via RUCKUS SmartZone, ZoneDirector, Unleashed, or cloud management
• SNMP v1/v2c/v3
• Web-based GUI and CLI access

Physical:

• Dimensions: 210 mm × 210 mm × 90 mm
• Weight: 1.5 kg
• Mounting: Wall, pole, or ceiling mount kits available

Environmental:

• Operating Temperature: -40°C to 65°C
• Humidity: 10%–95% non-condensing
• Weatherproofing: IP67-rated for dust and water resistance

Key Features

• Wi-Fi 6 with 2x2 MU-MIMO and OFDMA for high-efficiency outdoor connectivity
• Up to 1.774 Gbps combined data rate
• BeamFlex+ adaptive antennas for enhanced signal quality
• IP67-rated enclosure for harsh outdoor conditions
• Supports up to 512 clients per access point
• Multiple management options: controller, cloud, or standalone
