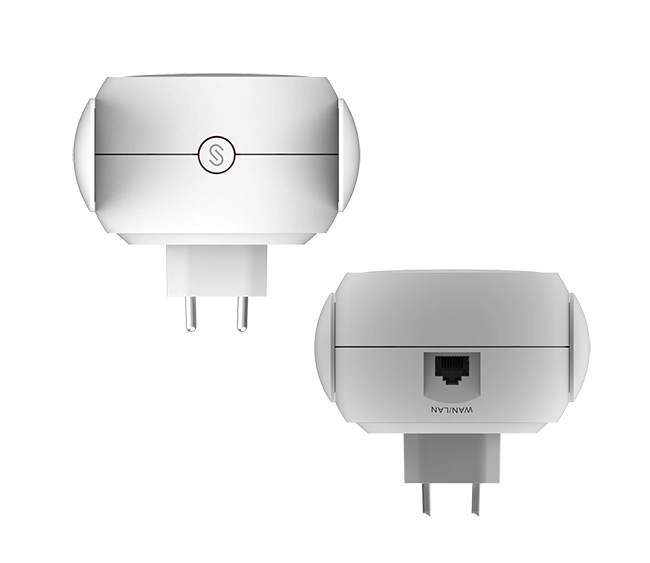

Ruijie RG-EW1200R 1200M Dual-band Mesh Wi-Fi Extender
KSh 6,500(KSh 7,540 Incl VAT)
- Dual-band AC1200 Wi-Fi: 300 Mbps (2.4 GHz) + 867 Mbps (5 GHz)
- 2× 4 dBi high-gain antennas for extended coverage
- Seamless Reyee Mesh support with one-click pairing
- 1× WAN/LAN Ethernet port for flexible wired connections
- Smart signal strength LED for optimal placement
- Supports up to 96 devices with MU-MIMO technology
- Multiple modes: Extender, Access Point (AP), WISP
- Cloud app management via Ruijie Reyee App
- Compact plug-in design for easy wall mounting
- Advanced security: WPA/WPA2/WPA3 encryption
SKU: RG-EW1200RCategory: Networking Infrastructure
Here are the detailed specifications for the Ruijie RG‑EW1200R dual-band AC1200 Mesh Wi‑Fi extender:
📶 Wireless Features
- Wi‑Fi Standard: Dual-band Wi‑Fi 5 (802.11ac/a/b/g/n)
- Speeds:
- 2.4 GHz: up to 300 Mbps
- 5 GHz: up to 867 Mbps (total AC1200)
- MIMO: 2×2 MU‑MIMO on both bands
- External Antennas: 2 × 4 dBi omnidirectional
- Channel Width: 2.4 GHz: 20/40 MHz; 5 GHz: 20/40/80 MHz
🔌 Network Interfaces
- Ethernet Port: 1 × 10/100 Mbps WAN/LAN (switchable)
👥 Capacity & Usage
- Recommended Users: ~24
- Max Users: up to 96
⚙️ Hardware & Power
- Power Supply: 100–240 V AC input, 0.5 A
- Power Consumption: ≤ 15 W
🛠️ Features & Modes
- Mesh Support: Reyee Mesh with one‑touch pairing; WPS button doubles for Mesh/repeater/Mesh pairing
- Operational Modes: Extender (repeater), AP, WISP, WPS
- Indicators: Three-bar signal strength indicator for placement
🔐 Software Features
- Cloud Management: Through Reyee Router App (remote setup and control)
- Wireless Features: MU‑MIMO, band steering, roaming, SSID hiding, guest Wi‑Fi, WPS, QoS (WMM)
- Security: WPA/WPA2/WPA3, VLAN, MAC cloning
📦 Physical & Environmental Specs
- Dimensions: 128 × 102 × 60 mm (excluding antennas)
- Weight: ~0.25 kg
- Operating Temperature: –10 °C to +45 °C
- Humidity: 5–95% non-condensing
- Certifications: CE, RoHS
- Warranty: 3 years (region-dependent)
✅ Summary
The RG‑EW1200R is a versatile dual-band AC1200 mesh extender featuring high-speed Wi‑Fi, seamless Reyee mesh compatibility, signal-indicator for optimal placement, and robust app-driven management. It’s ideal for extending Wi‑Fi coverage in homes, SOHOs, and small offices with a compact plug-and-play design. DatasheetRelated Products
