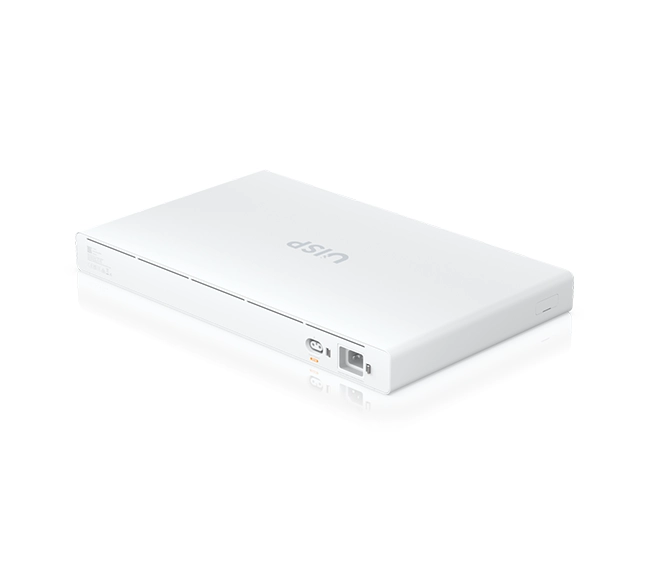

Ubiquiti UISP Switch Pro Managed 2.5 GbE PoE
KSh 40,500(KSh 46,980 Incl VAT)
- Compact 8-port 2.5 GbE PoE switch with 2×10 GbE uplinks
- 160 W total PoE capacity for high-power network devices
- High-performance hardware: quad-core CPU, 2 GB RAM, 100 Gbps switching
- Silent, fanless design with flexible mounting options
- Full UISP integration with advanced Layer 2 network controls
SKU: UISP-S-ProCategory: Networking Infrastructure
The Ubiquiti UISP Switch Pro Managed 2.5 GbE PoE is a powerful Layer 2 managed switch featuring 8× 2.5 GbE passive PoE ports and 2× 10 GbE SFP+ uplinks, making it ideal for high-speed ISP and enterprise networks. With a 160 W PoE budget, fanless design, quad-core ARM CPU, and full UISP platform integration, it delivers robust performance and silent operation for compact or edge deployments.
🔧 Detailed Specifications – Ubiquiti UISP Switch Pro (UISP‑S‑Pro)
⚙️ Mechanical & Environmental
- Dimensions: 210 × 170 × 43.7 mm
- Weight: ~1.8 kg
- Enclosure: Rugged powder-coated steel with aluminum and ABS accents
- Operating Temp: –10 °C to +50 °C
- Humidity: 5–95% non-condensing
- ESD/EMP Protection: Air ±15 kV, Contact ±8 kV
- Fanless design, suitable for compact deployment environments
🧠 Hardware Performance
- CPU: Quad-core ARM Cortex‑A55 @ ~1.4 GHz
- Memory: 2 GB DDR4
- Storage: 512 MB NAND flash
- Switching Capacity: 100 Gbps non-blocking
- Forwarding Rate: ~74 Mpps
🌐 Networking Interfaces
- Ports:
- 8 × 2.5 GbE RJ45 with passive 28 V PoE output (pair type dependent)
- 2 × 10 GbE SFP+ uplinks
- Management: In-band Ethernet control; Bluetooth BLE provisioning available
⚡ UISP Switch Pro Managed 2.5 GbE PoE Power & PoE Features
- Power Input: External 27 V DC adapter (included) with redundant DC input support
- Total Power Draw: Approx. 30 W (excluding PoE output)
- PoE Budget:
- Up to 30 W per RJ45 port
- Total budget: 160 W (8 ports at 2.5 GbE)
- Supports both 2-pair and 4-pair passive PoE
🛠 Software & Management
- Fully managed via UISP platform, including GUI and mobile setup
- Comprehensive Layer 2 feature set: VLANs, port isolation, speed limiting, DHCP snooping
- LED indicators per port for link speed, PoE status, and activity
- VLAN tagging, QoS shaping, and LLDP support
✅ Meta Description
The Ubiquiti UISP Switch Pro Managed 2.5 GbE PoE is a silent, high-performance managed PoE switch with eight 2.5 GbE PoE ports, two 10 GbE uplinks, and a 160 W budget—perfect for scalable enterprise and ISP deployments. DatasheetRelated Products
