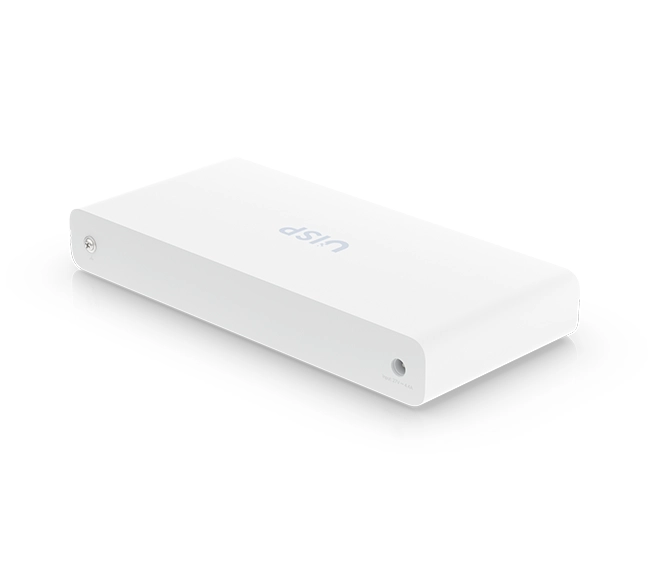

Ubiquiti UISP Switch 8 Port Gigabit PoE

The Ubiquiti UISP Switch 8 Port Gigabit PoE is a high-performance 8-port switch designed for efficient and scalable ISP and WISP deployments. It features 8× passive 27V PoE RJ45 ports, 1× 1G SFP uplink, a compact fanless design, and a 110W total PoE budget. UISP Switch 8 Port Gigabit PoE is ideal for MicroPOP environments, the UISP Switch is managed via the UISP platform or local web UI, offering advanced Layer 2 features like port isolation and DHCP snooping for streamlined network control.

Detailed Specifications – Ubiquiti UISP Switch (UISP‑S)

---

⚙️ Mechanical & Environment

• Dimensions: 210.4 × 95 × 29 mm
• Weight: 610 g
• Enclosure: Rugged polycarbonate
• Operating Temperature: –10 °C to +50 °C
• Humidity: 5–95% non‑condensing
• ESD/EMP Protection: Air ± 15 kV, Contact ± 8 kV
• Certifications: CE, FCC, IC (NDAA compliant)

---

🔧 Hardware Performance

• Switching Capacity: 9 Gbps non-blocking, 18 Gbps switching
• Forwarding Rate: 13.392 Mpps

---

🌐 Ubiquiti UISP Switch 8 Port Gigabit PoE Networking Interfaces

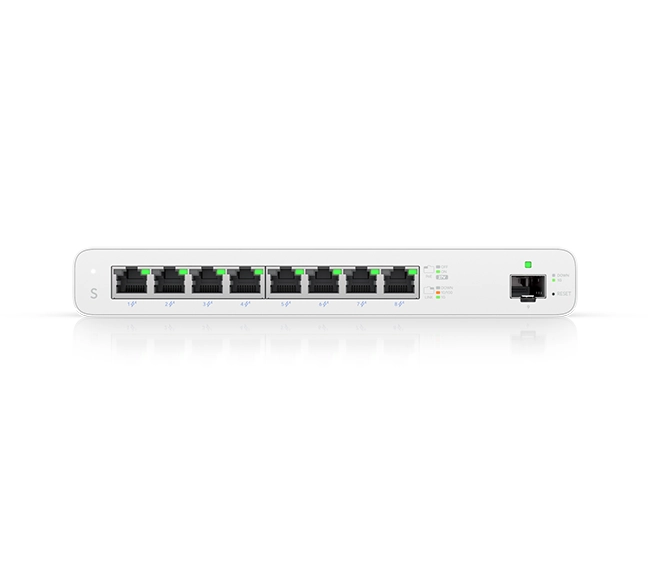

• Ports: 8× Gigabit RJ45 + 1× 1G SFP uplink
• Management: In-band Ethernet, Bluetooth BLE for app setup

---

⚡ Power & PoE

• Power Input: External 27 V DC, 4.4 A adapter (included)
  • Supported range: 24–28 V DC
• PoE Output:
  • Passive 27 V PoE on all 8 ports (2‑pair or 4‑pair)
  • Power budget: 110 W total
  • Up to 30 W per port

---

🛠 Management Features

• Firmware Management: UISP App 1.4.0+
• Layer 2 Functions: Port isolation, speed control, DHCP snooping
• Local Web Interface: Available for units on firmware ≥ v1.6.0

---

🔋 Power & Efficiency

• Max Consumption: 8 W (excluding PoE output)

✅ Meta Description

The Ubiquiti UISP Switch 8 Port Gigabit PoE is a compact 8-port Gigabit PoE switch with 110 W total output, 1G SFP uplink, fanless design, Bluetooth setup, and advanced Layer 2 features—ideal for MicroPoP and WISP deployments. Datasheet
