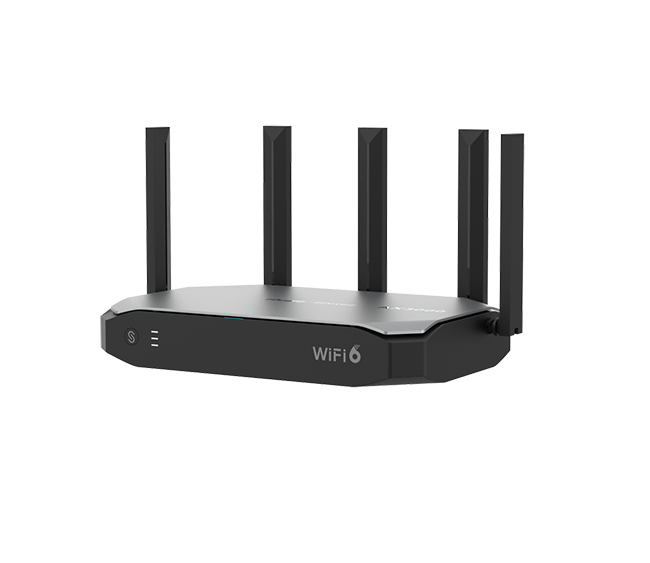

Ruijie RG-EG105GW-X Wi-Fi 6 AX3000 High-performance All-in-One Wireless Router

Here are the detailed specifications for the RG‑EG105GW‑X Wi‑Fi 6 AX3000 all‑in‑one wireless VPN router from Ruijie:

---

📶 Wireless & Antennas

• Dual-band Wi‑Fi 6 (802.11ax) with legacy support (ac/n/a/b/g)
• Max theoretical throughput: 2.976 Gbps (574 Mbps @2.4 GHz + 2.402 Gbps @5 GHz)
• 5 external omnidirectional antennas (5 dBi each)
• MIMO: 2×2 spatial streams on both bands; supports OFDMA & 1024-QAM
• Max Tx power: up to 26 dBm (~400 mW), depending on region
• Receiver sensitivity: down to –91 dBm (2.4 GHz) and –49 dBm (5 GHz)

---

🖧 Ethernet & Interfaces

• 5 × Gigabit RJ-45 ports: 1 fixed WAN, 1 fixed LAN, and 3 LAN/WAN switchable (up to 4-WAN setup)
• 1 × USB 3.0 port

---

🧠 Hardware & Performance

• CPU: Dual-core 1.3 GHz
• RAM: 512 MB DDRIII; Flash: 128 MB
• Recommended routing throughput: ~1 Gbps; VPN raw throughput up to 400 Mbps (L2TP)
• Max concurrent wireless clients: 110 (recommend 80); combined LAN+Wi-Fi: up to 180 (recommended 150)

---

🔒 Networking, VPN & Security

• Multi-WAN: Load balancing and failover among up to 4 WAN links
• VPN support: IPSec, OpenVPN, L2TP, PPTP
• VPN performance: IPSec ~100 Mbps, L2TP ~400 Mbps, PPTP unspecified but supported
• Firewall with ACLs, DoS protection, port scan defense, and more
• VLAN (up to 16), smart flow/QoS, app/web filtering, captive portal with vouchers/QR/SMS

---

☁️ Cloud & Mesh Management

• Cloud-managed via Ruijie Cloud & Reyee App; includes Reyee Mesh (one-touch setup)
• Device management: as gateway, up to 32 APs/NBS devices + 128 switches

---

🔌 Physical & Power

• Dimensions without antennas: 283 × 172 × 46 mm; weight ~1.2–2 kg
• Power: internal AC adapter, 100–240 V AC; max power consumption ~20 W
• Fanless with surge protection (~±2 kV on ports); operating temp 0–40 °C, humidity 5–95 %
• Certifications: CE, RoHS, UKCA, EAC; MTBF >400,000 hours

---

📦 Package & Warranty

• In box: router, power cord, manual, warranty card
• Package size: ~418×368×65 mm; 1.71 kg
• Warranty: 3 years

---

✅ Summary

The RG‑EG105GW‑X is a top-tier SOHO/business-grade Wi‑Fi 6 AX3000 wireless VPN router featuring robust performance (1.3 GHz CPU, dual-band MU‑MIMO, OFDMA), flexible multi-WAN, strong VPN and security features, cloud and mesh management, and high client capacity—all in a compact, fanless desktop form. Ideal for small offices, retail, or hospitality deployments. Datasheet
