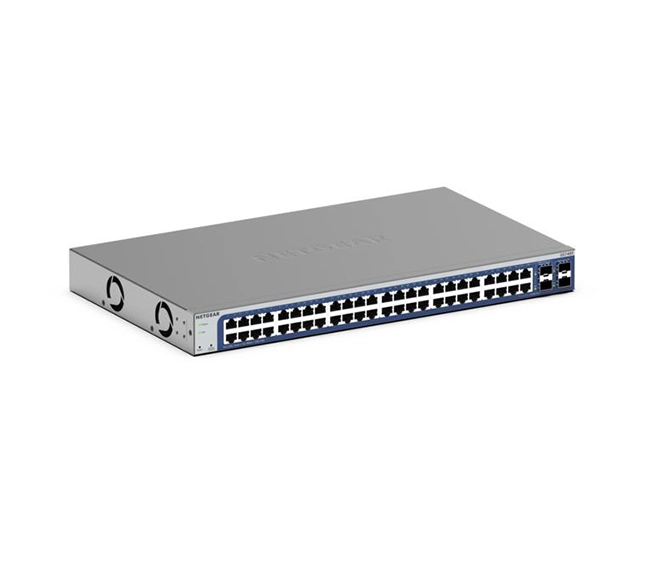

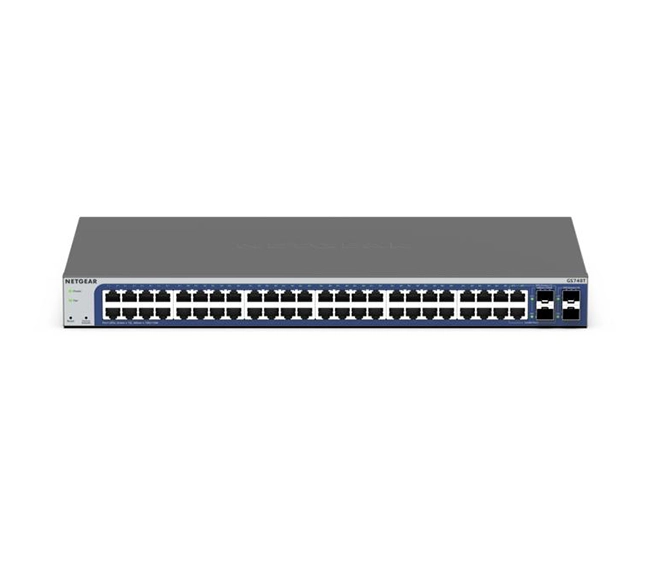

Netgear GS748T-600UKS 48-Port Gigabit Smart Managed Pro Switch

The Netgear GS748T-600UKS 48-Port Gigabit Smart Managed Pro Switch is part of the Smart Managed Pro switch series, offering enterprise-class features at an SMB-friendly price. With 48 Gigabit Ethernet ports and 4 SFP uplink options (2 dedicated 1G SFP + 2 combo SFP/RJ-45), it delivers the scalability and flexibility required for growing networks. Advanced Layer 2 and limited Layer 3 features, VLANs, QoS, link aggregation, and security functions make it ideal for business networks, workgroups, and edge aggregation.

---

Ports & Connectivity

• Total Ports: 48 × 10/100/1000 Mbps RJ-45 Gigabit Ethernet ports
• Uplink Ports:
  • 2 × dedicated 1 GbE SFP (fiber or copper transceivers supported)
  • 2 × combo 1 GbE SFP/RJ-45 (shared – either SFP or copper, not both at once)
• Port Features:
  • Auto MDI/MDIX (no crossover cables needed)
  • Auto-negotiation for speed and duplex
• Supported Standards:
  • IEEE 802.3i (10BASE-T)
  • IEEE 802.3u (100BASE-TX)
  • IEEE 802.3ab (1000BASE-T)
  • IEEE 802.3z (Gigabit Ethernet over fiber)
  • IEEE 802.3x (Full-duplex Flow Control)
  • IEEE 802.1Q (VLAN tagging)
  • IEEE 802.1p (Traffic prioritization)
  • IEEE 802.1ad (Link aggregation, LACP)
  • IEEE 802.1D/w/s (Spanning Tree Protocols)

---

Performance

• Switching Capacity: 100 Gbps non-blocking
• Forwarding Rate: ~74 Mpps (64-byte packets)
• MAC Address Table Size: 16,000 entries
• Packet Buffer Memory: 1 MB
• Latency (1000 Mbps, 64-byte frame): <4 µs
• Jumbo Frame Support: Up to 9 KB

---

Management & Security

• Management Features:
  • Web-based management (GUI)
  • SNMP v1, v2c, v3 support
  • RMON groups 1, 2, 3, 9
  • Dual firmware images
  • Smart Control Center (SCC) utility
• Security Features:
  • 802.1x port-based authentication
  • ACLs (Access Control Lists)
  • MAC lockdown, filtering, and VLAN-based security
• Layer 2/Layer 3 Features:
  • VLANs (up to 256 VLANs)
  • QoS with prioritization (IEEE 802.1p/DSCP)
  • IGMP Snooping v1/v2/v3
  • Static routing (limited L3 support)

---

Hardware & Build

• Cooling: Quiet smart fan design (temperature- and load-based speed control)
• Housing: Durable metal enclosure, rack-mountable
• Mounting Options:
  • Standard 19” rack-mount kit included
  • Desktop deployment (less common at this scale)
• LED Indicators: Power, Port Link/Activity/Speed, Fan status

---

Power & Energy Efficiency

• Power Supply: Internal power supply unit (PSU)
• Maximum Power Consumption: ~48 W
• Energy Efficiency:
  • IEEE 802.3az Energy Efficient Ethernet (EEE) support
  • Auto power-down on inactive ports
  • Dynamic adjustment based on cable length

---

Physical Specifications

• Dimensions (W × D × H): 440 × 257 × 43 mm (1U rack height)
• Weight: ~3.9 kg

---

Environmental Conditions

• Operating Temperature: 0°C to 50°C
• Storage Temperature: –20°C to 70°C
• Humidity: 10–90% non-condensing
• Noise Level: Low-noise fan-based cooling

---

Warranty & Support

• Hardware Warranty: Netgear Limited Lifetime Warranty (region-dependent)
• Support:
  • Lifetime 24/7 chat support
  • 90 days phone support

---

Typical Use Cases

• High-density office LAN connectivity (48 devices direct)
• Aggregation switch in SMB networks
• Classroom, lab, or training centers needing wired reliability
• Edge switch connecting access points, IP cameras, printers, and workstations
• Growing businesses needing VLAN segmentation and QoS traffic shaping

---

Key Features

• 48 × Gigabit Ethernet ports with 4 SFP uplink options (2 dedicated + 2 combo)
• 100 Gbps switching capacity with low-latency performance
• VLAN, QoS, IGMP snooping, link aggregation, and static routing features
• Smart fan cooling with low noise and efficient power consumption
• Rack-mountable with enterprise-grade durability and lifetime warranty

---
