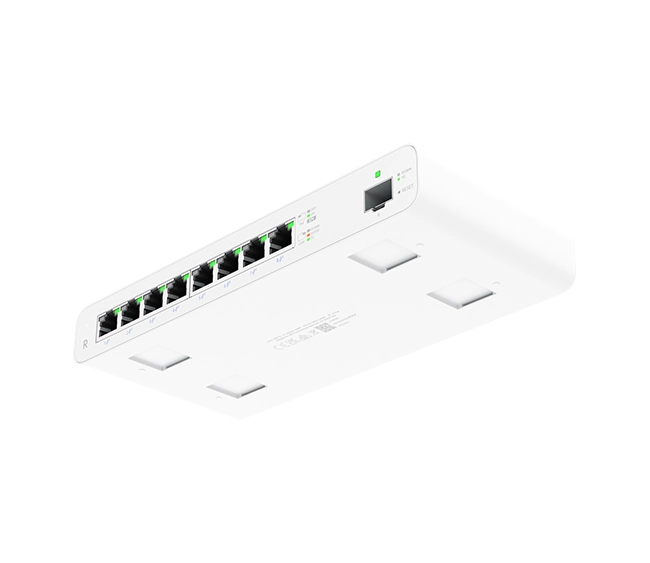

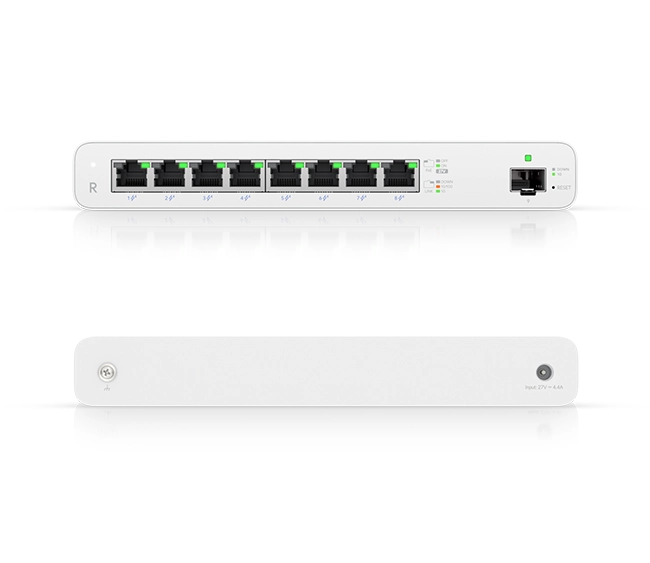

Ubiquiti UISP Router 8 Port Gigabit PoE

The Ubiquiti UISP Router 8 Port Gigabit PoE is a compact, fanless 8-port Gigabit PoE router built for WISPs and edge deployments. Featuring 1× SFP uplink, a dual-core MIPS processor, 512 MB RAM, and a 110 W PoE budget, it ensures seamless device powering and management. With Bluetooth app setup and in-band control, it offers efficient routing and simplicity in network infrastructure.

Detailed Specifications for Ubiquiti UISP Router 8 Port Gigabit PoE (UISP‑R)

---

🛠 Mechanical & Environmental

• Dimensions: 210.4 × 95 × 29 mm
• Weight: 600 g
• Enclosure: Durable polycarbonate, desktop or wall-mountable
• Operating Conditions: –10 °C to +50 °C, 5–95% non‑condensing humidity
• ESD/EMP Protection: Air ±15 kV, Contact ±8 kV
• Certifications: CE, FCC, IC; NDAA‑compliant

---

🧠 Hardware & Performance

• Processor: Dual-core MIPS1004Kc @ 880 MHz
• Memory: 512 MB DDR3
• Storage: 512 MB NAND flash
• Bluetooth: BLE for setup via UISP app

---

🔌 UISP Router 8 Port Gigabit PoE Networking & Ports

• LAN Ports: 8 × Gigabit RJ45
• Uplink: 1 × Gigabit SFP
• Management: In-band Ethernet, Bluetooth
• PoE Output: 27 V passive PoE per port (2-pair or 4-pair); up to 30 W per port; total budget ~110 W

---

⚡ Power & Protection

• Power Input: External AC/DC adapter (27 V DC, 4.4 A included)
• Supported Range: 24–28 V DC
• Max Power Draw: ~10 W (excluding PoE output)
• PoE Budget: 110 W total capacity, 15–30 W per port

---

💻 Software & Management

• UISP Application: Compatible with version 1.4.0 and newer
• Functions: Auto device discovery, traffic shaping, firewall, OSPF support, remote management
• Interface: Web-based GUI with Bluetooth mobile setup

✅ Meta Description

The Ubiquiti UISP Router 8 Port Gigabit PoE is a fanless, 8‑port Gigabit PoE router with 1 Gbps SFP uplink, 110 W PoE budget, and Bluetooth setup—tailored for efficient WISP and MicroPoP deployments. Datasheet
