MikroTik CubeG-5ac60ay-SA (CubeSA 60Pro ac)

KSh 25,500(KSh 29,580 Incl VAT)

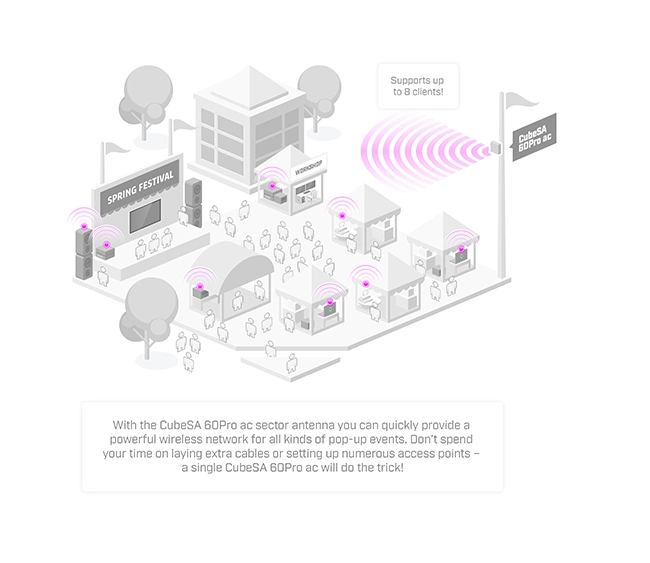

Sector coverage for 60 GHz PtMP deployment (up to 8–10 clients)
High-throughput 60 GHz connectivity with low interference
Automatic failover to 5 GHz ensures always-on connectivity
Pre-installed RouterOS with advanced routing and management features
Integrated GPS for time and frequency synchronization
Excellent thermal and mechanical stability with passive cooling
Compact, durable, and visually discreet design

SKU: CubeG-5ac60ay-SACategory: Networking Infrastructure

The MikroTik CubeG-5ac60ay-SA, also known as the CubeSA 60Pro ac, is a powerful 60 GHz sector access point designed for short-range, high-speed point-to-multipoint (PtMP) communication. With support for the 802.11ay standard and integrated 5 GHz backup, it ensures robust connectivity even in challenging weather conditions. The device is ideal for urban broadband distribution, smart city applications, and dense campus setups.

General Specifications

Product Code: CubeG-5ac60ay-SA
CPU: IPQ-4019 (Quad-core ARM Cortex-A7)
CPU Frequency: Auto-scaled, nominal 716 MHz
Architecture: ARM 32-bit
RAM: 256 MB
Storage: 64 MB NAND Flash
RouterOS License Level: 4
Operating System: RouterOS (pre-installed)
MTBF: Approximately 200,000 hours at 25°C
Dimensions: 115 x 211 x 90 mm
Operating Temperature: -40°C to +70°C
Ingress Protection: IP54 (dust and splash resistant)

Wireless Capabilities

60 GHz Wireless Standard: 802.11ay (backward compatible with 802.11ad)
60 GHz Antenna Gain: Integrated, with sector coverage (~60° beamwidth)
Maximum 60 GHz EIRP: Up to 40 dBm
5 GHz Wireless Standard: 802.11a/n/ac
5 GHz Antenna Gain: 11.5 dBi
5 GHz Beamwidth: 35° (for failover)
Wireless Chipsets:
- 60 GHz: QCA6438
- 5 GHz: IPQ4019
Redundancy: Automatic fallback from 60 GHz to 5 GHz during signal loss or interference

Networking & Ports

Ethernet Port: 1 x 10/100/1000 Mbps (Gigabit Ethernet)
Supported Protocols: IPv4, IPv6, VLAN, MPLS, OSPF, BGP, VPN, Firewall, DHCP, DNS
GPS Module: MT3337V (for precise synchronization in multi-sector deployments)

Power

Power Input:
- PoE-in: 802.3af/at compliant
- Voltage Range: 18 V to 48 V
Power Consumption: Maximum 13 W
Cooling: Passive (fanless)

Mounting & Physical

Mounting Options: Pole and wall mounting hardware included
Design: Weather-resistant outdoor enclosure with reinforced base
Color: White enclosure with integrated heat sink

Ideal Use Cases

High-speed urban wireless access in clean 60 GHz spectrum
Smart city deployments and IoT gateway clusters
Multi-client video surveillance backhaul
Campus or event broadband distribution
WISP sector base station with gigabit speeds

Meta Description: MikroTik CubeG-5ac60ay-SA is a 60 GHz + 5 GHz sector access point with 60° coverage, GPS sync, automatic 5 GHz failover, and IP54 rating—ideal for high-speed point-to-multipoint wireless deployments in dense or interference-prone environments. Datasheet
