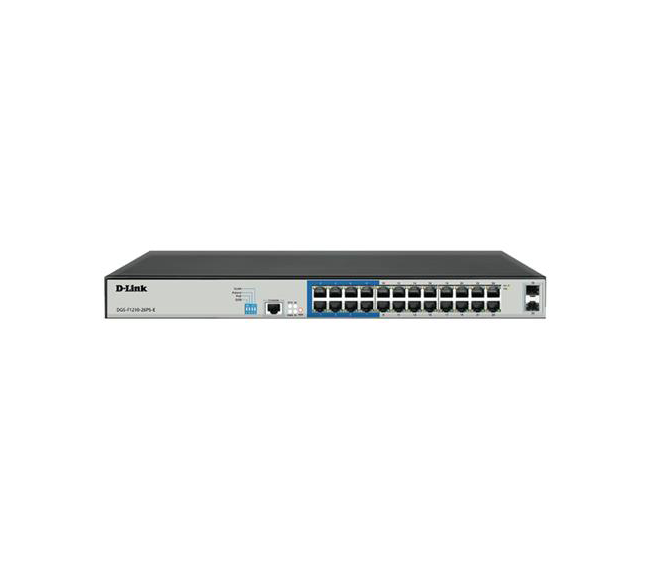

D-Link 26-Port Gigabit Smart Managed PoE+ Switch (DGS-F1210-26PS-E)
KSh 38,000(KSh 44,080 Incl VAT)
The D-Link DGS-F1210-26PS-E is a 24 port Managed Gigabit Switch with 24 10/100/1000 Mbps PoE ports, 2 Gigabit SFP uplink ports. This Switch enables users to easily connect and supply power to PoE-capable
devices such as wireless Access Points (APs), IP cameras.
– 24x 10/10O/1000 Mbps PoE ports
– 2x Gigabit SFP Ports
– 250 W available for PoE
– Maximum distance of 250m on PoE
– IEEE 802.3af/at Power over Ethernet
– 1U high – rack mountable
SKU: DGS-F1210-26PS-ECategory: Networking Infrastructure
Here's a detailed overview of the D-Link DGS-F1210-26PS-E 26-Port Gigabit Smart Managed PoE+ Switch:
Datasheet
📘 D-Link DGS-F1210-26PS-E – 26-Port Gigabit Smart Managed PoE+ Switch
🔌 Hardware Overview
- Ports:
- 24 × 10/100/1000 Mbps PoE+ RJ45 ports
- 2 × Gigabit SFP uplink ports
- Switching Capacity: 52 Gbps
- Forwarding Rate: 38.7 Mpps
- MAC Address Table: 8K entries
- PoE Standards: IEEE 802.3af/at
- PoE Budget: Up to 370W total, 30W max per port
- Extended PoE Range: Up to 250 meters on ports 1–8 with Extend mode enabled
- Lightning Protection: 6kV surge protection
⚙️ Software & Management Features
- Management Interfaces:
- Web-based GUI
- Command Line Interface (CLI) via Telnet/SSH
- SNMP v1/v2c/v3
- VLAN Support:
- 802.1Q VLAN
- MAC VLAN
- Voice VLAN
- Supports up to 4K VLANs
- Quality of Service (QoS):
- 8 queues per port
- 802.1p CoS, DSCP, SP, WRR, WFQ scheduling
- Security Features:
- Access Control Lists (ACLs)
- Port Security
- 802.1X Authentication
- IP-MAC-Port Binding
- DoS Protection
- DHCP Snooping
- SSL, SSH, HTTPS support
- Layer 2 Features:
- Spanning Tree Protocol (STP), Rapid STP (RSTP), Multiple STP (MSTP)
- Link Aggregation (Static and LACP)
- IGMP Snooping v1/v2
- Loopback Detection
- Port Mirroring
- Storm Control (Broadcast/Multicast/Unknown Unicast)
- IPv6 Support:
- IPv6 Ping, Traceroute, Telnet, SSH
- IPv6 SNMP, LLDP
- IPv6 DHCP Client
🌿 Energy Efficiency
- Energy-Efficient Ethernet (EEE): Compliant with IEEE 802.3az
- Power Saving Features:
- Link status detection
- LED shut-off
- Port shut-off
- System hibernation
- Time-Based PoE: Schedule PoE power delivery
📏 Physical & Environmental Specifications
- Dimensions: 440 × 180 × 44 mm
- Weight: 3.0 kg
- Operating Temperature: 0°C to 40°C
- Storage Temperature: -20°C to 70°C
- Operating Humidity: 10% to 90% RH (non-condensing)
- Storage Humidity: 10% to 95% RH
- Power Input: 100-240 VAC, 50-60 Hz
- Maximum Power Consumption: 370W
📦 Package Contents
- DGS-F1210-26PS-E Switch
- Power Cord
- Rack Mount Kit
- User Manual
