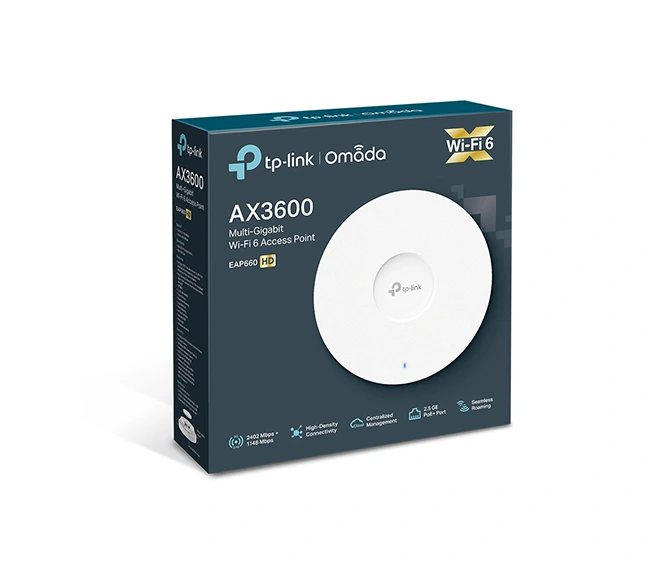

TP-Link AX3600 Wireless Dual Band Multi-Gigabit Ceiling Mount AP - EAP660 HD
KSh 11,000(KSh 12,760 Incl VAT)
- Ultra-Fast Wi-Fi 6 Speeds: Simultaneous 1148 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz totals 3550 Mbps Wi-Fi speeds.
- High-Density Connectivity: 4× increased capacity to connect more devices simultaneously.
- Integrated into Omada SDN: Zero-Touch Provisioning (ZTP), Centralized Cloud Management, and Intelligent Monitoring.
- Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
- 2.5G Port: A 2.5 Gbps Ethernet port boosts total internet throughput.
- Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations.
- PoE+ Support: Supports Power over Ethernet (802.3at) for convenient deployment and installation.
- Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.
SKU: TL-EAP660 HDCategory: Networking Infrastructure
The TP-Link AX3600 Wireless Dual Band Multi-Gigabit Ceiling Mount AP - EAP660 HD is a high-density, enterprise-grade WiFi 6 access point designed for environments with heavy client loads such as offices, hotels, shopping malls, and educational institutions. Offering ultra-fast AX3600 speeds, advanced OFDMA and MU-MIMO technologies, and Omada SDN cloud management, it ensures seamless connectivity and optimal performance even in the most demanding networks.
Detailed Specifications
Wi-Fi Standards:- IEEE 802.11ax/ac/n/g/b/a
- Dual-band AX3600 WiFi 6
- 2.4 GHz: Up to 1148 Mbps
- 5 GHz: Up to 2402 Mbps
- Combined: Up to 3550 Mbps
- Simultaneous 2.4 GHz and 5 GHz operation
- 4 internal omnidirectional high-gain antennas for optimal ceiling coverage
- Access Point Mode
- 1× 2.5 Gigabit Ethernet Port (802.3at PoE+)
- WiFi 6 with OFDMA and MU-MIMO for improved multi-user performance
- Beamforming for stronger, targeted signal delivery
- Band steering to direct devices to the optimal band
- Load balancing for stable performance under high client density
- WPA/WPA2/WPA3-Enterprise encryption
- Captive portal with customizable guest authentication
- SSID to VLAN mapping
- MAC filtering and access control
- Omada SDN cloud and local controller support
- Omada mobile app for remote management
- Supports up to 16 SSIDs (8 per band)
- Traffic shaping and rate limiting
- 802.3at PoE+ for flexible deployment
- Optional DC power adapter (sold separately)

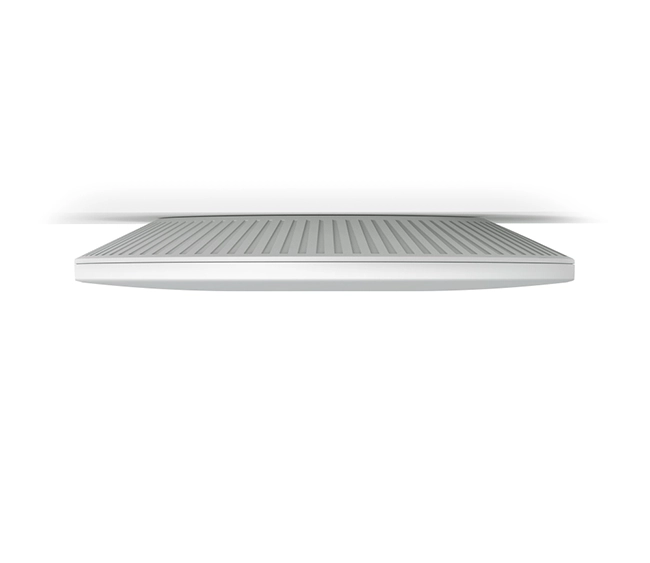

- Ceiling or wall mount
- 243 × 243 × 64 mm (9.6 × 9.6 × 2.5 in)
Key Features
- AX3600 WiFi 6 with ultra-fast dual-band performance
- 2.5G PoE+ port for high-speed backhaul
- Designed for high-density environments
- Omada SDN integration for unified management
- Enterprise-grade security with WPA3
Meta Description
TP-Link AX3600 Wireless Dual Band Multi-Gigabit Ceiling Mount AP - EAP660 HD with 2.5G PoE+, OFDMA, MU-MIMO, Omada SDN cloud management, and WPA3 security — built for high-density enterprise networks. DatasheetRelated Products
