TP-Link 8-Port Gigabit Desktop/Rackmount Switch 8-Port PoE+

KSh 15,000(KSh 17,400 Incl VAT)

8× 10/100/1000Mbps RJ45 ports.
Equipped with 8× PoE+ supported ports to transfer data and power over a single cable.
Works with IEEE 802.3af/at compliant devices, expanding home and office networks.
Innovative energy-efficient technology reduces power consumption.
Supports PoE+ standard with total power budget of 153W* and up to 30W per port.
Up to 250m data and power transmitting range under Extend Mode^**.
PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices.
Plug and play design, no configuration required.
Fanless design reduces power consumption and ensures silent operation, ideal for noise-sensitive homes or businesses

SKU: TL‑SG1008MPCategory: Networking Infrastructure

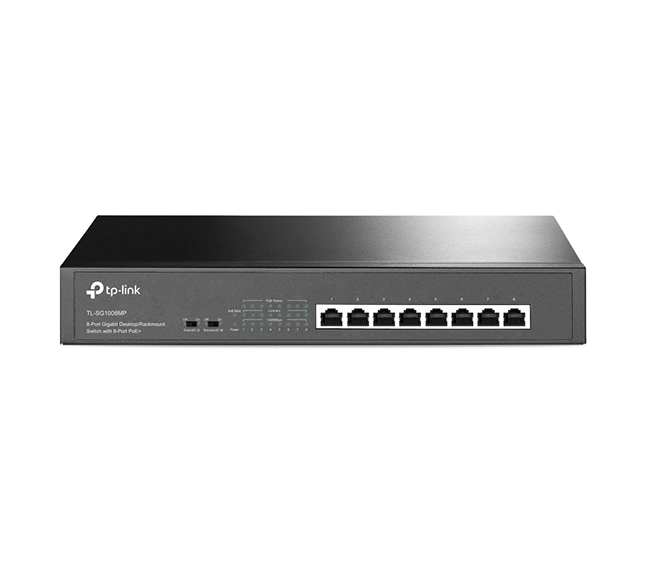

The TP-Link 8-Port Gigabit Desktop/Rackmount Switch 8-Port PoE+(TL‑SG1008MP) is an 8-port Gigabit unmanaged PoE+ switch designed for high-performance surveillance, office, and small business networks. With all eight ports supporting IEEE 802.3af/at PoE+, it delivers both data and power over a single Ethernet cable. It’s equipped with intelligent features such as PoE priority, extend mode for long-distance power transmission, and PoE auto-recovery, all within a fanless, durable metal housing.

🧠 Hardware Specifications

Total Ports: 8 × 10/100/1000 Mbps RJ45 ports
PoE Standard: IEEE 802.3af/at compliant
PoE Ports: All 8 ports support PoE+
Max Power Per Port: Up to 30 W
Total PoE Power Budget: 153 W
Switching Capacity: 16 Gbps
Forwarding Rate: 11.9 Mpps
MAC Address Table: 4K entries
Buffer Memory: 1.5 Mbit
Jumbo Frame Support: Up to 16 KB
Flow Control: IEEE 802.3x for full duplex; backpressure for half duplex
Fanless Design: Silent operation

⚡ PoE Features

Priority Mode: Ensures power is delivered to critical devices first (ports 1–2)
Extend Mode: Allows up to 250 meters of power + data over Cat5e/Cat6 at 10 Mbps
PoE Auto-Recovery: Automatically reboots unresponsive PoE-powered devices

🏗 Physical & Environmental

Casing: Metal, desktop/rackmount
Dimensions: 294 × 180 × 44 mm
Mounting Options: Rackmount brackets included
Power Supply: Built-in AC power (100–240 V, 50/60 Hz)
Max Power Consumption: 173.31 W (with PoE load), 8.6 W (without PoE load)
Operating Temperature: 0°C to 50°C
Storage Temperature: –40°C to 70°C
Humidity Range: 10% to 90% RH, non-condensing

✅ Short Key Features

8 × Gigabit Ethernet ports with PoE+ support
153 W total PoE power budget
Fanless metal housing for silent operation
Extend PoE range up to 250 m
PoE auto-recovery for device stability
Rackmount-ready design
Plug-and-play unmanaged setup

📝 Meta Description

TP-Link 8-Port Gigabit Desktop/Rackmount Switch 8-Port PoE+(TL‑SG1008MP) is an 8-port Gigabit PoE+ unmanaged switch with a 153 W total power budget, fanless design, and smart features like auto-recovery, priority mode, and extend range—ideal for IP surveillance, VoIP, and small business networking. Datasheet
