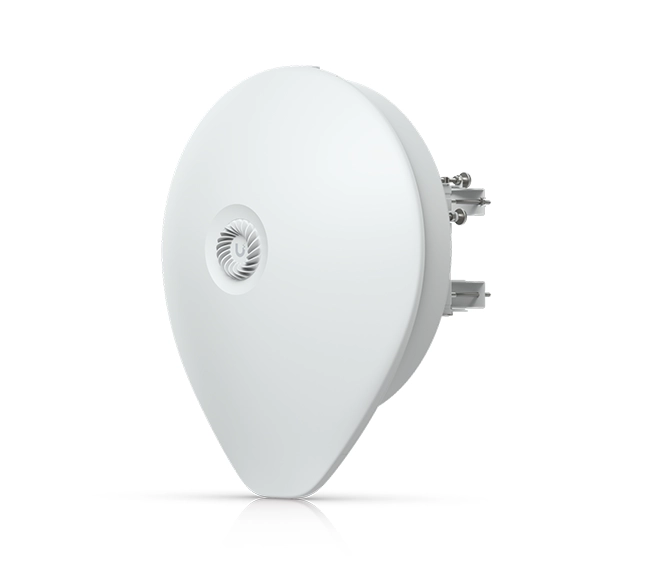

Ubiquiti airFiber 60 Xtreme-Range – (AF60-XR) P-to-P Bridge

The Ubiquiti airFiber 60 XR (AF60-XR) is a high-performance, extended-range point-to-point bridge that delivers fiber-like speeds of up to 6 Gbps over the 60 GHz band. Engineered for long-distance, low-latency wireless backhaul, it features an ultra-high-gain 44.8 dBi antenna, integrated beamforming, dual 10G ports, GPS synchronization, and 5 GHz failover. With an operational range of up to 15 km, the AF60-XR is ideal for mission-critical backhaul links in both ISP and enterprise environments.

---

Key Specifications

General

• Model: AF60-XR
• Manufacturer: Ubiquiti Networks
• Type: Extended-Range 60 GHz Point-to-Point Radio
• Primary Use: Long-distance wireless backhaul & bridging

---

Hardware Specifications

Processor & Memory

• CPU: Quad-Core ARM Cortex-A7
• System Memory: 512 MB DDR3
• Storage: 256 MB NAND

Enclosure & Mounting

• Material: Cast aluminum with weatherproof coating

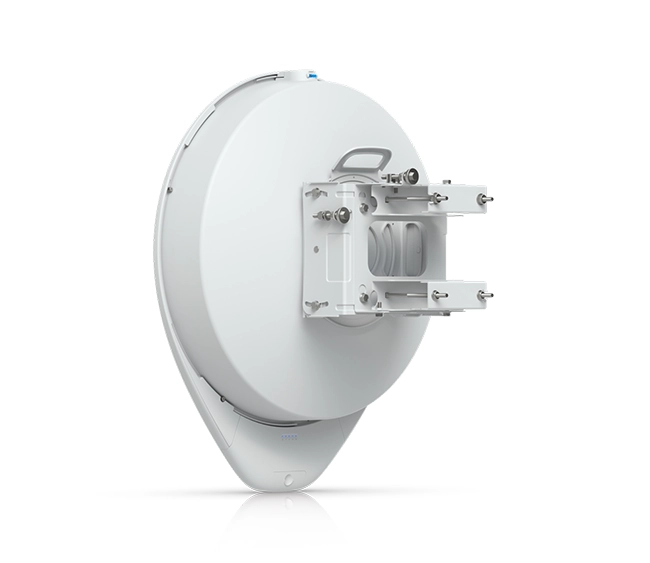

• Mounting: Precision mount with angle adjustment
• Dimensions: 569 × 425 × 425 mm
• Weight: 7.4 kg (with mount)

---

Radio & Antenna

• Primary Band: 57–71 GHz
• Backup Band: 5 GHz
• Maximum Throughput: 6 Gbps (aggregate)
• Maximum Range: Up to 15 km (line of sight)
• Antenna Gain:
  • 60 GHz: 44.8 dBi
  • 5 GHz: 26 dBi
• Beamforming: Yes (auto alignment and steering)
• Modulation Support: 16QAM, QPSK, BPSK

---

Interfaces

• 1 × 10G SFP+ Port
• 1 × 2.5G Ethernet Port
• Power Input:
  • PoE: 48V Passive PoE
  • PoE Injector: Included (60W Gigabit PoE adapter)
• Max Power Consumption: 20.5W

---

Performance & Features

• Latency: Sub-1 ms
• Auto Beam Alignment: Enhanced signal stability
• TDD GPS Synchronization: Interference-free, co-located deployment
• Adaptive Modulation: Dynamic link optimization
• Weather Resistance: IP67 rating
• Operating Temperature: -40°C to 60°C
• Wind Resistance: 200 km/h

---

Management & Software

• Platform: UISP (Ubiquiti ISP Management System)
• Management Access: Web UI, UISP app, SSH
• Monitoring: Real-time RF stats, throughput, alignment assist

---

Compliance & Certifications

• Certifications: FCC, IC, CE
• Surge Protection: ±24kV ESD

---

Package Contents

• 1 × airFiber 60 XR
• 1 × Precision Mount
• 1 × 60W Gigabit PoE Adapter
• 1 × Power Cord
• 1 × Quick Start Guide

---

Use Cases

• High-performance ISP backhaul in rural or metro areas
• Long-distance enterprise bridging
• Critical infrastructure wireless transport
• Low-latency video/data links over large distances
