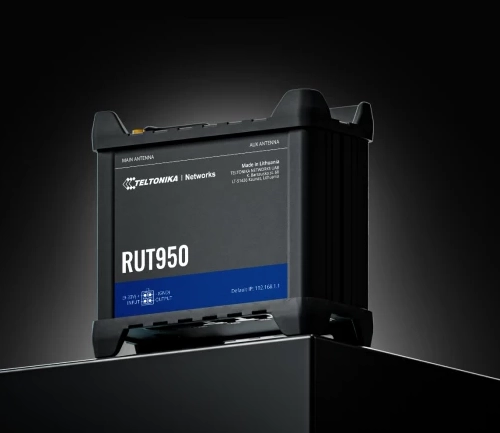

Teltonika RUT950 - 4G LTE Wi-Fi Dual-SIM Router

The Teltonika RUT950 - 4G LTE Wi-Fi Dual-SIM Router is a rugged industrial LTE Cat 4 router offering reliable 4G/3G/2G connectivity, dual-SIM failover, Wi-Fi, and quad-Ethernet ports—all wrapped in a compact aluminum housing rated for extreme temperatures. Featuring advanced VPN support, remote management (RMS), and customizable digital I/O, the RUT950 provides resilient, secure networking for critical infrastructure, automation, and IoT deployments.

Cellular & SIM

• LTE Cat 4: Up to 150 Mbps downlink / 50 Mbps uplink

• 3G: DC‑HSPA+ up to 21–42 Mbps DL, 5.76 Mbps UL

• 2G: EDGE/GPRS up to 236.8 kbps

• SIM Slots: Dual external SIM holders (2FF) with automatic failover based on signal, data/SMS limits, roaming

---

Wi‑Fi & Networking

• Wi‑Fi: 802.11 b/g/n, both AP and Station modes; supports up to 50 clients

• Ethernet: 4×10/100 Mbps ports (configurable as 1 WAN + 3 LAN), VLAN support

• WAN Failover & Load Balancing: Automatic switching using ICMP health checks

---

Hardware & I/O

• CPU: Atheros/MIPS 74Kc @ 550 MHz

• Memory: 128 MB DDR2 RAM, 16 MB Flash

• Digital I/O: 1× digital input, 1× open-collector output (max 300 mA, 30 V)

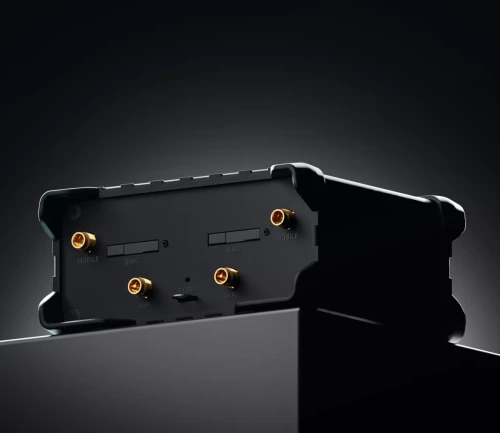

• Antennas: 2× LTE SMA connectors, 2× Wi-Fi RP-SMA connectors

• Reset: Physical reboot button

---

Power & Housing

• Power Input: 9–30 V DC via 4‑pin terminal or adapter

• Consumption: Typically <5 W

• Casing: Aluminum with plastic panels; IP30

• Mounting: DIN-rail, wall, or desktop via optional brackets

---

Physical Dimensions & Environment

• Size: 110 × 50 × 100 mm

• Weight: ~280 g

• Temperature: –40 °C to +75 °C

• Humidity: 10–95% non‑condensing

---

Software & Security

• OS: RutOS (OpenWrt-based)

• VPN: OpenVPN, IPsec, WireGuard, GRE, L2TP, PPTP, DMVPN, SSTP

• Firewall/Networks: NAT, DMZ, VLAN, QoS, IPv4/IPv6, multiple PDNs

• Security: WPA2/3, WPA2‑Enterprise, MAC filtering, SYN/DDOS protection

---

Management & Monitoring

• Interfaces: Web UI, CLI, SSH, SNMP v1/2/3, JSON‑RPC, SMS/USSD, RMS

• Alerts/Automation: SMS/email alerts, Ping/Wget-based reboot, periodic reboot scheduler

• IoT Ready: MQTT, Modbus TCP slave, integration with Azure IoT Hub, Cumulocity, ThingWorx

---

Certifications & Standards

• Standards: EN 61000 EMC, IEC 60950 safety, FCC, CE; surge resistance EN 61000‑4, ISO 7637‑2

---

Box Contents

• RUT950 unit, power adapter (9 W), 2× LTE antennas, 2× Wi-Fi antennas, Ethernet cable, SIM adapter kit, quick start guide, RMS flyer

---

Meta Description

Teltonika RUT950 is an industrial LTE Cat 4 router with dual-SIM, Wi-Fi, four Gigabit Ethernet ports, robust VPN support, and remote management. Rugged design with –40 °C to +75 °C rating. Ideal for resilient IoT and industrial connectivity.
