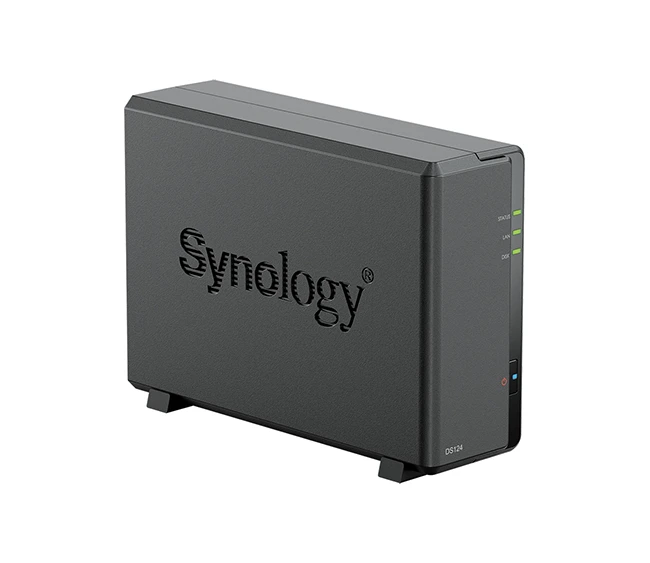

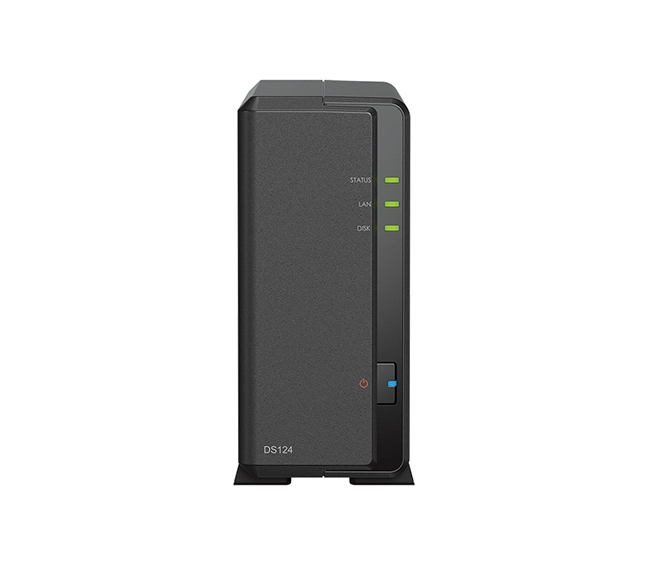

Synology DiskStation DS124 – 1-Bay NAS

The Synology DiskStation DS124 – 1-Bay NAS is a compact and affordable 1-bay NAS (Network Attached Storage) solution designed for home users and small businesses who need simple yet reliable centralized storage. Powered by the Realtek RTD1619B quad-core processor and 1 GB DDR4 memory, it offers excellent energy efficiency while running Synology DiskStation Manager (DSM) with access to robust data protection, backup, and file sharing features.

---

Processor

• Model: Realtek RTD1619B
• Architecture: 64-bit Quad-Core ARM Cortex-A55
• Base Clock Speed: 1.7 GHz

---

Memory

• Installed Memory: 1 GB DDR4 (non-expandable)

---

Storage

• Drive Bays: 1 × 3.5"/2.5" SATA HDD/SSD (hot-swappable not supported)
• Maximum Internal Capacity: Depends on installed drive (supports up to 22 TB single drive as of DSM updates)
• File System Support:
  • Internal drives: Btrfs, EXT4
  • External drives: Btrfs, EXT4, EXT3, FAT, NTFS, HFS+, exFAT

---

Networking

• Ethernet Ports: 1 × Gigabit Ethernet (RJ-45)
• Wake-on-LAN / Link Aggregation: Not supported

---

External Ports

• USB Ports: 2 × USB 3.2 Gen 1 (5 Gbps)

---

Performance

• Sequential Read: Up to 100 MB/s
• Sequential Write: Up to 100 MB/s
• Ideal for: File sharing, remote access, backups, and light media streaming

---

Software & Features

• Operating System: Synology DiskStation Manager (DSM)
• Key Functions:
  • File syncing across devices
  • Data backup (PC, Mac, mobile)
  • Cloud integration (Google Drive, OneDrive, Dropbox, etc.)
  • Media server (DLNA, Plex supported with limitations)
  • User & permission management
  • Mobile apps for iOS & Android
• Security Features: Encrypted shared folders, 2-step verification, HTTPS, firewall, auto block

---

Power & Efficiency

• Power Supply: External 36 W
• Power Consumption:
  • 4.5 W (HDD hibernation)
  • 9.8 W (access)

---

Physical Specifications

• Dimensions (H × W × D): 166 × 71 × 224 mm
• Weight: ~0.7 kg (without drives)
• Cooling: 60 mm × 60 mm fan with adjustable speed modes

---

Environmental Conditions

• Operating Temperature: 0°C – 40°C
• Relative Humidity: 5% – 95% (non-condensing)

---

Warranty & Support

• Warranty: 2 Years (extendable in some regions)

---

Typical Use Cases

• Home NAS for personal file storage and sharing
• Small office backup solution
• Secure cloud storage alternative
• Light media server for music, photos, and videos

---

Key Features

• Compact 1-bay NAS with Realtek RTD1619B quad-core CPU
• 1 GB DDR4 memory optimized for Synology DSM
• 1 Gigabit LAN port + 2 × USB 3.2 ports
• Up to 22 TB single-drive support with Btrfs file system
• Ideal for file sharing, backups, and personal cloud use

---

Meta Description

Synology DiskStation DS124 – 1-Bay NAS with Realtek RTD1619B quad-core CPU, 1GB DDR4 RAM, Gigabit LAN, and USB 3.2 ports. Compact, reliable storage solution for home and small office backup and file sharing. Datasheet
