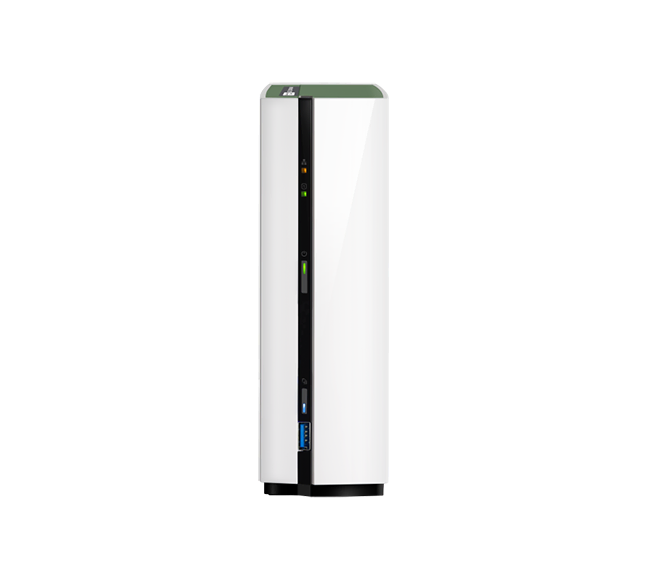

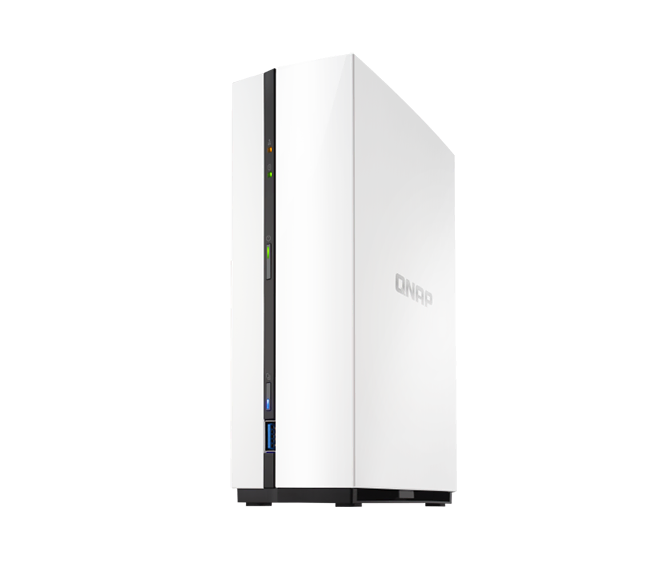

QNAP TS-128A 1-bay NAS

The QNAP TS-128A 1-bay NAS is a compact and energy-efficient 1-bay NAS designed for home and small office users seeking simple data backup, secure file sharing, and multimedia streaming. Powered by a quad-core Realtek processor with hardware encryption and snapshot protection, it offers solid performance in a lightweight, quiet form factor.

---

Detailed Specifications

Processor & Memory

• CPU: Realtek RTD1295, Quad-Core 1.4 GHz (ARM Cortex-A53)
• Architecture: 64-bit
• Memory: 1 GB DDR4 (non-expandable)
• Flash Memory: 4 GB eMMC

Storage & Drive Bays

• Drive Bays: 1 × 3.5” SATA 6Gb/s HDD or SSD
• Maximum Capacity: Supports large-capacity SATA drives
• Hot-Swappable: No

Networking & Connectivity

• LAN Port: 1 × Gigabit RJ-45 Ethernet
• USB Ports: 1 × USB 3.2 Gen 1 (front), 2 × USB 2.0 (rear)
• Buttons: Power, One-Touch Copy
• LED Indicators: Status, LAN, HDD

Performance

• Read/Write Speed: Up to 112 MB/s sequential throughput
• Encryption: Hardware-accelerated AES-256 encryption engine
• Snapshots: Supports up to 16 snapshots per volume and 32 total per NAS

Power & Cooling

• Power Supply: External 36W adapter
• Power Consumption: 7.12 W (operating), 3.09 W (sleep mode)
• Cooling System: 1 × 76mm fan (smart temperature control)
• Noise Level: Approx. 15.7 dB(A)

Physical & Environmental

• Dimensions: 187.7 × 60 × 125 mm
• Weight: 0.56 kg
• Operating Temperature: 0°C – 40°C
• Humidity: 5% – 95% non-condensing

Software & Features

• Operating System: QTS NAS Operating System
• Supported Protocols: SMB/CIFS, AFP, NFS, FTP, WebDAV, iSCSI
• Backup Solutions: Qsync, Hybrid Backup Sync, Cloud Backup, Snapshot Recovery
• Multimedia Support: Photo, Music, and Video Stations with DLNA and Plex support
• Mobile Apps: Qfile, Qmanager, Qphoto, and Qvideo
• Security: AES-256 volume encryption, IP blocking, and access control

---

Key Features

• Quad-core Realtek 1.4 GHz processor with AES encryption
• Snapshot support for enhanced data protection
• 1 GB DDR4 memory with 4 GB eMMC flash
• Energy-efficient design with low noise
• Up to 112 MB/s performance for file sharing and backup
• Ideal for multimedia streaming and cloud synchronization

---

Meta Description

The QNAP TS-128A 1-bay NAS powered by a quad-core Realtek 1.4 GHz processor with AES encryption, snapshot protection, and 1 GB DDR4 memory. It offers up to 112 MB/s performance for data backup, sharing, and home multimedia applications in a quiet, energy-efficient design. Datasheet
