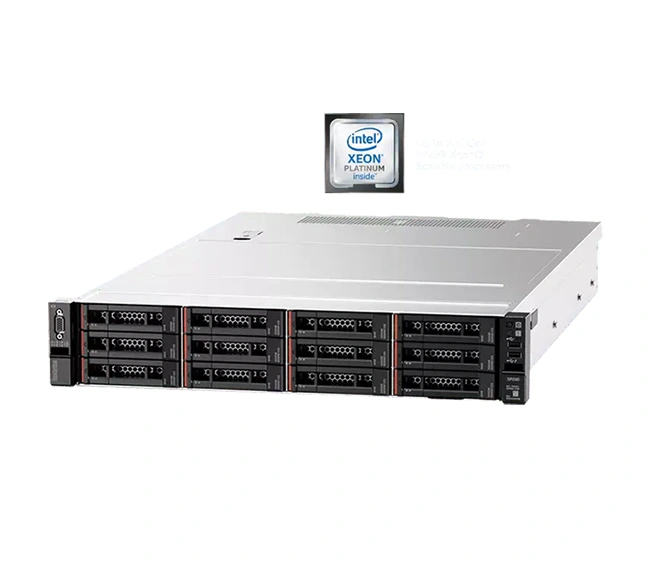

Lenovo ThinkSystem SR590 Rack Server

Here's a detailed brochure-style overview of the Lenovo ThinkSystem SR590 Rack Server, designed to provide a comprehensive understanding of its features and capabilities.

---

Lenovo ThinkSystem SR590 Rack Server

Versatile 2U Rack Server for Growing Enterprises

---

🔍 Overview

The Lenovo ThinkSystem SR590 is a 2U, dual-socket rack server engineered for small to large enterprises requiring a balance of performance, flexibility, and reliability. It's optimized for a variety of workloads, including virtualization, cloud computing, and enterprise applications.

---

🧠 Processor & Memory

• Processors: Supports up to 2x Intel® Xeon® Scalable processors (up to 26 cores per CPU, TDP up to 150W)
• Memory: Up to 1TB of 2933MHz TruDDR4 memory across 16 DIMM slots

---

💾 Storage Capabilities

• Drive Bays:
  • Up to 16x 2.5" or 14x 3.5" hot-swap drives
  • Optional 4x AnyBay bays supporting SAS/SATA/NVMe drives
  • Up to 2x M.2 boot drives
• Maximum Internal Storage:
  • 168TB with 3.5" SAS/SATA HDDs
  • 122.9TB with 2.5" SSDs
  • 16TB with direct-connect 2.5" NVMe drives

---

🎮 Expansion & GPU Support

• Expansion Slots: Up to 6x PCIe 3.0 slots via replaceable riser cards for various I/O configurations
• GPU Support: While specific GPU support isn't detailed, the available PCIe slots allow for the addition of compatible GPUs as needed.

---

🌐 Networking & Connectivity

• Standard Networking:
  • 2x GbE ports
  • 1x dedicated GbE management port
• Optional Networking:
  • Up to 2x 1GbE, 2x 10GBase-T, or 2x 10GBase SFP+ via LOM or ML2 adapters

---

🔒 Security & Management

• Security Features:
  • ThinkShield security with locking bezel and top cover
  • TPM 2.1 standard; optional Trusted Cryptographic Module (TCM)
• Management:
  • Lenovo XClarity Controller (embedded hardware)
  • Lenovo XClarity Administrator for centralized management
  • Optional XClarity Pro with Call Home feature

---

⚙️ Power & Cooling

• Power Supply: Supports up to 2x hot-swap/redundant power supplies: 550W/750W Platinum or 750W Titanium
• Cooling: Hot-swap fans with light path diagnostics and Predictive Failure Analysis (PFA) for proactive maintenance

---

📏 Physical Specifications

• Form Factor: 2U rack server
• Dimensions:
  • Height: 86.5 mm (3.4 inches)
  • Width: 482.0 mm (19.0 inches) with rack latches
  • Depth: 763.7 mm (30.1 inches)
• Weight: Up to 28.0 kg (61.7 lb), depending on configuration

---

🖥️ Operating System Support

Compatible with major operating systems, including Microsoft Windows Server, SUSE Linux Enterprise Server, Red Hat Enterprise Linux, and VMware ESXi.

---

📄 Warranty & Support

Offered with 1-year or 3-year customer-replaceable unit and onsite service, next business day 9×5, with optional service upgrades available.

---
