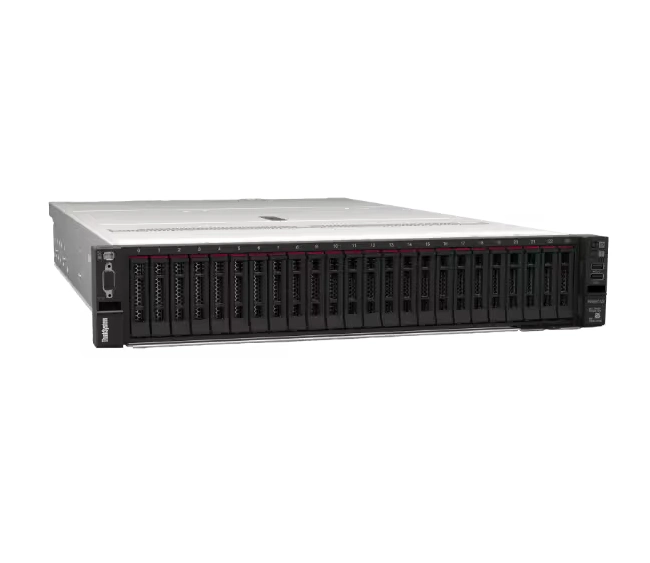

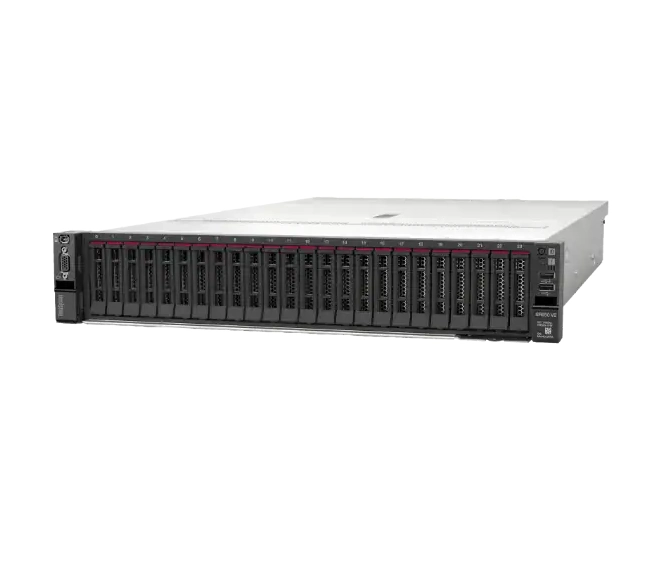

Lenovo ThinkSystem SR650 V2 Rack Server
KSh 650,000(KSh 754,000 Incl VAT)
- Form Factor: 2U rack server
- Processors: Up to 2x Intel® Xeon® Scalable Gen 3 CPUs (up to 40 cores per CPU)
- Memory: Up to 8TB DDR4 (3200MHz) across 32 DIMM slots, Supports Intel Optane Persistent Memory 200 Series
- Storage: Up to 40x 2.5" or 20x 3.5" drives, Supports up to 32 NVMe drives, 2x M.2 or 2x 7mm boot drives (RAID 1)
- Expansion: Up to 8x PCIe Gen4 slots + 1x OCP 3.0
- GPU Support: Up to 8x single-width or 3x double-width GPUs
- Networking: Flexible via OCP 3.0 or PCIe NICs
- Power: Dual hot-swap PSUs up to 1800W (Platinum/Titanium)
- Cooling: Redundant hot-swap fans with N+1 design
- Management: Lenovo XClarity Controller & Administrator
Category: Servers & Storage
The Lenovo ThinkSystem SR650 V2 is a high-performance, 2U rack server designed to handle a wide range of workloads, from virtualization and cloud computing to high-performance computing (HPC) and enterprise applications. It offers a balance of performance, flexibility, and reliability, making it suitable for various enterprise environments.
🔍 Overview
The SR650 V2 supports up to two 3rd generation Intel® Xeon® Scalable processors, each with up to 40 cores and a thermal design power (TDP) of up to 270W. It accommodates up to 32 DDR4 DIMM slots, supporting a maximum of 8TB using 256GB 3DS RDIMMs. Additionally, it supports up to 16 Intel® Optane™ Persistent Memory 200 Series modules, allowing for a combined memory capacity of up to 12TB.💾 Storage Capabilities
- Drive Bays:
- Up to 20x 3.5" or 40x 2.5" hot-swap drives
- Support for up to 32 NVMe drives with NVMe switch adapters
- Optional 2x M.2 boot drives (RAID 1)
- Optional 2x 7mm boot drives in rear (RAID 1)
🎮 Expansion & GPU Support
- Expansion Slots:
- Up to 8x PCIe 4.0 slots
- 1x OCP 3.0 slot
- 1x cabled HBA/RAID adapter slot (doesn't occupy a standard PCIe slot)
- GPU Support:
- Up to 8x single-width GPUs or 3x double-width GPUs
🌐 Networking & Connectivity
- Standard Networking:
- LOM adapter installed in the OCP 3.0 slot
- PCIe adapters
- Ports:
- Front: 1x USB 3.1 Gen 1, 1x USB 2.0 with XClarity Mobile support, 1x VGA (optional), 1x external diagnostics handset port
- Rear: 3x USB 3.1 Gen 1, 1x VGA, 1x RJ-45 (management), 1x Serial port (optional)
🔒 Security & Management
- Security Features:
- Trusted Platform Module (TPM) 2.0
- ThinkShield security with locking bezel and top cover
- Management:
- Lenovo XClarity Controller (embedded hardware)
- Lenovo XClarity Administrator for centralized management
⚙️ Power & Cooling
- Power Supply:
- Dual hot-swap/redundant power supplies: 500W–1800W 80 PLUS Platinum
- Cooling:
- 6x (with two processors installed) or 5x (with one processor installed) single-rotor or dual-rotor hot-swap 60 mm fans, configuration dependent
- Fans are N+1 redundant, tolerating a single-rotor failure
- One fan integrated in each power supply
📏 Physical Specifications
- Form Factor: 2U rack server
- Dimensions:
- Width: 445 mm (17.5 inches)
- Height: 87 mm (3.4 inches)
- Depth: 764 mm (30.1 inches)
- Weight: Up to 38.8 kg (85.5 lb), depending on configuration
🖥️ Operating System Support
Compatible with major operating systems, including Microsoft Windows Server, SUSE Linux Enterprise Server, Red Hat Enterprise Linux, and VMware ESXi.📄 Warranty & Support
Offered with 1-year or 3-year customer-replaceable unit and onsite service, next business day 9×5, with optional service upgrades available. Data SheetRelated Products
