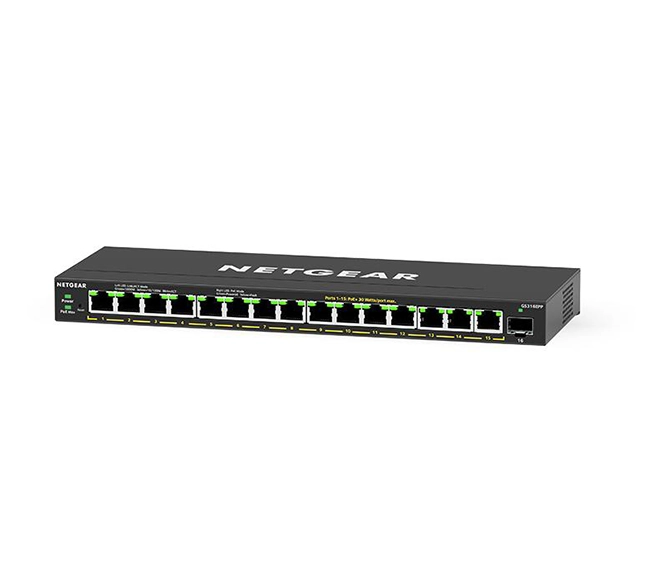

Netgear GS316EPP-100UKS 16-Port Gigabit Plus Switch PoE+

  The Netgear GS316EPP-100UKS 16-Port Gigabit Plus Switch PoE+ is a 16-port Gigabit Plus Switch offering advanced features with high-power PoE+ support. With 15 Gigabit PoE+ ports and a dedicated 1 × 1G SFP uplink, it provides reliable connectivity and power delivery for IP surveillance, access points, and VoIP systems. Designed for small to medium businesses, this switch combines easy management, robust PoE capability, and versatile deployment options, making it a perfect solution for powering high-density networks.

---

Ports & Connectivity

• Total Ports: 16 ports
  • 15 × 10/100/1000 Mbps RJ-45 Gigabit Ethernet ports with PoE+
  • 1 × 1G SFP port (fiber uplink or extended network connectivity)
• PoE Support:
  • IEEE 802.3af (PoE)
  • IEEE 802.3at (PoE+)
• Maximum Power per Port: Up to 30W
• Total PoE Budget: 231W

---

Performance

• Switching Capacity: 32 Gbps non-blocking
• Forwarding Rate: 23.8 Mpps
• MAC Address Table: 8,000 entries
• Jumbo Frames: Supported up to 9,720 bytes

---

Management Features (Plus Switch)

• VLAN support (port-based and 802.1Q)
• QoS for traffic prioritization (Voice/Video optimization)
• Port Mirroring for diagnostics
• Rate limiting
• IGMP Snooping for multicast optimization
• Loop Detection and Cable Diagnostics

---

Power & Consumption

• PoE Power Budget: 231W shared across 15 ports
• Max Power Consumption: ~250W

---

Design & Build

• Enclosure: Metal housing for durability
• Mounting Options: Desktop, wall-mount, or rack-mount (rack kit included)
• Cooling: Fanless design for silent operation
• LED Indicators: Power, Link/Activity, PoE status

---

Physical Specifications

• Dimensions (W × D × H): 286 × 102 × 27 mm
• Weight: ~1.12 kg

---

Environmental Conditions

• Operating Temperature: 0°C to 40°C
• Storage Temperature: –20°C to 70°C
• Humidity: 10%–90% non-condensing
• Noise Level: 0 dBA (fanless)

---

Warranty & Support

• Warranty: Netgear Limited Lifetime Hardware Warranty
• Support: Lifetime 24/7 chat support and next-business-day hardware replacement (with registration)

---

Typical Use Cases

• Powering IP cameras in large surveillance networks
• Providing PoE+ to wireless access points for reliable WiFi coverage
• Supporting VoIP phones and UC systems in offices
• Suitable for SMBs requiring light management and high PoE power

---

Key Features

• 15 × Gigabit PoE+ ports, 1 × 1G SFP uplink port
• High-power PoE+ with 231W total budget
• Plus features: VLAN, QoS, IGMP snooping, port mirroring
• Fanless, silent design suitable for office use
• Plug-and-play with optional light management

---

Meta Description

Netgear GS316EPP-100UKS 16-Port Gigabit Plus Switch PoE+, 15 PoE+ ports, 231W power budget, and 1G SFP uplink—silent, reliable, and ideal for SMBs powering IP cameras, APs, and VoIP phones. Datasheet
