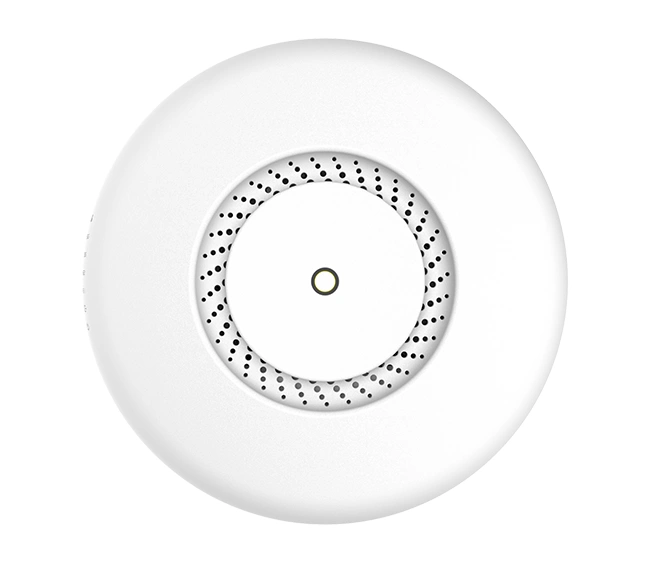

MikroTik RBcAPGi-5acD2nD (cAP ac)

The MikroTik RBcAPGi-5acD2nD (cAP ac), also known as the cAP ac, is a dual-band, ceiling- or wall-mountable wireless access point designed for high-performance indoor Wi-Fi coverage. It supports simultaneous 2.4 GHz and 5 GHz operation with 802.11ac capabilities, making it ideal for enterprise environments, hotels, offices, or homes where seamless, reliable, and fast wireless connectivity is needed. The unit features a modern and clean industrial design with full RouterOS support.

---

🧠 Core Hardware Specifications

• Model: RBcAPGi-5acD2nD
• Product Name: cAP ac
• CPU: QCA9556, 720 MHz
• Architecture: MIPSBE
• RAM: 128 MB DDR2
• Storage: 16 MB Flash
• Operating System: RouterOS
• License Level: 4

---

📶 Wireless Specifications

• Dual-band Simultaneous Operation: Yes
• 2.4 GHz Band:
  • Standard: 802.11b/g/n
  • Max Data Rate: 300 Mbps
  • Chains: 2×2 MIMO
  • Antenna Gain: 2 dBi
• 5 GHz Band:
  • Standard: 802.11a/n/ac
  • Max Data Rate: 867 Mbps
  • Chains: 2×2 MIMO
  • Antenna Gain: 2.5 dBi
• Antenna Type: Integrated omnidirectional antennas
• Wireless Modes: AP, station, WDS, bridge, repeater

---

🌐 Networking Interfaces

• Ethernet Ports:
  • 2 × 10/100/1000 Mbps Gigabit Ethernet ports
  • PoE-in on Port 1 (802.3af/at and passive PoE)
  • PoE-out on Port 2 (passive, max 57 V, 500 mA)

---

⚡ Powering Options

• Power Input Options:
  • Passive PoE or 802.3af/at via Ethernet port
  • 18–57 V DC
• PoE Output: Yes, on second port (passive)
• Max Power Consumption: 13 W
• Power Adapter Included: Yes (24 V, 1.2 A)

---

🔐 Software & Features

• RouterOS Level 4: Full access point and routing functionality
• CAPsMAN Support: Yes (can operate as CAP or controller)
• VPN: IPsec, PPTP, L2TP, OpenVPN
• Routing Protocols: Static, OSPF, BGP
• Firewall/NAT: Fully supported
• Management: Winbox, WebFig, CLI, SSH, SNMP, API
• Monitoring Tools: Ping, Torch, Packet Sniffer, Bandwidth Test

---

📦 Physical & Environmental

• Enclosure: Round ceiling-mountable plastic enclosure
• Dimensions: Ø 136 mm × 30 mm
• Weight: ~300 g
• Mounting:
  • Ceiling and wall mount kits included
  • Designed for indoor use
• Operating Temperature: -40°C to +70°C
• Cooling: Passive
• LEDs: For power and wireless activity

---

📝 Meta Description

MikroTik RBcAPGi-5acD2nD (cAP ac) is a dual-band ceiling-mount access point with simultaneous 2.4 GHz and 5 GHz Wi-Fi, Gigabit Ethernet, PoE-in/out, and RouterOS Level 4—ideal for modern indoor wireless deployments in office, enterprise, and hospitality environments. Datasheet
