UniFi U6 In-Wall (U6-IW)

The UniFi U6 In-Wall (U6-IW) is a Wi-Fi 6 access point designed to fit into a standard wall outlet, ideal for hotel rooms, offices, and residential units.

---

📡 Wireless Features

• Wi-Fi Standard:
  • Wi-Fi 6 (802.11ax), backward compatible with 802.11a/b/g/n/ac
• Frequency Bands:
  • 2.4 GHz: Up to 573.5 Mbps (2x2 MIMO, 20/40 MHz)
  • 5 GHz: Up to 4.8 Gbps (4x4 MU-MIMO, supports 20/40/80/160 MHz)
• Max Aggregate Throughput: ~5.4 Gbps
• MIMO:
  • 2x2 on 2.4 GHz
  • 4x4 on 5 GHz

---

🔌 Ethernet & Ports

• 1x GbE uplink port (PoE In, supports 802.3at)
• 1x GbE PoE Out port (802.3af output, ideal for powering IP phones or cameras)
• 3x GbE data-only LAN ports (ideal for local wired devices)

---

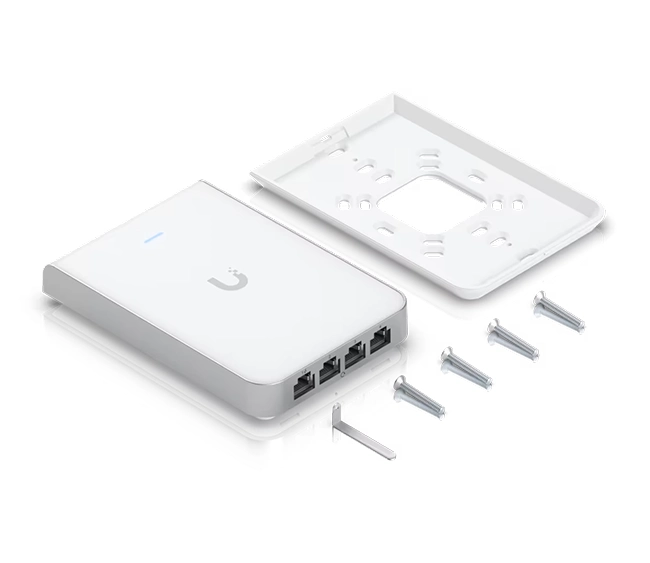

🔧 Mounting & Build

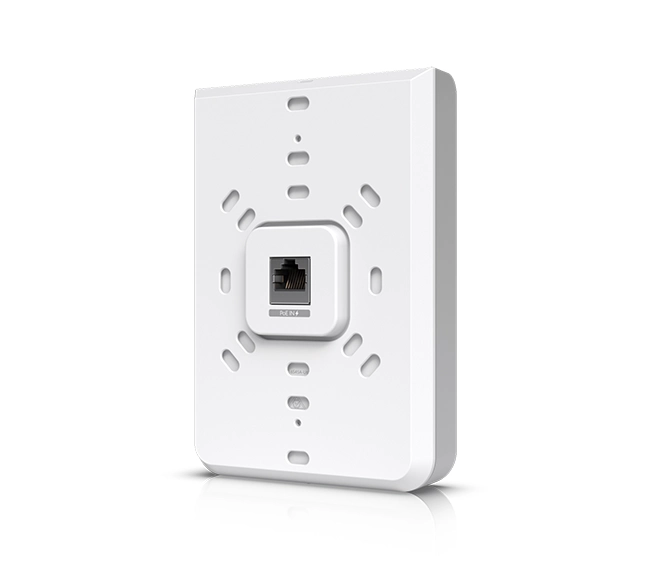

• Form Factor: In-wall, designed to replace standard Ethernet wall plates
• Installation: Fits most 1-gang electrical wall boxes
• Mount Kit: Includes wall mounting accessories
• Ideal For: Hotels, dorms, apartments, offices—any room that needs both wireless and wired access

---

⚙️ Power

• PoE Input: 802.3at (PoE+) required for full functionality (including PoE Out)
• Power Consumption:
  • 13.5W (with PoE output)
  • 10.5W (without PoE output)

---

📋 Management & Software

• Managed via: UniFi Network Controller / UniFi OS Console
• Supports: Advanced UniFi features like guest portals, VLANs, traffic shaping, etc.

---

🌡️ Environmental & Physical

• Dimensions: 139.7 x 96.93 x 25.75 mm (5.5 x 3.8 x 1 in)
• Weight: 241 g (0.53 lb)
• Operating Temp: –10 to 60°C (14 to 140°F)
• Humidity: 5–95% non-condensing

---
