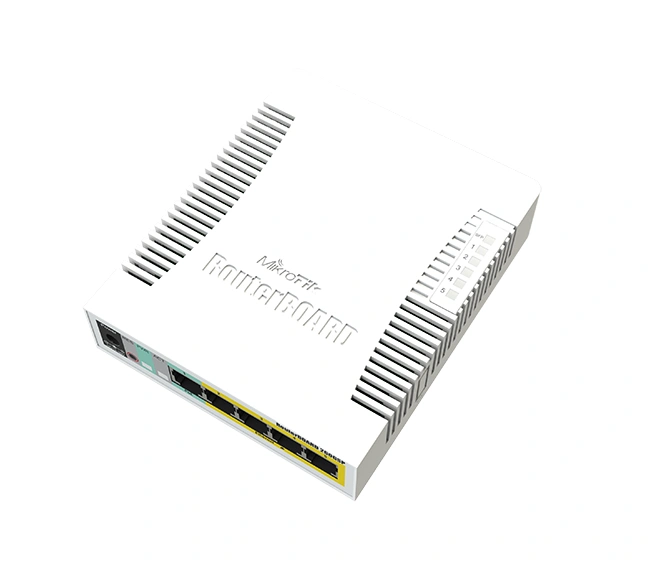

MikroTik CSS106-1G-4P-1S (RB260GSP) Smart PoE Switch

KSh 9,500(KSh 11,020 Incl VAT)

5× Gigabit Ethernet ports (4 with Passive PoE out)
1× SFP cage for fiber uplink
Passive PoE-out: up to 1A per port, 2A total
Power input: 11–30V via DC jack or PoE-in
SwOS web-managed smart switch OS
Switch chip: Atheros QCA8337 with non-blocking Layer 2 performance
Fanless plastic desktop design
Low power consumption (~5W idle, ~53W max with PoE load)

SKU: CSS106-1G-4P-1SCategory: Networking Infrastructure

MikroTik CSS106-1G-4P-1S (RB260GSP) is a smart SOHO switch with 5 Gigabit ports, 4 Passive PoE-out, 1 SFP cage, SwOS, and a fanless desktop design—perfect for small networks and home labs Here are the detailed specifications for the MikroTik CSS106-1G-4P-1S (RB260GSP) desktop smart switch:

⚙️ General

Product Code: CSS106‑1G‑4P‑1S (RB260GSP)
Case: Compact plastic desktop enclosure
Dimensions: 113 × 139 × 28 mm; Weight ≈ 142 g
Operating Temperature: –25 °C to +70 °C
MTBF: ~100,000 hours @ 25 °C
Certifications: CE, EAC, RoHS; Rating IP20 (indoor)

🔌 Ports & Switching

Ethernet: 5 × 10/100/1000 Mbps RJ45
SFP Port: 1 × 1 G SFP cage with DDMI
Switch Chip: Atheros QCA8337 (AR8327-based)
- Throughput: Non‑blocking L2 switching (~6 Gbps full duplex; ~8.9 Mpps @64 bytes)

🧠 CPU & Memory

CPU: Taifatech TF470 embedded microcontroller
Memory: 96 KB SRAM
Storage: 128 KB flash for SwOS firmware

🔌 Power & PoE

Power Inputs:
- DC jack: 11–30 V
- Passive PoE-in on Ether1: 11–30 V
Power Consumption:
- Idle (no attachments): ~5 W
- Maximum (with load): ~53 W
PoE Out (Passive):
- On ports Ether2–Ether5
- Up to 1 A per port (max total 2 A)

🧩 Features & Software

Operating System: MikroTik SwOS (web-managed)
Functionalities:
- VLAN support (including port/VLAN isolation)
- MAC-based filters
- Traffic mirroring
- Bandwidth limitation and header rewriting
- Jumbo frames support (up to 9 KB)
- Watchdog, temperature and voltage monitoring
Redundancy: Dual‑image firmware with backup recovery
