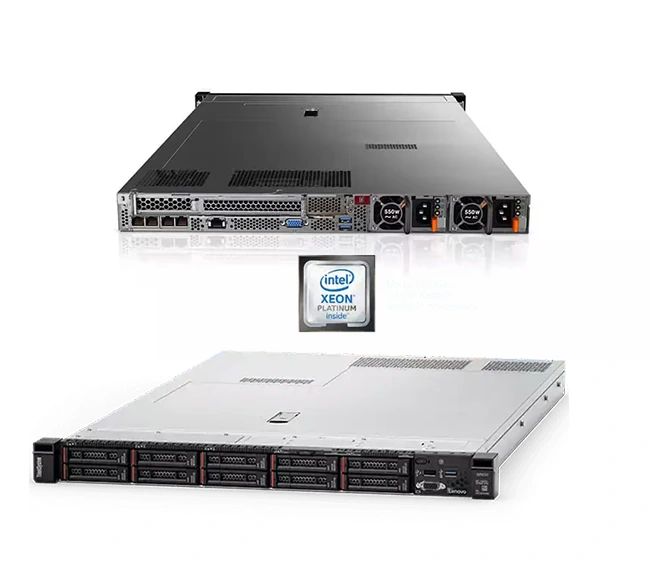

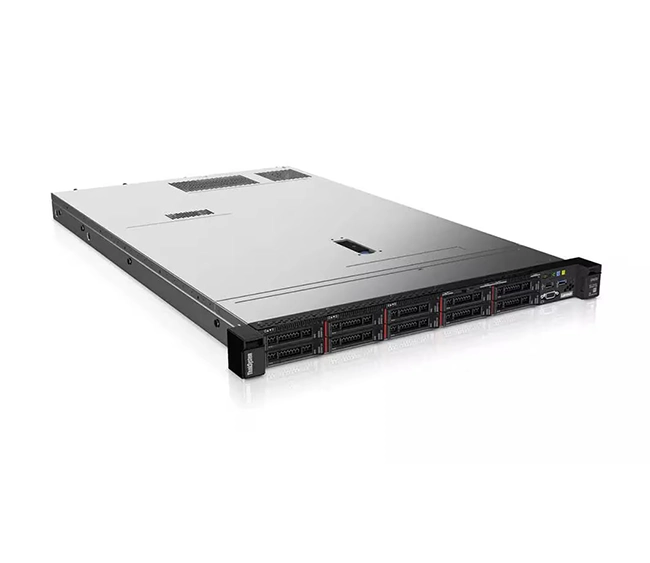

Lenovo ThinkSystem SR630 Rack Server

The Lenovo ThinkSystem SR630 is a versatile 1U rack server designed for a wide range of workloads, including IT infrastructure, virtualization, cloud computing, and high-performance computing (HPC). It offers a balance of performance, flexibility, and reliability, making it suitable for various enterprise environments.

---

🔧 Key Specifications

Form Factor: 1U rack server Processors: Supports up to 2x second-generation Intel® Xeon® Scalable processors, with up to 28 cores per CPU and a thermal design power (TDP) of up to 205W. Memory: Accommodates up to 24x DDR4 DIMM slots, supporting a maximum of 7.5TB using 128GB DIMMs, operating at speeds of 2666MHz or 2933MHz. Storage Options:

• Supports up to 12x 2.5" or 4x 3.5" hot-swap SAS/SATA HDDs/SSDs.
• Includes 4x AnyBay bays, allowing for a mix of SAS, SATA, or NVMe drives.
• Optional support for up to 2x mirrored M.2 boot drives.

Expansion Slots:

• Up to 4x PCIe 3.0 slots (with two CPUs), including 1x dedicated PCIe slot for RAID adapter.

RAID Support:

• Hardware RAID options with up to 16 ports and flash cache.
• Support for up to 16-port Host Bus Adapters (HBAs)

Networking:

• Integrated 2/4-port 1GbE LAN on Motherboard (LOM).
• Optional 2/4-port 10GbE LOM with Base-T or SFP+.
• 1x dedicated 1GbE management port.

Power Supply:

• Dual hot-swap/redundant power supplies.
• Options include 550W, 750W, and 1100W AC 80 PLUS Platinum; or 750W AC 80 PLUS Titanium.

Management:

• Lenovo XClarity Controller for embedded management.
• Lenovo XClarity Administrator for centralized infrastructure delivery.
• XClarity Integrator plugins and XClarity Energy Manager for server power management.

Security Features:

• Trusted Platform Module (TPM) 1.2/2.0.
• Predictive Failure Analysis (PFA).
• Hot-swap/redundant drives, fans, and power supplies.
• Light path diagnostic LEDs.
• Front-access diagnostics via dedicated USB port.

Operating System Support:

• Microsoft Windows Server.
• SUSE Linux Enterprise Server.
• Red Hat Enterprise Linux.
• VMware vSphere.

Warranty:

• 1- and 3-year customer replaceable unit and onsite service, next business day 9×5.
• Optional service upgrades available.

---
