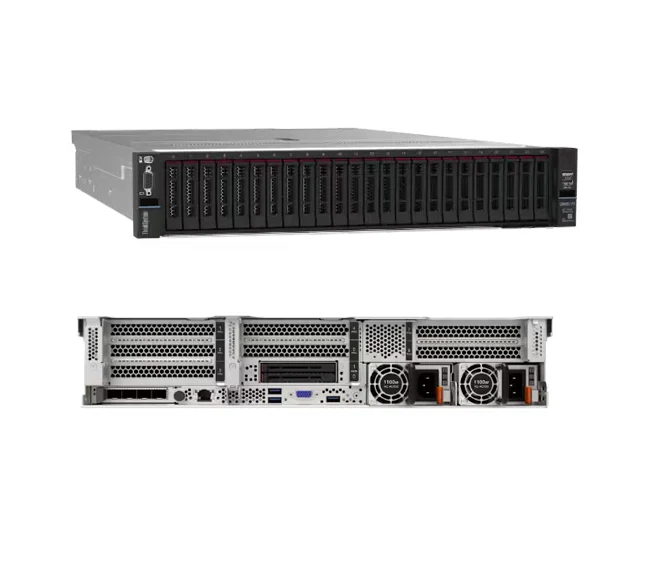

Lenovo ThinkSystem SR650 V3 Rack Server



Lenovo ThinkSystem SR650 V3

High-Performance, Scalable 2U Rack Server for Modern Workloads

---

🔍 Overview

The Lenovo ThinkSystem SR650 V3 is a versatile 2U rack server designed to handle a wide range of workloads, including AI/ML, data analytics, cloud computing, and high-performance computing (HPC). With support for the latest 5th Gen Intel® Xeon® Scalable processors, DDR5 memory, and a flexible storage architecture, the SR650 V3 delivers exceptional performance, scalability, and reliability.

---

🧠 Processor & Memory

• Processors: Up to 2x 5th Gen Intel® Xeon® Scalable processors, each supporting up to 64 cores and a thermal design power (TDP) of up to 385W.
• Memory: Supports up to 32x TruDDR5 3DS/RDIMMs, operating at speeds up to 4800 MHz, providing higher performance and capacity with lower power consumption compared to DDR4.

---

💾 Storage Capabilities

• Drive Bays:
  • Up to 20x 3.5” or 40x 2.5” hot-swap drives.
  • Supports up to 36x NVMe drives with PCIe retimer adapters.
  • Rear: 2x 2.5” 7mm SATA/NVMe hot-swap boot drives with RAID support.
  • Internal: 2x M.2 SATA/NVMe boot drives with RAID support.
• Storage Flexibility: Lenovo's AnyBay™ design allows mixing of SAS, SATA, and NVMe drives in the same bay, providing flexibility to configure bays with PCIe SSDs or capacity SAS drives as needed.

---

🎮 Expansion & GPU Support

• Expansion Slots:
  • Up to 12x PCIe 4.0/5.0 slots.
  • 1x OCP 3.0 slot for networking.
  • 1x cabled internal HBA/RAID adapter slot that doesn't occupy a standard PCIe slot.
• GPU Support: Accommodates up to 8x single-width GPUs or 3x double-width GPUs, making it suitable for workloads requiring substantial parallel processing power.

---

🌐 Networking & Connectivity

• Network Interface: Features a dedicated OCP 3.0 SFF slot with PCIe 5.0 x16 host interface, supporting various 2-port and 4-port adapters with 1, 10, 25, or 100 GbE network connectivity.
• Ports:
  • Front: 1x USB 3.1 Gen 1, 1x USB 2.0 with XClarity Mobile support, optional VGA, and external diagnostics handset port.
  • Rear: 3x USB 3.1 Gen 1, 1x VGA, 1x 1GbE RJ-45 management port, optional second 1GbE management port, and optional serial port.

---

🔒 Security & Management

• Security Features:
  • Secure Boot functionality.
  • Platform Firmware Resiliency (PFR) hardware Root of Trust (RoT).
  • Firmware signature processes compliant with FIPS and NIST requirements.
  • Integrated Trusted Platform Module (TPM) supporting TPM 2.0.
  • Support for self-encrypting drives (SEDs).
• Management: Equipped with Lenovo XClarity Controller for advanced systems management, including features like enhanced performance monitoring, higher-resolution remote video, and expanded security options.

---

⚙️ Power & Cooling

• Power Supply: Dual redundant AC & DC power supplies with multiple wattage options, including 750W, 1100W, 1800W, 2400W, and 2600W, with Platinum and Titanium efficiency ratings.
• Cooling: Supports N+1 redundancy with hot-swap system fans, ensuring continued operation even if one rotor of a fan fails.

---

📏 Physical Specifications

• Dimensions:
  • Height: 86.5 mm (3.4 inches).
  • Width: 482.0 mm (19.0 inches) with rack latches.
  • Depth: 763.7 mm (30.1 inches).
• Weight: Up to 39 kg (86 lb), depending on configuration.

---

🖥️ Operating System Support

Compatible with major operating systems, including Microsoft Windows Server, SUSE Linux Enterprise Server, Red Hat Enterprise Linux, and VMware ESXi.

---

📄 Warranty & Support

Offered with 1-year or 3-year customer replaceable unit and onsite service, next business day 9x5, with optional service upgrades available. Data Sheet
