Lenovo ThinkSystem SR570 Rack Server

Here's a detailed brochure-style summary of the Lenovo ThinkSystem SR570 Rack Server specifications:

---

Lenovo ThinkSystem SR570 Rack Server – Technical Specifications

Overview

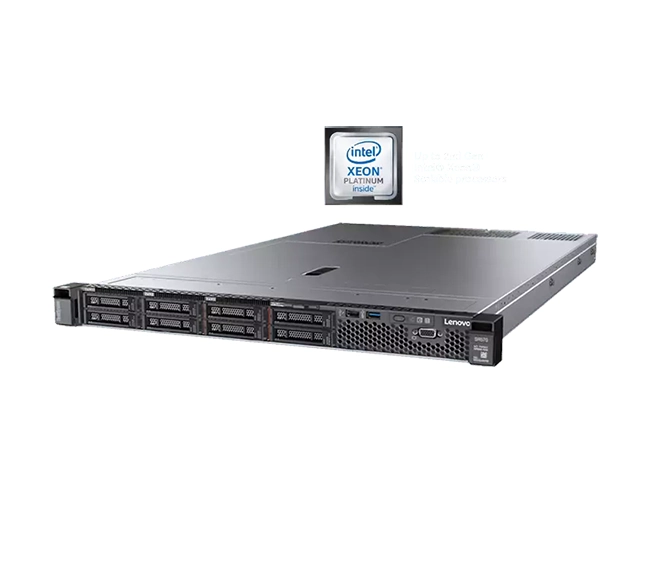

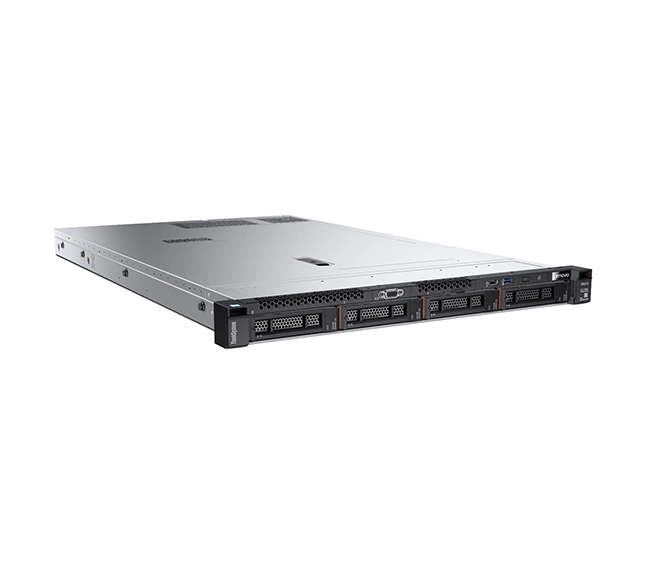

The Lenovo ThinkSystem SR570 is a versatile 1U rack server designed for small to medium-sized businesses. It offers a balance of performance, storage capacity, and reliability, making it suitable for various workloads, including virtualization, cloud computing, and data analytics.

---

Processor

• Supported CPUs: Up to 2× Intel® Xeon® Scalable processors (Bronze, Silver, Gold, or Platinum)
• Maximum Cores per CPU: Up to 26 cores
• Thermal Design Power (TDP): Up to 150W per processor
• Socket Type: LGA 3647
• Chipset: Intel C622

---

Memory

• Maximum Capacity: Up to 1TB using 16 DIMM slots
• Supported Memory Types:
  • RDIMM: Up to 512GB
  • LRDIMM: Up to 1TB
  • Intel® Optane™ DC Persistent Memory
• Memory Speed: Up to 2933MHz
• Features: ECC support, memory mirroring, memory sparing

---

Storage

• Drive Bays:
  • Up to 10× 2.5" hot-swap drives (including optional 4× AnyBay)
  • Up to 4× 3.5" hot-swap drives
• Maximum Internal Storage:
  • 2.5" SSDs: Up to 76.8TB
  • 3.5" HDDs: Up to 48TB
  • NVMe: Up to 30.72TB
  • M.2: Support for 1× or 2× M.2 drives
• Supported RAID Controllers:
  • RAID 530-8i
  • RAID 730-8i
  • RAID 930-8i
• RAID Levels Supported: 0, 1, 5, 6, 10, 50, 60, JBOD

---

Networking

• Integrated NICs:
  • 2× Gigabit Ethernet ports
  • 1× Dedicated management port (RJ-45)
• Optional Network Interfaces:
  • LOM slot supporting up to 4× 1/10 Gb Ethernet ports
  • Mezzanine LOM (ML2) slot for dual-port 10 GbE cards

---

Expansion Slots

• Total Slots: Up to 3 PCIe 3.0 slots
• Slot Configuration:
  • Slot 1: PCIe 3.0 x8 (low-profile)
  • Slot 2: PCIe 3.0 x16 or ML2 x8 (low-profile or full-height, half-length)
  • Slot 3: PCIe 3.0 x8 or x16 (low-profile; requires second processor)

---

Power and Cooling

• Power Supplies:
  • Up to 2× hot-swap/redundant power supplies
  • Options: 550W/750W Platinum, 750W Titanium
• Cooling:
  • 4× LFF or 8× SFF drive bay models: Four (one processor) or six (two processors) hot-swap single-rotor system fans with N+1 redundancy
  • 10× SFF drive bay models: Six hot-swap dual-rotor system fans with N+1 redundancy

---

Management and Security

• Management Tools:
  • Lenovo XClarity Controller (XCC)
  • Lenovo XClarity Administrator
  • Optional Lenovo XClarity Pro
• Security Features:
  • Trusted Platform Module (TPM) 2.1
  • Optional locking bezel and top cover
  • Lenovo ThinkShield security

---

Physical Specifications

• Form Factor: 1U rack-mountable
• Dimensions:
  • Height: 43.0 mm (1.7 inches)
  • Width: 434.4 mm (17.1 inches) without rack latches; 482.0 mm (19.0 inches) with rack latches
  • Depth: 778.3 mm (30.7 inches)
• Weight: Up to 16.0 kg (35.3 lb)

---

Operating System Support

• Microsoft Windows Server
• Red Hat Enterprise Linux
• SUSE Linux Enterprise Server
• VMware vSphere (ESXi)

---

Warranty

• 1-year or 3-year customer replaceable unit and onsite service, next business day 9x5
