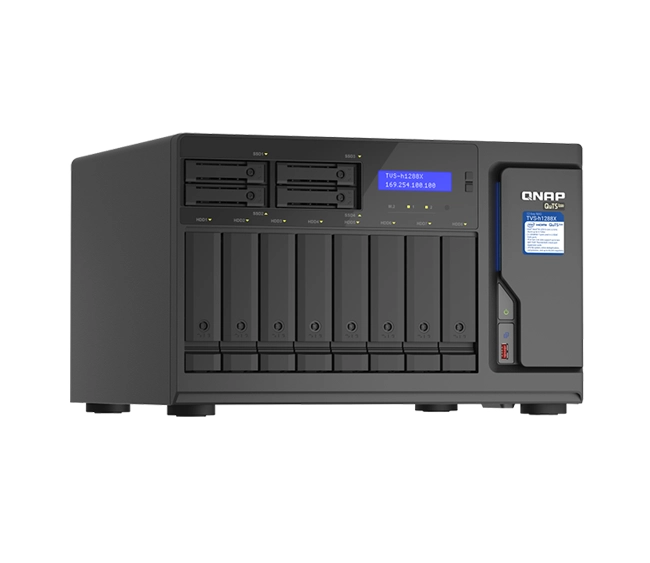

QNAP TVS-h1288X-W1250-16G hybrid NAS

The QNAP TVS-h1288X-W1250-16G hybrid NAS is a powerful enterprise-class NAS solution designed for professionals and businesses requiring fast storage performance, advanced data protection, and high scalability. Featuring an Intel Xeon W-1250 processor and ECC DDR4 memory, it supports ZFS-based QuTS hero OS for enhanced reliability and efficiency in data management, virtualization, and media workflows.

---

Detailed Specifications

Processor & Memory

• CPU: Intel Xeon W-1250 (6 cores, 12 threads, 3.3 GHz base, up to 4.7 GHz turbo)
• Architecture: 64-bit x86 with hardware AES-NI encryption
• Memory: 16 GB ECC DDR4 (2 × 8 GB modules, expandable up to 128 GB via 4 slots)
• System Flash Memory: 5 GB eMMC (dual-boot OS protection)

Storage Configuration

• Drive Bays: 12 total — 8 × 3.5″ SATA 6 Gb/s and 4 × 2.5″ SATA 6 Gb/s (all hot-swappable)
• M.2 Slots: 2 × M.2 NVMe (PCIe Gen 3 ×4) for SSD cache or tiered storage
• Supported RAID Levels: RAID 0, 1, 5, 6, 10, 50, 60, and JBOD
• File System: ZFS (QuTS hero OS) with inline deduplication and compression

Network & Connectivity

• Ethernet Ports: 2 × 10GBASE-T (10 GbE) and 4 × 2.5G RJ-45 ports
• Link Aggregation & Failover: Supported
• PCIe Expansion: 3 × PCIe Gen3 slots for Thunderbolt 3, 25G/40G NICs, GPU cards, or storage expansion

Multimedia & Display

• Integrated Graphics: Intel UHD Graphics P630
• Video Output: 1 × HDMI 1.4b port (4K @ 30 Hz)

Interfaces

• USB Ports: 4 × USB 3.2 Gen 2 (10 Gbps) and 2 × USB 2.0
• Audio: 2 × 3.5 mm microphone inputs, 1 × speaker output

Cooling & Power

• Cooling System: 3 × 90 mm smart fans
• Power Supply: 250 W internal PSU (100–240 V AC)
• Noise Level: Approx. 24 dB(A)
• Power Consumption: ~127 W (operational)

Physical Specifications

• Form Factor: Tower NAS
• Dimensions (H × W × D): 303.8 × 369.9 × 319.8 mm
• Weight: Approx. 13.4 kg

Software & Features

• Operating System: QuTS hero (ZFS)
• Virtualization Support: VMware vSphere, Microsoft Hyper-V, Citrix XenServer
• Backup Solutions: Hybrid Backup Sync, RTRR, rsync, Time Machine, Cloud Sync
• Storage Optimization: SSD caching, Qtier auto-tiering, data deduplication
• Security: AES-256 volume encryption, 2FA, IP access control, snapshots

---

Key Features

• Intel Xeon W-1250 6-core CPU with ECC DDR4 memory
• Dual 10 GbE + quad 2.5 GbE high-speed network interfaces
• 12 bays for HDD/SSD with additional M.2 NVMe cache support
• PCIe expansion for Thunderbolt 3, GPU, or 40 GbE NICs
• 4K HDMI output and integrated graphics for multimedia tasks
• ZFS-based QuTS hero OS with deduplication, compression, and snapshots
• Ideal for virtualization, backup, and enterprise media workflows

---

Meta Description

The QNAP TVS-h1288X-W1250-16G hybrid NAS is a 12-bay Xeon-powered NAS featuring 16 GB ECC RAM, dual 10 GbE + 2.5 GbE ports, M.2 NVMe SSD support, and PCIe expandability—built for business virtualization, 4K media production, and advanced data protection with ZFS. Datasheet
