Ubiquiti EdgeSwitch 24 PoE (500W) Managed Switch

The Ubiquiti EdgeSwitch 24 PoE 500W (ES-24-500W) is a robust Layer 2/3 managed switch featuring 24 Gigabit Ethernet ports, 2 SFP uplinks, and a powerful 500W PoE+ budget. Ideal for enterprise and ISP networks, it delivers advanced switching, VLAN support, and full PoE control per port for seamless high-power device deployment. Here are the very detailed specifications for the Ubiquiti EdgeSwitch 24 PoE (500W, ES‑24‑500W)

---

🛠 Mechanical & Environmental

• Dimensions: 485 × 43.7 × 285.4 mm; Weight: 4.8 kg

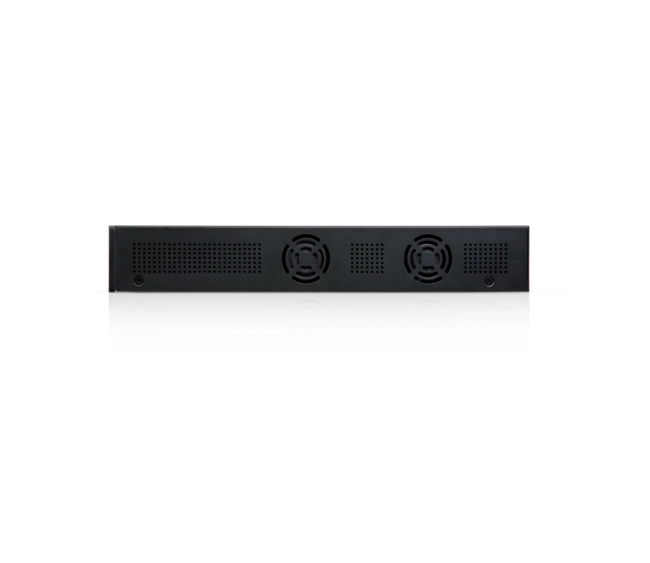

• Form Factor: 1U rack-mountable, dual redundant fans, ETSI 300‑019‑1.4 shock/vibration certified
• Operating Temperature: –5 °C to +40 °C; Humidity: 5–95% non-condensing
• ESD/EMP Protection: ±24 kV air/contact

---

🌐 Ports & Interfaces

• 24× Gigabit RJ45 Ethernet ports (10/100/1000)
• 2× 1 Gbps SFP fiber uplinks
• 1× RJ45 serial port (in/out-band management)
• Status LEDs: PoE, speed/link/activity for RJ45; speed/link/activity for SFP

---

⚡ PoE Power & Supply

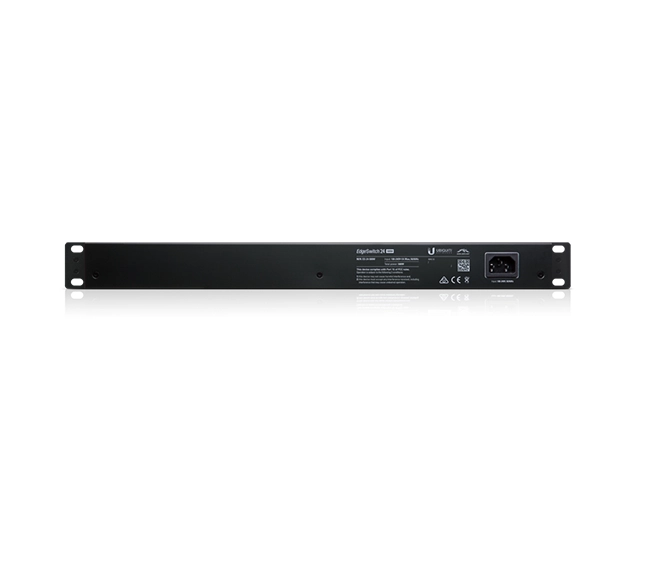

• Internal Universal PSU: AC/DC, 100–240 V input; 500 W total
• Enterprise-grade PoE support:
  • IEEE 802.3af/at up to 34.2 W/port, 50–57 V
  • 24 V passive PoE up to 17 W/port, 20–27 V

---

🧠 EdgeSwitch 24 PoE 500W Performance

• Non-blocking Throughput: 26 Gbps; Switching Capacity: 52 Gbps
• Forwarding Rate: 38.69 Mpps

---

🛞 Management Features

• Layer 2/3 Managed capabilities: VLAN, private/voice VLAN, link aggregation, IGMP/ DHCP snooping, Spanning Tree (STP/RSTP/MSTP), static & policy routing, ACLs, QoS
• Management Access: GUI, CLI (SSH/Telnet), serial console
• PoE control: per-port mode: OFF, 802.3af/at, 24 V Passive, changeable via web UI

---

✅ Certifications & Compliance

• Certifications: CE, FCC, IC; NDAA compliant
• Environmental Standards: ETSI 300‑019 for shock/vibration; industrial-grade resilience

✅ Meta Description

The Ubiquiti EdgeSwitch 24 PoE 500W(ES‑24‑500W) is a 1U rack-mounted Layer 2/3 managed switch featuring 24 Gigabit ports, 2 SFP uplinks, and a robust 500 W PoE+ budget. With non-blocking 26 Gbps throughput, advanced VLAN/routing support, and industrial reliability, it’s ideal for enterprise and high-performance ISP deployments. Datasheet
