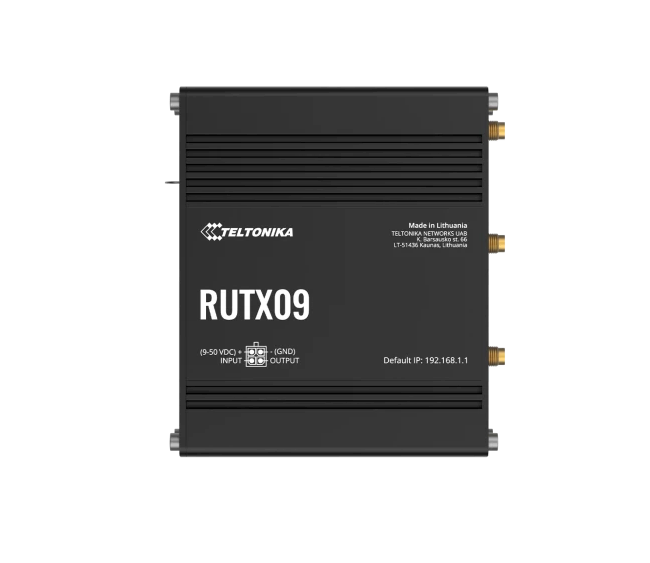

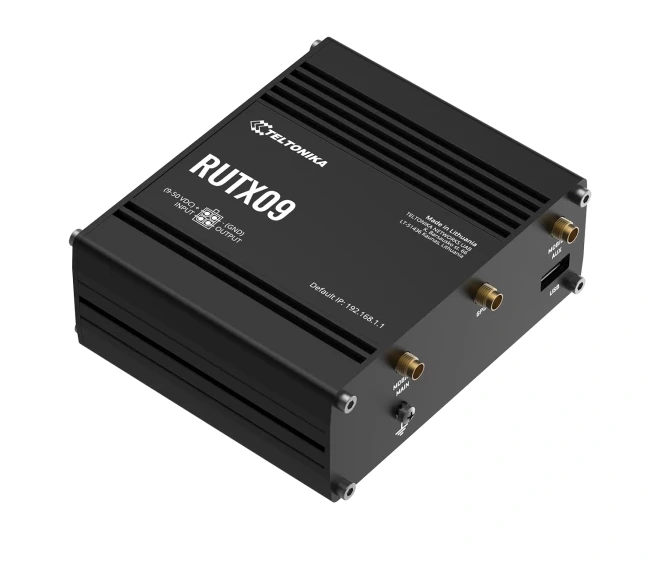

Teltonika RUTX09 LTE-A Cat 6 Gigabit Cellular Router

The Teltonika RUTX09 LTE-A Cat 6 Gigabit Cellular Router is an industrial-grade LTE-A Cat 6 router designed for primary or backup internet connectivity in mission-critical IoT and M2M deployments. With cellular speeds up to 300 Mbps and full networking support, it delivers enterprise-level performance in a compact form.

---

Cellular & SIM

• 4G LTE Cat 6: Up to 300 Mbps downlink, 50 Mbps uplink
• 3G/2G fallback for universal connectivity
• Dual external mini‑SIM slots: Automatic switching for signal strength, data limits, roaming, idle protection

---

Hardware & Memory

• CPU: Qualcomm-based quad-core Arm Cortex-A7 @ 717 MHz
• Memory: 256 MB DDR3 RAM; Flash Storage: 256 MB
• Ethernet: Four Gigabit ports (1 configurable WAN + 3 LAN) supporting VLAN (up to 128 tags)

---

GNSS & Antennas

• GNSS support: GPS, GLONASS, Galileo, BeiDou, QZSS
• Antenna Ports: 2× LTE SMA; 1× GNSS SMA

---

I/O & Ports

• Digital I/O: 1 digital input, 1 open-collector output (max 30 V/300 mA) via 4‑pin connector
• USB Host: 1× USB-A
• SIM reset button and factory reset button

---

Power & Physical

• Input: 9–50 V DC via 4‑pin terminal; supports passive PoE (not IEEE 802.3af/at)
• Consumption: Typical <11–18 W depending on workload
• Housing: Full aluminum with grounding screw; Ingress Protection: IP30
• Mountable: DIN‑rail, wall, or flat surface
• Size: 115 × 95 × 44 mm; Weight: ~455 g

---

Networking & Security

• WAN Failover & Load Balancing: Between cellular and Ethernet using ICMP checks
• Routing: Static & dynamic (BGP, OSPF, RIP, EIGRP, VRRP, policy-based)
• Protocols: IPv4/IPv6, TCP/UDP, ICMP, DHCP, NAT, DNS, VLAN, QoS, PPPoE, SNMP, Syslog
• VPNs Supported: OpenVPN, IPsec, GRE, L2TP, PPTP, SSTP, WireGuard, DMVPN, Stunnel, ZeroTier
• Firewall & Security: Stateful inspection, DoS protection, MAC/IP filtering, VLAN tagging

---

Software & Management

• OS: RutOS (OpenWrt-based)
• Access: Web UI, SSH, CLI, SMS, API (JSON-RPC), SNMP, TR-069
• Monitoring & Automation: RMS integration, SMS alerts, ping or periodic reboot, NTP, Connection watchdog
• IoT Protocols: MQTT, Modbus, DNP3, DLMS, SNTP, Samba, Wake-on-LAN, DDNS

---

Environmental Specifications

• Operating Temp: –40 °C to +75 °C
• Humidity: 10–90% non‑condensing
• EMC & Immunity: Compliant with EN 55032, EN 301 489, EN 61000-4 series
• Approvals: CE/RED, EAC, RoHS, WEEE; Automotive E‑Mark; UL/CSA safety

---

Package Contents

• RUTX09 router
• 18 W power supply
• 2× LTE swivel antennas
• 1× adhesive GNSS antenna (3 m cable)
• SIM adapters, Ethernet cable, Quick Start Guide, RMS flyer

---

Meta Description

Teltonika RUTX09 is a rugged LTE-A Cat 6 industrial router featuring dual SIM, Carrier Aggregation (up to 300 Mbps), Gigabit Ethernet, GNSS, USB host, digital I/O, advanced VPN and firewall support, and full remote management—all in a compact aluminum housing. Datasheet
