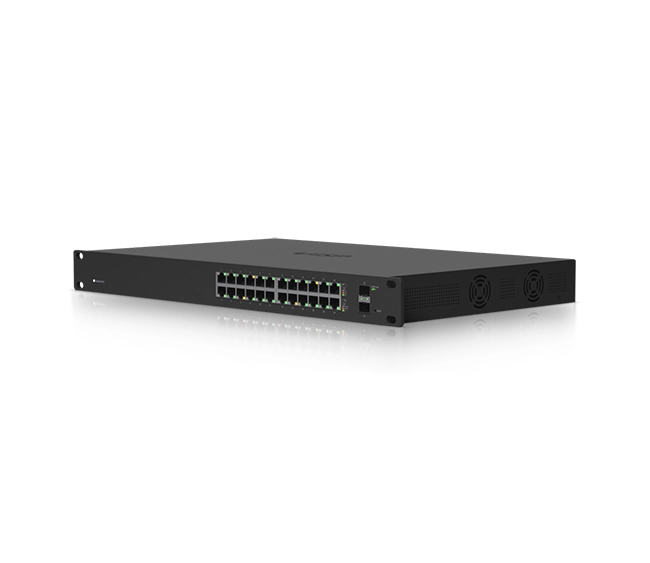

Ubiquiti EdgeSwitch 24 PoE (250W) Managed Switch
KSh 45,500(KSh 52,780 Incl VAT)
- 24× Gigabit RJ45 ports with 802.3af/at and 24 V passive PoE support
- 2× 1 Gbps SFP uplink ports for fiber connectivity
- 250 W total PoE power budget with auto-sensing per port
- 52 Gbps switching capacity and 38.69 Mpps forwarding rate
- Layer 2 and Layer 3 managed features via intuitive web UI or CLI
- Rackmountable 1U design with silent fan cooling
- Comprehensive VLAN, STP/RSTP, link aggregation, and DHCP snooping support
- Ideal for high-performance enterprise and ISP networks
SKU: ES-24-250WCategory: Networking Infrastructure
The Ubiquiti EdgeSwitch 24 PoE (250W) is a high-performance managed switch with 24 Gigabit RJ45 ports, 2 SFP uplinks, and a robust 250 W PoE+ budget. Designed for enterprise and ISP environments, it offers advanced Layer 2/3 switching, 52 Gbps capacity, and seamless device management, making it ideal for powering and managing high-demand network deployments.
Here are the very detailed specifications for the Ubiquiti EdgeSwitch 24 PoE (250W, ES‑24‑250W):
🛠 Mechanical & Environmental
- Dimensions: 485 × 43.7 × 285.4 mm (19.1″ × 1.7″ × 11.2″)
- Weight: ~4.7 kg (10.4 lb)
- Form Factor: 1U rack-mountable with dual redundant fans; meets ETSI 300‑019‑1.4 shock/vibration standards
- Operating Range: –5 °C to +40 °C, 5–95% non-condensing humidity
- ESD/EMP Protection: ±24 kV air/contact
🌐 Ports & Interfaces
- 24 × Gigabit RJ45 Ethernet Ports (supports 10/100/1000 Mbps)
- 2 × 1 Gbps SFP Ports for fiber uplinks
- 1 × RJ45 Console Port; supports in- and out-of-band management
- Status LEDs: Per-port Speed/Link/Activity & PoE indicators; SFP port LEDs
⚡Ubiquiti EdgeSwitch 24 PoE Power & Supply
- Internal PSU: 250 W AC/DC; universal 100–240 V input
- Total PoE Budget: 250 W
- Per-Port Power Options:
- IEEE 802.3af/at (PoE+) up to 34.2 W per port (Pins 1,2+; 3,6–)
- 24 V passive PoE up to 17 W per port (Pins 4,5+; 7,8–)
🔁 Switching Performance
- Non-blocking Throughput: 26 Gbps
- Switching Capacity: 52 Gbps
- Forwarding Rate: 38.69 Mpps
🧠 Features & Protocol Support
- Layer 2/3 Managed: VLAN, voice & private VLAN, link aggregation, DHCP snooping, IGMP snooping, Spanning Tree (802.1D/S/W), RSTP, MSTP, optional routing capabilities
- Interfaces: Fully managed via web UI, CLI (SSH/Telnet), and serial console
✅ Meta Description
Ubiquiti EdgeSwitch 24 PoE (ES‑24‑250W) is a 1U managed Layer 2/3 switch featuring 24× Gigabit ports, 2× SFP uplinks, 250 W PoE+, 52 Gbps switching, and advanced enterprise features—ideal for growing networks. DatasheetRelated Products
