Tp-Link Gigabit PCI Express Network Adapter - TG-3468

The Tp-Link Gigabit PCI Express Network Adapter - TG-3468 is a high-performance Gigabit PCI Express network adapter designed to deliver reliable wired network connectivity with speeds up to 1000 Mbps. It’s ideal for upgrading desktops to gigabit networking for faster file transfers, seamless online gaming, and smooth HD video streaming. The TG-3468 features advanced features like Wake-on-LAN and VLAN tagging, making it suitable for both home and office networks.

Detailed Specifications

Interface:

• PCI Express 1.0a

Standards and Protocols:

• IEEE 802.3
• IEEE 802.3u
• IEEE 802.3ab

Data Rate:

• 10/100/1000 Mbps (auto-negotiation)

Port:

• 1 × RJ45 Gigabit Ethernet port

Cable Support:

• 10BASE-T: UTP category 3, 4, 5 cable (up to 100 m)
• 100BASE-TX: UTP category 5, 5e cable (up to 100 m)
• 1000BASE-T: UTP category 5, 5e, 6 cable (up to 100 m)

LED Indicators:

• Activity
• Link

Supported Features:

• Wake-on-LAN
• Auto MDI/MDIX
• 802.1Q VLAN tagging
• Flow Control (IEEE 802.3x)
• Jumbo Frame support

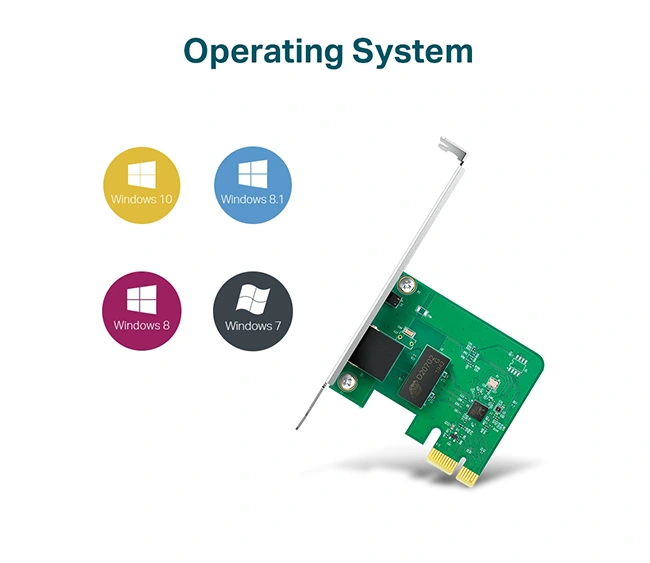

Compatibility:

• Windows 11/10/8.1/8/7/Vista/XP
• Linux

Dimensions:

• 4.8 × 2.8 × 0.8 in (120 × 70 × 21.5 mm)

Package Contents:

• TG-3468 Gigabit PCI Express Network Adapter
• Low-profile bracket
• Resource CD with drivers and utility (may vary by packaging)
• Quick installation guide

Key Features

• 10/100/1000 Mbps auto-negotiation for optimal performance
• PCIe interface for faster data transfer than PCI
• Wake-on-LAN and VLAN support for advanced network management
• Compact size with low-profile bracket for small form factor PCs
• Plug and play installation with wide OS compatibility
