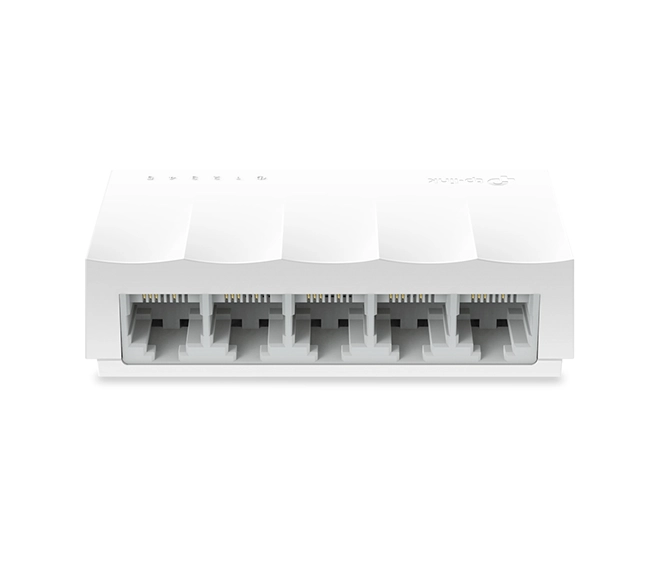

TP-Link 5-Port Switch (TL-LS1005)

KSh 5,000(KSh 5,800 Incl VAT)

5× 10/100Mbps Auto-Negotiation RJ45 ports, supporting Auto-MDI/MDIX
Green Ethernet technology saves power consumption
IEEE 802.3X flow control provides reliable data transfer
Plastic casing and desktop design
Plug and play, no configuration required
Fanless design ensures quiet operation

SKU: TL-LS1005Category: Networking Infrastructure

The TP-Link 5-Port Switch (TL-LS1005) is a 5-port 10/100 Mbps desktop switch designed for expanding wired network capacity with ease. With plug-and-play installation, auto-negotiation, and auto-MDI/MDIX support on all ports, this compact unmanaged switch is ideal for home offices, small business networks, or desktop setups. The device features a fanless design for silent operation, energy-efficient technologies, and solid performance for everyday networking tasks.

🧠 Hardware Specifications

Model Name: TL-LS1005
Type: Unmanaged Fast Ethernet Switch
Network Ports: 5 × 10/100 Mbps RJ45 ports
Switching Method: Store-and-forward
MAC Address Table: 2K entries
Packet Forwarding Rate: 0.74 Mpps
Backplane Bandwidth: 1 Gbps
Flow Control: IEEE 802.3x full duplex

🌐 Standards & Protocols

IEEE 802.3
IEEE 802.3u
IEEE 802.3x

⚡ Power Specifications

Power Supply: External 5V / 0.6A DC adapter
Max Power Consumption: 1.63 W
Heat Dissipation: 5.56 BTU/h

📦 Physical Specifications

Dimensions: 83.6 × 45.7 × 22.8 mm (3.3 × 1.8 × 0.9 in)
Enclosure Type: Plastic
Cooling: Fanless, passive cooling
Mounting: Desktop

🌱 Environmental Characteristics

Operating Temperature: 0°C to 40°C
Storage Temperature: -40°C to 70°C
Operating Humidity: 10% to 90% RH non-condensing
Storage Humidity: 5% to 90% RH non-condensing

📝 Meta Description

TP-Link TL-LS1005 is a 5-port 10/100 Mbps unmanaged Ethernet switch with plug-and-play setup, silent fanless operation, energy-efficient technology, and compact desktop design—ideal for home and small office networking expansion. Datasheet
