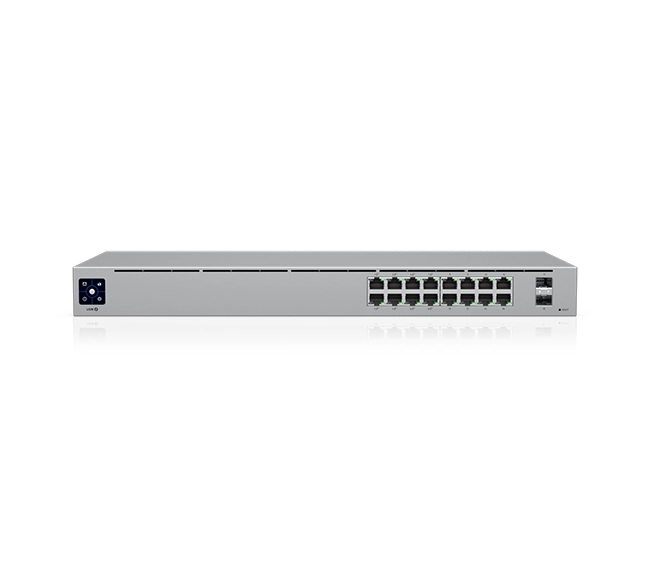

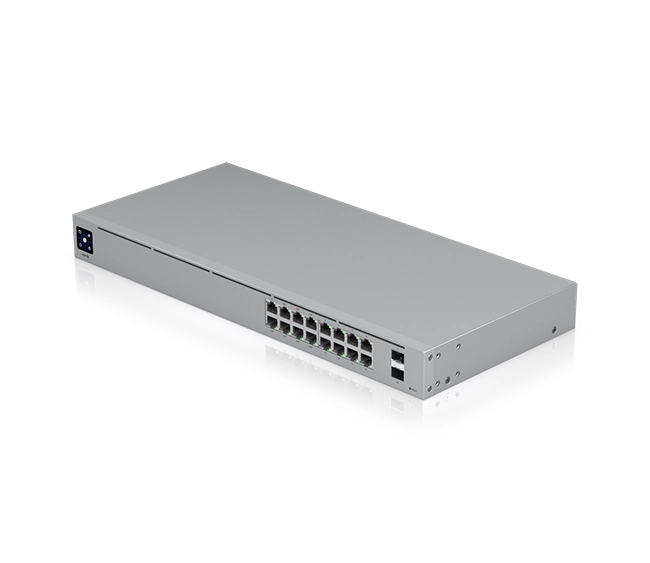

Ubiquiti UniFi Standard 16 PoE Switch (USW-16-PoE)

The UniFi USW-16-PoE is a silent, rack-mountable Layer 2 switch with 16 GbE ports, 8 PoE+ outputs, 2 SFP uplinks, a 42W PoE budget, touchscreen display, and full UniFi Controller support for seamless network management.

---

🛠️ UniFi USW‑16‑PoE – Detailed Specs

🔌 Ports & PoE

• 16× 1 GbE RJ45 ports, with 8 auto-sensing 802.3af/at PoE+ ports (up to 32 W per port)
• 2× 1 GbE SFP uplink ports for fiber connectivity
• Total PoE budget: 42 W

⚡ Performance

• Switching capacity: 36 Gbps
• Non‑blocking throughput: 18 Gbps
• Forwarding rate: ~27 Mpps

🔄 Layer 2 Features

• Supports 1,000 VLANs, LACP, STP/RSTP, QoS, IGMP snooping (advanced), jumbo frames, 802.1X, ACLs, port mirroring, storm control, voice VLAN, and LLDP‑MED

🧩 Hardware & Design

• 1.3″ touchscreen display, fanless (silent) design
• Rack-mountable (1U) chassis; dimensions: 442 × 200 × 44 mm; weight: 2.8 kg (without brackets)

🏋️ Power & Heat

• Internal 60 W AC/DC power supply
• Power draw (excluding PoE): 18 W; max 60 W (with full PoE)
• Heat output: ~61 BTU/hr

🌡️ Environmental & Compliance

• Operating temperature: –5 °C to 40 °C; humidity: 10–90% non-condensing
• Certifications: CE, FCC, IC, Anatel; NDAA compliant

🧠 Management

• Managed via UniFi Network Controller (v7.2.94+ / v8+)

---

📊 Quick Specs Overview

Feature	Specification
Ethernet Ports	16 × 1 GbE RJ45 (8 PoE+) + 2 × 1 GbE SFP
Total PoE Budget	42 W
Switching	36 Gbps / 18 Gbps throughput / ~27 Mpps forwarding
Layer 2 Support	VLANs, QoS, LACP, STP/RSTP, IGMP, jumbo frames, ACLs
Display & Cooling	1.3″ touchscreen; fanless, silent design
Form Factor	1U rack or desktop; 442×200×44 mm; ~2.8 kg
Power Supply	Internal 60 W AC/DC; max power 60 W
Environment	–5 °C to 40 °C; 10–90% RH; NDAA compliant
Controller Support	UniFi Network Controller v7.2.94+
