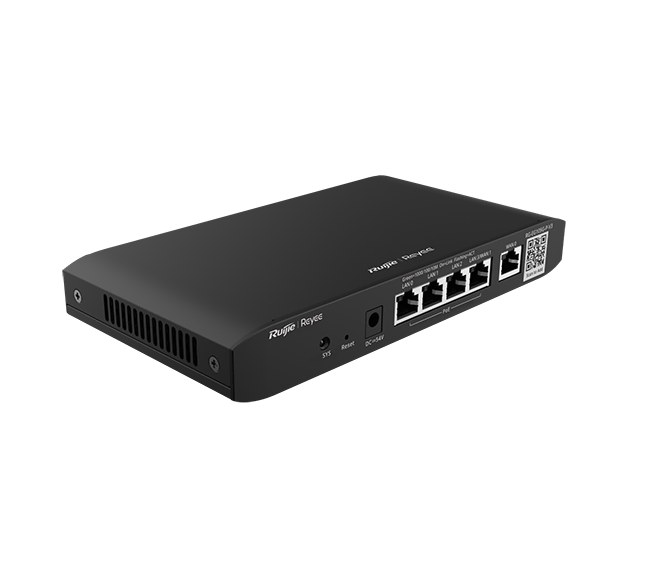

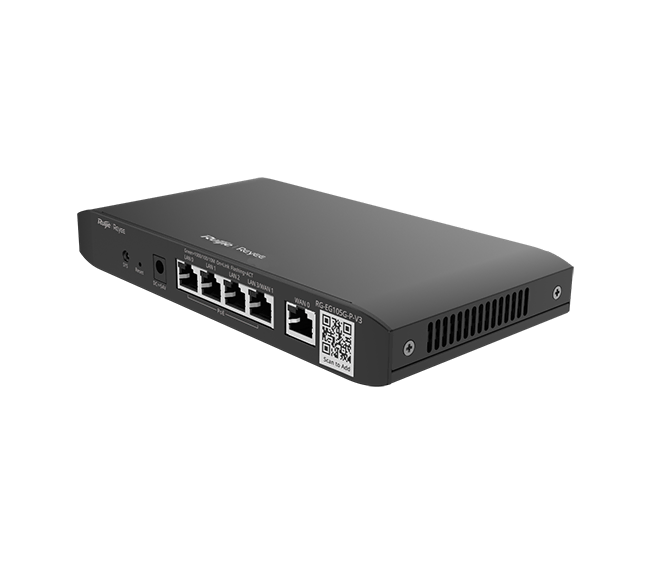

Ruijie RG-EG105G-P-V3 Reyee Cloud Managed PoE Router

The RG-EG105G-P-V3 is a compact, cloud-managed 5-port Gigabit router designed for small offices and smart networks. It features 1 WAN and 4 PoE/PoE+ LAN ports with a 54W PoE power budget, making it ideal for powering IP cameras, access points, or VoIP phones. With 600 Mbps throughput (boostable to 1000 Mbps in Turbo Mode) and support for up to 100 concurrent users, it ensures fast and reliable connectivity. The router supports dual WAN for load balancing and failover, and comes with built-in VPN support including IPsec, L2TP, PPTP, and OpenVPN for secure remote access. Managed via Ruijie Cloud or the Reyee mobile app, it also includes robust firewall protection, app/web filtering, and captive portal authentication. Its fanless, wall/desktop-mountable design makes it a practical and efficient choice for modern networking environments. Here are the detailed specifications for the RG‑EG105G‑P‑V3 5‑Port Gigabit Cloud‑Managed Router:

---

🔌 Physical & Hardware

• Ports
  • 1 × fixed WAN port (10/100/1000 Base‑T)
  • 4 × fixed LAN ports (10/100/1000), all PoE/PoE+ (802.3af/at) capable
  • 1 × LAN/WAN‑switchable gigabit port
• PoE Power Budget
  • Total 54 W
• Performance & Processor
  • Throughput: 600 Mbps (standard), up to 1000 Mbps in Turbo Mode
  • CPU: Dual‑core 880 MHz
  • RAM: 128 MB DDRIII, Storage: 32 MB SPI flash
• Throughput & Users
  • Supports ~100 concurrent users

---

🌐 Networking & Management

• WAN & Routing
  • Dual WAN support: Load balancing and failover
  • WAN port mode: Active/standby, source-IP/session-based balancing
  • IPv4 & IPv6 support
  • Dynamic/static routing, RIP v2/3, OSPF v2/v3, PBR
• VLAN & Traffic Control
  • Supports 16 VLANs, VLAN priority (802.1p)
  • Smart flow control, QoS by app/user, real‑time traffic monitoring
• Security & Firewall
  • Stateful firewall, ACLs (including time/IP-based)
  • Attack defenses: anti-flood, spoofing, session limits, port‑scan protection
• Authentication Options
  • Radius + local/cloud portals with accounts, vouchers, QR, SMS, etc.

---

🛡️ VPN & Remote Access

• VPN Support
  • Server/Client: IPSec, L2TP, PPTP, OpenVPN
  • Tunnels: up to 8 combined IPsec + L2TP/PPTP, up to 16 OpenVPN
  • Performance: ~28 Mbps for IPsec, ~190 Mbps L2TP/PPTP, ~20 Mbps OpenVPN

---

🌐 Cloud & Local Management

• Management Options
  • eWEB web GUI, Ruijie Cloud, or Reyee mobile app
  • In Router Mode: can manage up to 32 APs/NBS + 128 ES switches
  • AC Mode: up to 300 APs/NBS + 128 ES switches
• Extra Features
  • Captive portal, app/block filtering (~300 apps), web filtering
  • DHCP/DNS/NTP/DDNS services, PPPoE server (up to 35 users)

---

🧊 Physical Specs & Warranty

• Design & Build
  • Dimensions: 206.5 × 108.5 × 28 mm; Weight: ~0.43 kg
  • Mounting: desktop or wall; Fanless, IP20-rated, 4 kV surge protection
  • Operating temp: 0 °C – 40 °C; Humidity: 10 %–90 % non-condensing
• Power
  • Adapter: DC 54 V/1.1 A; power consumption < 60 W with PoE load
• Warranty
  • 3 years

---

✅ Summary Table

Feature	Details
Ports	1 WAN + 4 PoE+ LAN + 1 switchable jam port
PoE Budget	54 W
Throughput	600 Mbps (1 Gbps turbo)
Users Supported	≈ 100 concurrent
CPU / RAM / Flash	Dual-core 880 MHz; 128 MB DDRIII; 32 MB flash
WAN Features	Load balance, failover, multi‑protocol routing
VPN	IPSec, L2TP, PPTP, OpenVPN; up to 16 tunnels
Management	Cloud, web GUI, mobile app; manage APs/switches
Security	Firewall, app/web filtering, attack defense
Physical	206×108×28 mm; wall/desktop; fanless
Power & Warranty	54 V DC, < 60 W, 3‑year warranty
