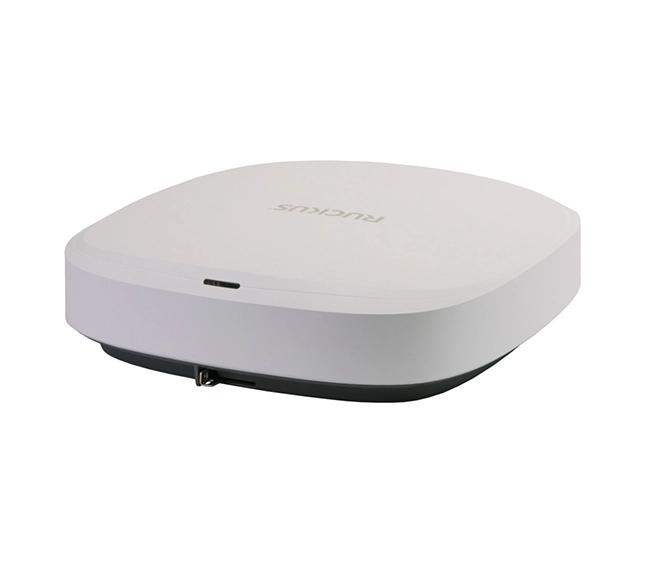

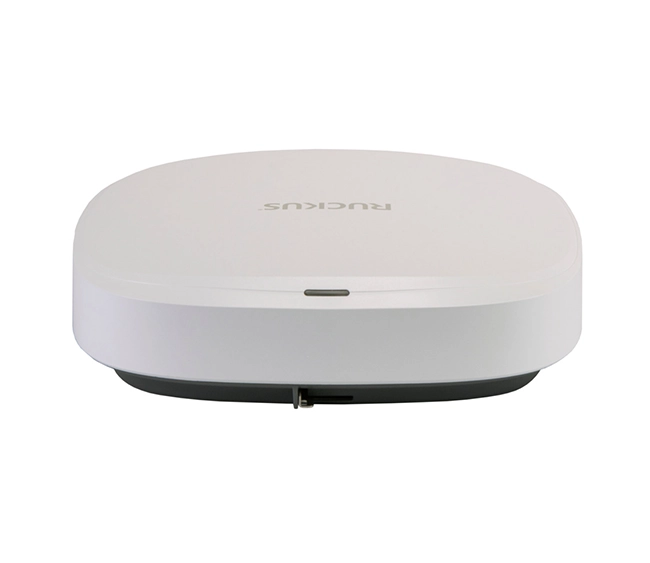

RUCKUS R770 Indoor Access Point

The RUCKUS R770 Indoor Access Point is the flagship Wi-Fi 7 (802.11be) indoor access point designed for ultra-high-density and mission-critical wireless environments. Leveraging cutting-edge tri-band operation, 320 MHz channels, and Multi-Link Operation (MLO), the R770 delivers unprecedented wireless capacity, ultra-low latency, and exceptional reliability for next-generation applications. With 12 spatial streams, advanced OFDMA/MU-MIMO, and BeamFlex+ adaptive antenna technology, this AP supports AR/VR, 8K streaming, large-scale IoT, and enterprise workloads with ease.

Detailed Specifications

Wi-Fi Standards:

• IEEE 802.11a/b/g/n/ac/ax/be (Wi-Fi 4/5/6/6E/7)
• Tri-band concurrent: 2.4 GHz, 5 GHz, and 6 GHz
• Multi-Link Operation (MLO) for parallel data paths

Performance:

• Max Data Rate: Up to 18.7 Gbps combined throughput
  • 2.4 GHz: up to 1,376 Mbps (4x4:4)
  • 5 GHz: up to 5,764 Mbps (4x4:4)
  • 6 GHz: up to 11,530 Mbps (4x4:4)
• 320 MHz channel support in 6 GHz band
• MU-MIMO, OFDMA, and 4096-QAM for maximum spectral efficiency
• Client Capacity: Over 1,500 concurrent devices

Antenna & RF:

• BeamFlex+ adaptive antennas with polarization diversity
• Integrated omnidirectional high-gain antennas
• Antenna Gain:
  • 2.4 GHz: 5.0 dBi
  • 5 GHz: 6.0 dBi
  • 6 GHz: 6.0 dBi
• Channelization: 20/40/80/160/320 MHz

Interfaces:

• 1 × 10 GbE RJ-45 port with PoE++ (802.3bt)
• 1 × 5 GbE RJ-45 port
• 1 × USB 2.0 port
• 1 × Reset button

Power:

• Input: PoE++ (802.3bt) or 48V DC input
• Power Consumption:
  • Typical: ~28W
  • Peak: ~32W

Security:

• WPA2, WPA3, and WPA3-Enterprise
• AES encryption with 256-bit support
• Protected Management Frames
• Enhanced MLO security for Wi-Fi 7
• DPSK and advanced L2/L3/L4 ACLs

Management:

• Compatible with RUCKUS SmartZone, ZoneDirector, Unleashed, or RUCKUS Cloud
• SNMP v1/v2c/v3
• Web-based GUI and CLI

Physical:

• Dimensions: 260 mm × 260 mm × 67 mm
• Weight: 1.4 kg
• Mounting: Ceiling or wall mount options

Environmental:

• Operating Temperature: 0°C to 50°C
• Humidity: 10%–95% non-condensing

Key Features

• Wi-Fi 7 tri-band AP with up to 18.7 Gbps total throughput
• 320 MHz channels and MLO for maximum performance
• Supports 1,500+ concurrent clients in dense deployments
• Dual multi-gig uplinks: 10GbE + 5GbE
• BeamFlex+ antennas for adaptive, high-gain coverage
• Backwards compatible with all previous Wi-Fi generations
