MikroTik CRS318-16P-2S+OUT (netPower 16P)

KSh 41,724(KSh 48,400 Incl VAT)

16 × Gigabit Ethernet ports with 802.3af/at PoE-out
2 × 10G SFP+ fiber uplink ports
Outdoor IP55-rated enclosure
Dual redundant DC power inputs
Managed with SwOS or RouterOS (Level 5 license)
Fanless, passive cooling design
Supports passive PoE and 802.3af/at PoE standards

SKU: CRS318-16P-2S+OUTCategory: Networking Infrastructure

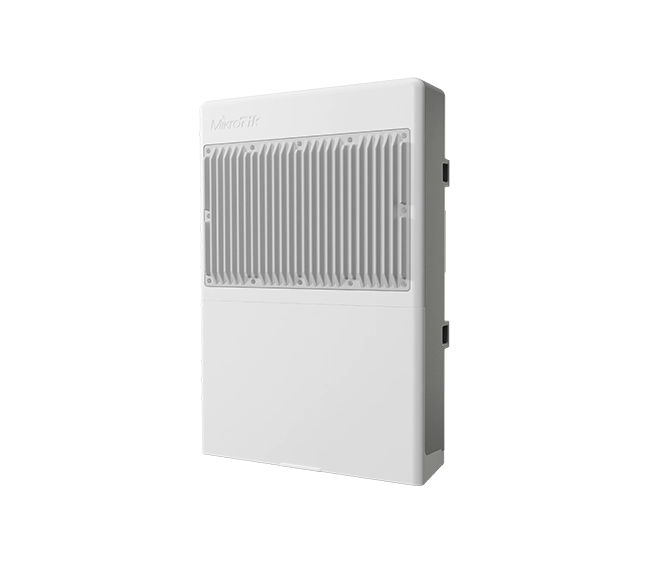

The MikroTik CRS318-16P-2S+OUT Cloud Router Switch is a high-performance outdoor cloud router switch designed for demanding network setups in fiber-to-the-home (FTTH), campus, or ISP deployments. Featuring 16 Gigabit Ethernet ports with PoE-out support and 2 high-speed 10G SFP+ uplink ports, this switch provides reliable and scalable connectivity for outdoor installations.

With passive and 802.3af/at PoE options, dual redundant power inputs, and a weather-resistant IP55-rated enclosure, it’s ideal for powering multiple PoE devices such as IP cameras, access points, and CPEs. Easily manageable via RouterOS or SwOS, the CRS318-16P-2S+OUT offers flexibility, power, and ruggedness for professional networking environments.

The CRS318-16P-2S+OUT is a MikroTik Cloud Router Switch specifically designed for outdoor use. It is part of MikroTik’s netPower series, suitable for fiber-to-the-home (FTTH) and outdoor PoE deployments. This switch is ideal for ISPs, apartment complexes, or campus environments.

🔧 Product Overview

Model Name: CRS318-16P-2S+OUT Product Type: Cloud Router Switch Enclosure: Outdoor, IP55-rated, passive cooling Mounting: Pole and wall mount support

⚙️ Key Specifications

Specification	Details
Ethernet Ports	16 × 10/100/1000 Mbps PoE-out Ethernet ports
PoE Output	Passive PoE and 802.3af/at on ports 1–16 (max 30W/port)
SFP+ Ports	2 × 10G SFP+ ports
Switch Chip	98DX226S
Memory (RAM)	256 MB
Storage	16 MB Flash
CPU	800 MHz 98DX226S (dual-core)
Operating System	SwOS / RouterOS (Level 5 license)
Max Power Consumption	316 W (with attachments); 29 W (without PoE load)
Input Voltage	18–57 V DC via two DC inputs (redundant power)
Cooling Type	Passive (fanless)
Temperature Range	-40°C to +70°C
Dimensions	303 x 212 x 78 mm

⚡ Power & PoE Details

16 PoE-out ports can supply up to 30W per port, shared across a total budget of 315W (with sufficient power input).
Supports both passive PoE and 802.3af/at standards.
Redundant dual input (supports separate power sources for failover).

🌐 MikroTik CRS318-16P-2S+OUT Cloud Router Switch Networking & Use Case

Dual 10G SFP+ uplinks provide high-speed connectivity to a backbone or data center.
Works well in multi-dwelling units (MDUs), campus networks, or fiber distribution hubs.
Designed for outdoor deployments; highly durable with IP55-rated enclosure.
