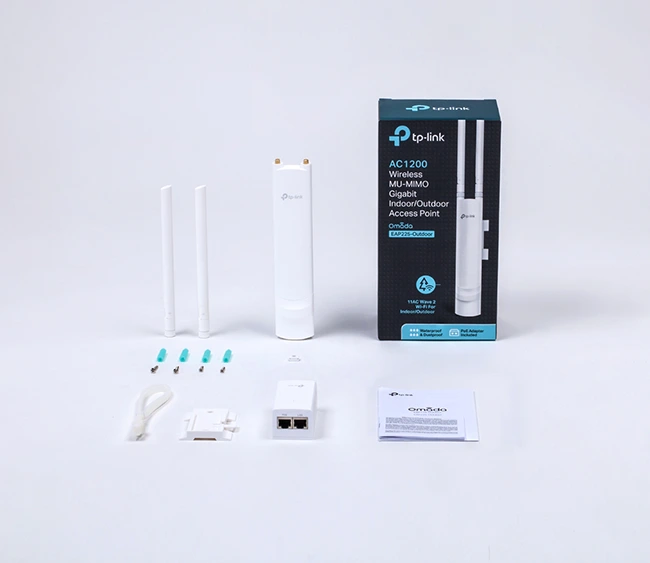

TP-Link AC1200 Wireless MU-MIMO Gigabit Indoor/Outdoor AP

KSh 12,000(KSh 13,920 Incl VAT)

Ideal for Outdoor Environment: IP65 weatherproof enclosure for outdoor Wi-Fi applications.
Fast Dual-Band Wi-Fi: Simultaneous 300 Mbps on 2.4 GHz and 867 Mbps on 5 GHz totals 1167 Mbps Wi-Fi speeds.
Long-Range Coverage: Dedicated high-power amplifier and professional antennas along with the latest generation 802.11ac Wave 2 MU-MIMO technology.
Integrated into Omada SDN: Zero-Touch Provisioning (ZTP), Centralized Cloud Management, and Intelligent Monitoring.
Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
Omada Mesh Technology: Enables wireless connectivity between APs for extended range, making wireless deployments more flexible and convenient.
Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations.
PoE Support: Support both standard 802.3af/at and Passive PoE (PoE adapter included) for flexible installations.

SKU: EAP225-OutdoorCategory: Networking Infrastructure

The TP-Link AC1200 Wireless MU-MIMO Gigabit Indoor/Outdoor AP is designed for extended Wi-Fi coverage in both open and semi-open environments such as campuses, parks, hotels, resorts, and outdoor events. It delivers fast, stable connections with MU-MIMO technology, supports Omada SDN centralized cloud management, and features a durable IP65-rated enclosure for all-weather performance.

Detailed Specifications

Wi-Fi Standards:

IEEE 802.11a/n/ac (5 GHz)
IEEE 802.11b/g/n (2.4 GHz)

Speed Performance:

2.4 GHz: up to 300 Mbps
5 GHz: up to 867 Mbps
Combined total: up to 1200 Mbps

Frequency Bands:

Dual-band: 2.4 GHz and 5 GHz

Antenna Design:

2× detachable 5 dBi omnidirectional antennas
Outdoor-optimized for long-range, wide coverage

Operation Modes:

Access Point Mode
Multi-SSID Mode
Mesh Networking support

Ports:

1× Gigabit Ethernet Port (supports 802.3af PoE and passive PoE)

Coverage & Capacity:

Long-range coverage up to 200 meters+ in open areas
MU-MIMO technology for simultaneous multi-device connections
Supports up to 16 SSIDs (8 per band)

Security:

WPA/WPA2-Enterprise encryption
Captive portal for guest authentication
MAC filtering and access control

Management Features:

Omada SDN cloud and local controller support
Web UI and Omada mobile app management
VLAN support for network segmentation

Durability:

IP65-rated weatherproof housing
Lightning protection: 6 kV
ESD protection: 15 kV

Power Supply:

802.3af PoE or passive PoE (up to 60 meters)
Passive PoE injector included

Mounting Options:

Pole or wall mount (kit included)

Dimensions:

8.8 × 3.1 × 1.8 in (224 × 79 × 60 mm)

Key Features

AC1200 dual-band Wi-Fi with MU-MIMO for faster multi-device connections
IP65 weatherproof enclosure for outdoor durability
Long-range coverage up to 200+ meters in open space
Gigabit Ethernet port with PoE support for flexible installation
Centralized cloud management via Omada SDN
