RUCKUS R760 Indoor Access Point

The RUCKUS R760 Indoor Access Point is a high-performance Wi-Fi 6E (802.11ax) indoor access point designed to deliver ultra-fast, low-latency connectivity in the most demanding enterprise, education, healthcare, and high-density venue environments. Leveraging tri-band operation across 2.4 GHz, 5 GHz, and the new 6 GHz spectrum, the R760 offers up to 8 spatial streams with advanced OFDMA, MU-MIMO, and RUCKUS BeamFlex+ adaptive antennas for optimized coverage and throughput. This AP is ideal for future-proof networks that need to support the latest Wi-Fi 6E devices while maintaining backwards compatibility.

Detailed Specifications

Wi-Fi Standards:

• IEEE 802.11a/b/g/n/ac/ax (Wi-Fi 6/6E)
• Tri-band concurrent: 2.4 GHz, 5 GHz, and 6 GHz

Performance:

• Max Data Rate: Up to 8.35 Gbps combined throughput
  • 2.4 GHz: up to 1,148 Mbps (4x4:4)
  • 5 GHz: up to 2,400 Mbps (4x4:4)
  • 6 GHz: up to 4,804 Mbps (4x4:4)
• MU-MIMO and OFDMA for high efficiency in dense environments
• Client Capacity: Over 1,000 concurrent clients

Antenna & RF:

• BeamFlex+ adaptive antennas with polarization diversity
• Integrated omnidirectional antennas
• Antenna Gain:
  • 2.4 GHz: 4.0 dBi
  • 5 GHz: 5.0 dBi
  • 6 GHz: 6.0 dBi
• Channelization: 20/40/80/160 MHz

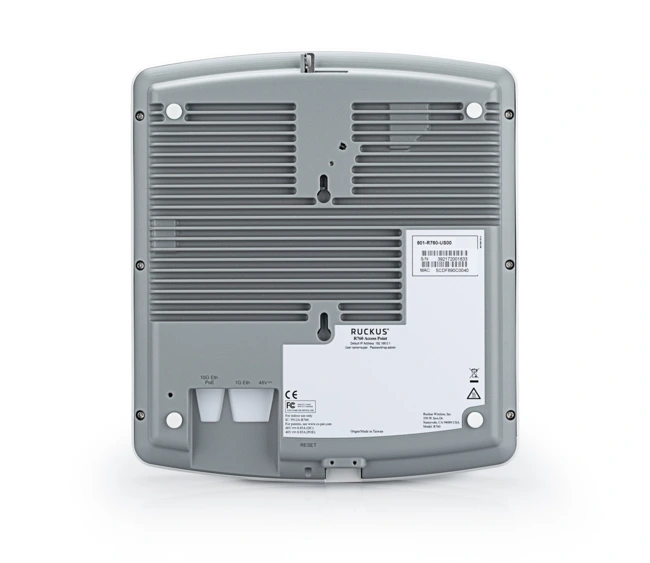

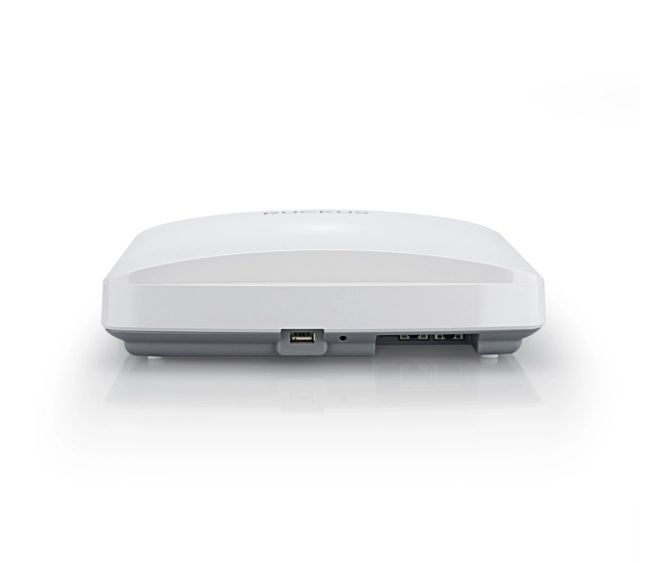

Interfaces:

• 1 × 5 GbE RJ-45 port with PoE++ (802.3bt)
• 1 × 1 GbE RJ-45 port (uplink/downlink)
• 1 × USB 2.0 port
• 1 × Reset button

Power:

• Power Input: PoE++ (802.3bt) or 48V DC input
• Power Consumption:
  • Typical: ~21W
  • Peak: ~25W

Security:

• WPA2, WPA3, WPA2/WPA3 Mixed Mode
• AES encryption
• Protected Management Frames
• Dynamic Pre-Shared Keys (DPSK)
• L2/L3/L4 ACLs and advanced security policies

Management:

• RUCKUS SmartZone, ZoneDirector, Unleashed, or RUCKUS Cloud
• SNMP v1/v2c/v3
• Web-based GUI and CLI

Physical:

• Dimensions: 250 mm × 250 mm × 65 mm
• Weight: 1.3 kg
• Mounting: Ceiling or wall mount options

Environmental:

• Operating Temperature: 0°C to 50°C
• Humidity: 10%–95% non-condensing

Key Features

• Wi-Fi 6E tri-band AP with up to 8.35 Gbps total throughput
• 4x4 MU-MIMO across all three bands for maximum capacity
• Supports over 1,000 clients in ultra-dense environments
• Multi-gig 5GbE port for high-speed backhaul
• BeamFlex+ adaptive antennas for optimized coverage
• Backwards compatible with Wi-Fi 4/5/6 devices

Meta Description

RUCKUS R760 Wi-Fi 6E Indoor Access Point with tri-band 4x4 MU-MIMO, up to 8.35 Gbps, 5GbE uplink, BeamFlex+ antennas, and support for over 1,000 clients in high-density environments. Datasheet
