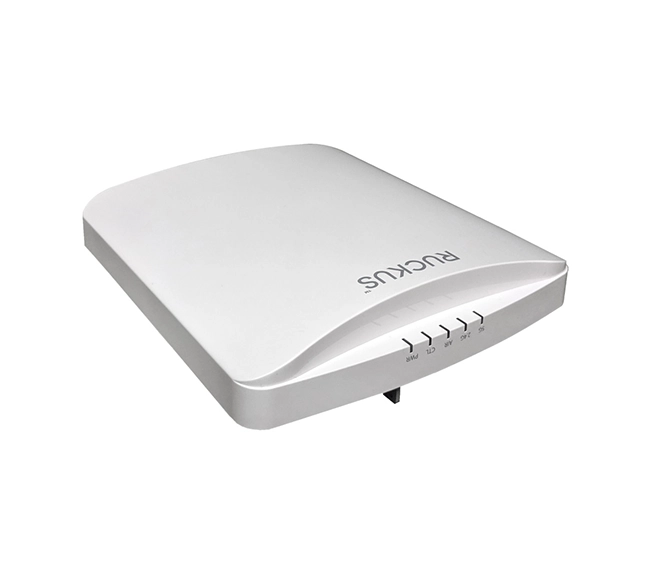

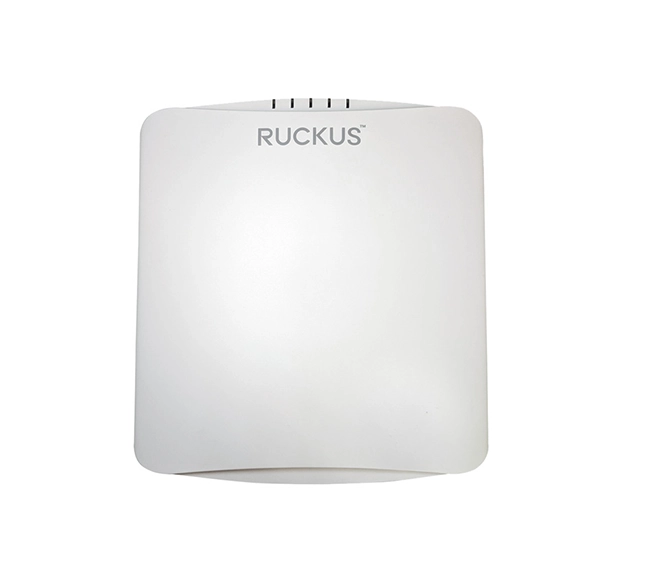

RUCKUS R750 Indoor Access Point

The RUCKUS R750 Indoor Access Point is a premium indoor Wi-Fi 6 (802.11ax) access point designed for ultra-high-density environments such as large offices, universities, stadiums, and conference centers. With its 8 spatial streams, multi-gigabit uplink, and advanced BeamFlex+ adaptive antenna technology, it delivers exceptional throughput, improved efficiency, and unparalleled coverage. The R750 is also Wi-Fi Alliance certified for Wi-Fi 6 and WPA3 security, ensuring enterprise-grade connectivity for mission-critical applications.

Detailed Specifications

Wi-Fi Standards:

• IEEE 802.11a/b/g/n/ac/ax (Wi-Fi 6)
• Dual-band concurrent: 2.4 GHz & 5 GHz

Performance:

• Max Data Rate: 4800 Mbps (1147 Mbps @ 2.4 GHz + 3650 Mbps @ 5 GHz)
• Streams: 8 spatial streams (4x4:4 @ 2.4 GHz, 4x4:4 @ 5 GHz)
• OFDMA & MU-MIMO for simultaneous multi-user performance
• Client Capacity: Up to 1024 concurrent clients

Antenna & RF:

• BeamFlex+ adaptive antenna technology with polarization diversity
• Integrated antennas: 2.4 GHz (4x4), 5 GHz (4x4)
• Antenna Gain: 2.4 GHz: 3 dBi, 5 GHz: 5.7 dBi

Interfaces:

• 1 × 5 GbE RJ-45 port with PoE++ (802.3bt)
• 1 × 1 GbE RJ-45 port
• 1 × USB 2.0 port
• 1 × Reset button

Power:

• Power Input: PoE++ (802.3bt) or 12V DC adapter
• Power Consumption:
  • Idle: ~13W
  • Peak: ~25.5W

Security:

• WPA2, WPA3, WPA2/WPA3 Mixed Mode
• AES encryption
• Secure Boot, L2/L3/L4 ACLs, Dynamic PSK
• Enhanced open and protected management frames

Management:

• Managed via RUCKUS SmartZone, ZoneDirector, Cloudpath, or Unleashed (controller-less)
• SNMP v1/v2c/v3
• Web-based GUI

Physical:

• Dimensions: 220 mm × 220 mm × 48 mm
• Weight: 1.15 kg
• Mounting: Ceiling or wall mount options

Environmental:

• Operating Temperature: 0°C to 50°C
• Humidity: 10%–95% non-condensing

Key Features

• Wi-Fi 6 with 5 GbE uplink for ultra-fast backhaul
• Up to 4800 Mbps total throughput
• OFDMA & MU-MIMO for extreme density performance
• BeamFlex+ adaptive antenna technology for superior coverage
• Supports up to 1024 clients per AP
• Flexible management options including cloud and controller-based solutions
