Lenovo ThinkCentre neo 50s Gen 5 SFF Intel Core i7 14700 12XD005LUM

Datasheet

Short Description

The Lenovo ThinkCentre neo 50s Gen 5 SFF Desktop (12XD005LUM) is a compact, high-performance business workstation engineered for professional environments where desk space is limited but performance cannot be compromised . Powered by the 14th Gen Intel Core i7-14700 processor with 20 cores and 28 threads, featuring 8GB of high-speed DDR5 memory, a 512GB PCIe Gen4 NVMe SSD with Opal 2.0 encryption, and extensive connectivity options, this small form factor desktop delivers exceptional performance, security, and expandability for corporate offices, educational institutions, and power users .

---

Key Sections

Compact Small Form Factor Design

The ThinkCentre neo 50s Gen 5 features a space-saving 8.2L Small Form Factor (SFF) chassis with a sleek Black design with grey bezel, engineered to blend seamlessly into any professional workspace . The compact footprint saves valuable desk space while maintaining full desktop performance and expandability. The chassis includes tool-less access for simplified maintenance and upgrades, making it IT-friendly for enterprise deployments .

Flagship 14th Gen Intel Core i7 Processing

At the heart of the neo 50s Gen 5 is the Intel Core i7-14700 processor from the 14th generation Raptor Lake Refresh family . It features 20 cores (8 Performance cores and 12 Efficient cores) and 28 threads, with P-cores boosting up to 5.4 GHz and a 33MB Intel Smart Cache .

This flagship processor delivers exceptional multi-threaded performance for demanding business applications, data analysis, and multitasking. The integrated Intel UHD Graphics 770 provides crisp visuals for office productivity and multimedia content . The Intel B760 chipset ensures enterprise-grade stability and reliability .

Fast DDR5 Memory & PCIe Gen4 Storage

The neo 50s Gen 5 is equipped with 8GB of high-speed DDR5 5600MHz memory, providing excellent bandwidth for smooth multitasking and application responsiveness . The system features two DDR5 UDIMM slots with dual-channel support, allowing expansion up to 64GB .

The 512GB PCIe 4.0x4 NVMe SSD with Opal 2.0 encryption delivers rapid boot times, quick application loading, and fast file access . For additional storage, the SFF chassis supports up to two storage drives, including a 3.5" HDD for expanded capacity .

Intelligent Cooling & Energy Efficiency

The neo 50s Gen 5 features Intelligent Cooling Engine (ICE) 7.0, which adapts cooling performance to maintain system efficiency and longevity . The 260W 90% efficiency power supply ensures energy-efficient operation while delivering stable performance . The system also carries TÜV Ultra Low Noise certification for quiet operation in professional environments .

Comprehensive Connectivity & Port Selection

The neo 50s Gen 5 offers extensive connectivity options for versatile workspaces :

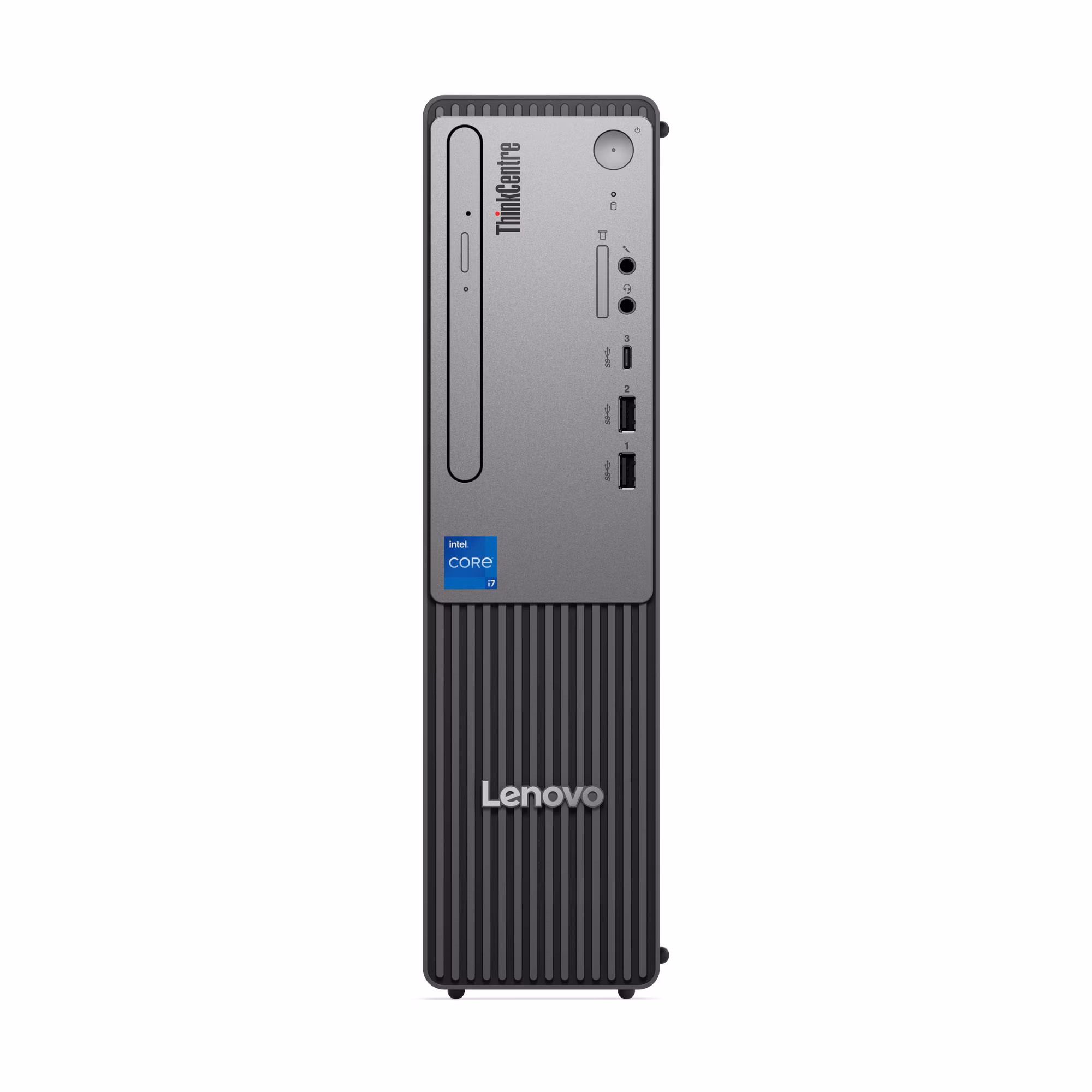

Front Ports:

• 1x USB-C (USB 5Gbps / USB 3.2 Gen 1) with 15W charging

• 2x USB-A (USB 5Gbps / USB 3.2 Gen 1)

• 1x Headphone / microphone combo jack (3.5mm)

• 1x Microphone (3.5mm)

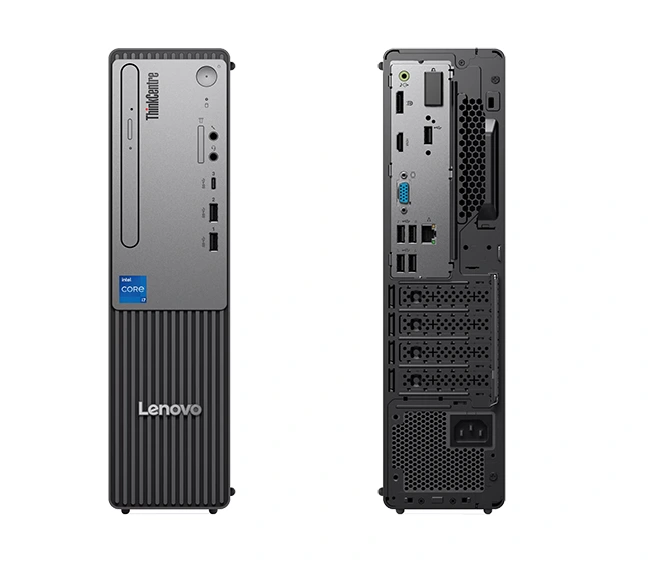

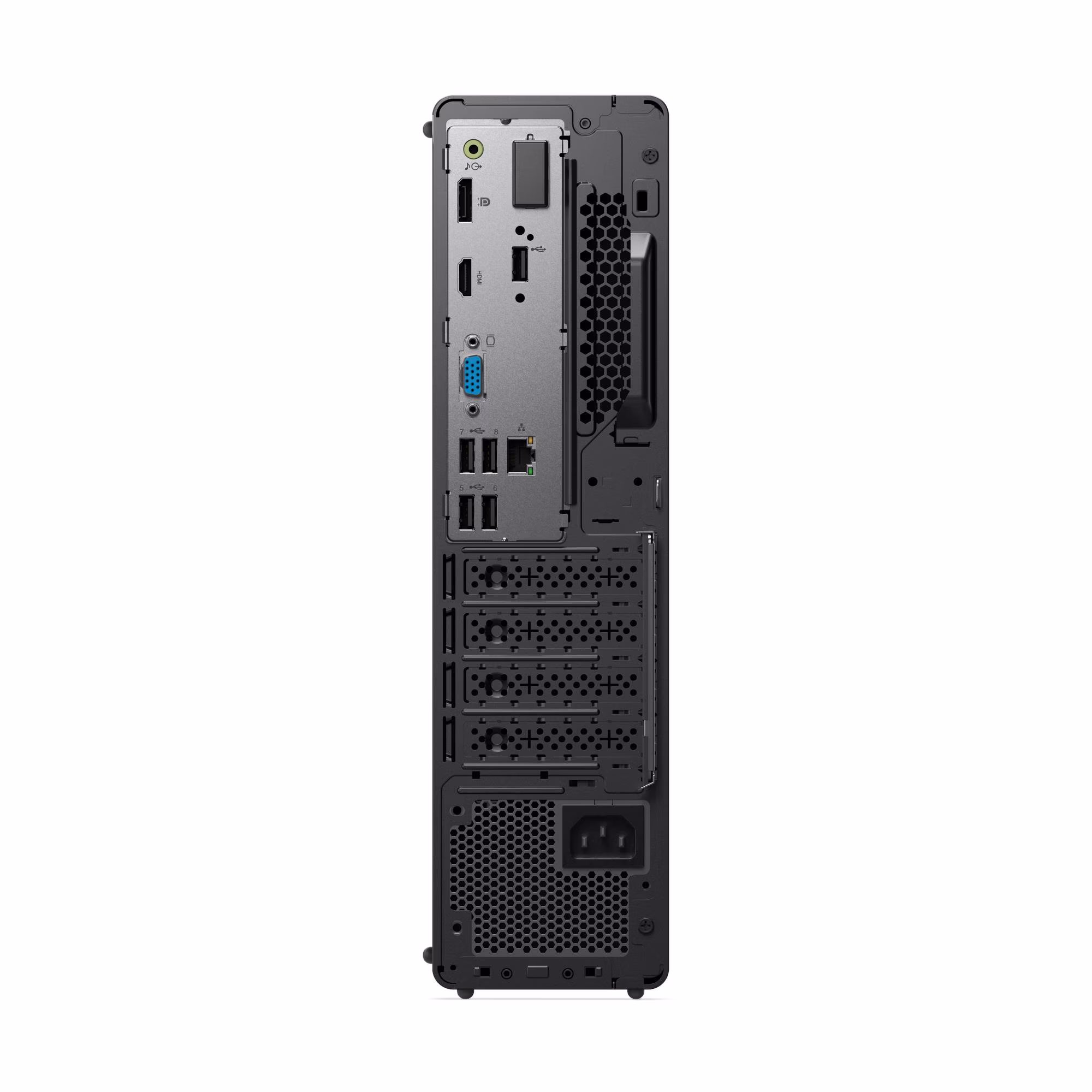

Rear Ports:

• 4x USB-A (Hi-Speed USB / USB 2.0), one supports Smart Power On

• 1x HDMI 2.1 TMDS

• 1x DisplayPort 1.4

• 1x VGA

• 1x Ethernet (RJ-45)

• 1x Line-out (3.5mm)

The Intel Wi-Fi 6 AX201 (2x2) and Bluetooth 5.2 provide fast, reliable wireless connectivity . The Gigabit Ethernet port ensures stable wired networking for demanding tasks. The USB-C port with 15W charging powers compatible devices directly from the desktop .

Enterprise-Grade Security & ThinkShield Protection

Work with peace of mind using comprehensive ThinkShield security features . The system includes discrete TPM 2.0 (FIPS 140-2 certified) for data encryption . The Kensington lock slot and padlock loop provide physical security protection . Additional features include Smart USB Protection based on BIOS to prevent unauthorized access via peripherals .

Complete Out-of-the-Box Solution

The neo 50s Gen 5 includes the USB Calliope Keyboard and USB Calliope Mouse, providing a complete out-of-the-box experience . The system ships without an operating system (FreeDOS), offering flexibility for enterprise custom imaging and deployment . The 3-year carry-in warranty provides long-term reliability for enterprise deployments .

---

Core Features

• The 14th Gen Intel Core i7-14700 processor with 20 cores and 28 threads delivers exceptional performance for demanding business applications .

• 8GB DDR5 5600MHz memory with expansion up to 64GB guarantees fluid multitasking .

• High-speed 512GB PCIe 4.0 NVMe SSD with Opal 2.0 encryption enables rapid boot times and fast file access .

• Extensive connectivity with USB-C (15W charging), HDMI 2.1, DisplayPort 1.4, VGA, and Gigabit Ethernet .

• Intel Wi-Fi 6 AX201 and Bluetooth 5.2 deliver fast, reliable wireless connectivity .

• Compact 8.2L SFF design with tool-less chassis simplifies maintenance and upgrades .

• Integrated Intel UHD Graphics 770 with support for multiple display outputs .

---

Performance & Utility Features

• The Intel Core i7-14700 utilizes advanced hybrid architecture with 8 P-cores and 12 E-cores for optimal power efficiency and computing speed .

• Intel UHD Graphics 770 provides crisp visuals for office productivity, presentations, and multimedia content .

• The Intel B760 chipset ensures enterprise-grade stability and reliability .

• Versatile port selection including HDMI 2.1, DisplayPort 1.4, VGA, and USB-C ensures seamless connectivity to displays and peripherals .

• The USB-C port with 15W charging powers compatible devices directly from the desktop .

• 3-in-1 card reader and 1W internal speaker add convenience for everyday use .

• Intelligent Cooling Engine (ICE) 7.0 ensures adaptive cooling for quiet, efficient performance .

• TÜV Ultra Low Noise certification ensures minimal disturbance in professional environments .

---

Design, Build & Sustainability

• The compact 8.2L SFF design with sleek Black chassis and grey bezel fits seamlessly into any professional workspace .

• Tool-less chassis design simplifies maintenance and upgrades for IT administrators .

• ENERGY STAR certified and EPEAT Gold registered for environmental sustainability .

• Constructed with sustainable materials including recycled content .

• The 3-year carry-in warranty provides long-term reliability for enterprise deployments .

---

Technical Specifications Summary

• Model / Part Number: Lenovo ThinkCentre neo 50s Gen 5 SFF (12XD005LUM)

• Processor: Intel Core i7-14700 (20 Cores: 8P + 12E, Up to 5.4 GHz Max Turbo, 33MB Intel Smart Cache)

• Graphics: Integrated Intel UHD Graphics 770

• Chipset: Intel B760

• Memory: 8 GB DDR5 5600MHz RAM (1 x 8GB UDIMM, Upgradable to 64GB, 2 Slots)

• Storage: 512 GB SSD M.2 2280 PCIe 4.0x4 NVMe Opal 2.0

• Storage Support: Up to 2 drives (1x M.2 SSD + 1x 3.5" HDD)

• Operating System: No OS (FreeDOS)

• Optical Drive: None (No ODD)

• Audio: High Definition Audio, Realtek ALC623-CG, 1W Internal Speaker

• Wireless Connectivity: Intel Wi-Fi 6 AX201 (2x2) and Bluetooth 5.2

• Ethernet: Gigabit Ethernet (RJ-45)

• Power Supply: 260W 90% Efficiency

• Form Factor: Small Form Factor (SFF) 8.2L

• Dimensions (WxDxH): 92.5 x 297.7 x 339.5 mm

• Weight: Starting at 4.2 kg

• Color: Black (chassis) / Grey (bezel)

• Accessories: USB Calliope Keyboard, USB Calliope Mouse

• Card Reader: 3-in-1 Card Reader

• Security: Discrete TPM 2.0 (FIPS 140-2 certified), Kensington Lock Slot, Padlock Loop, Smart USB Protection

• Warranty: 3 Year Carry-in
