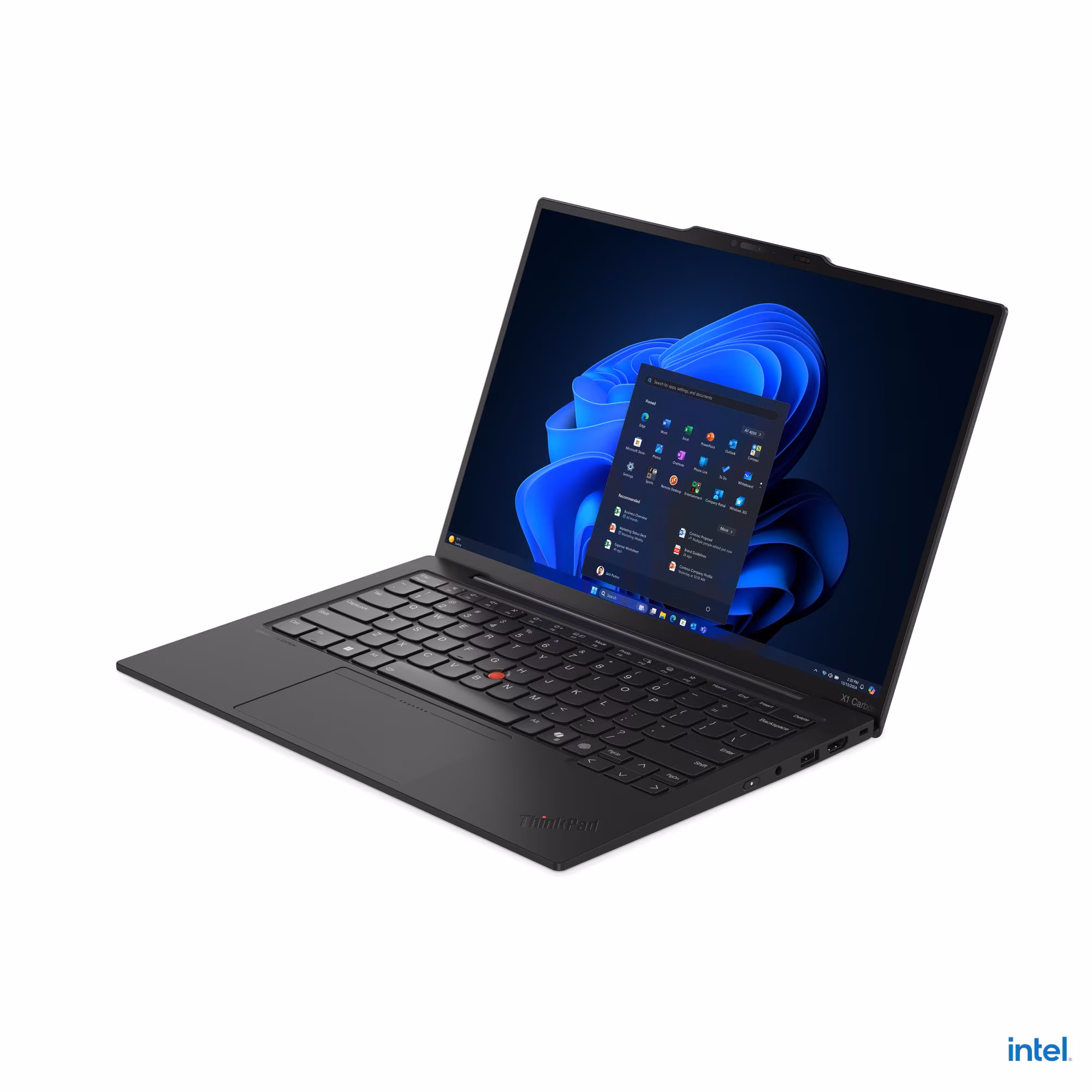

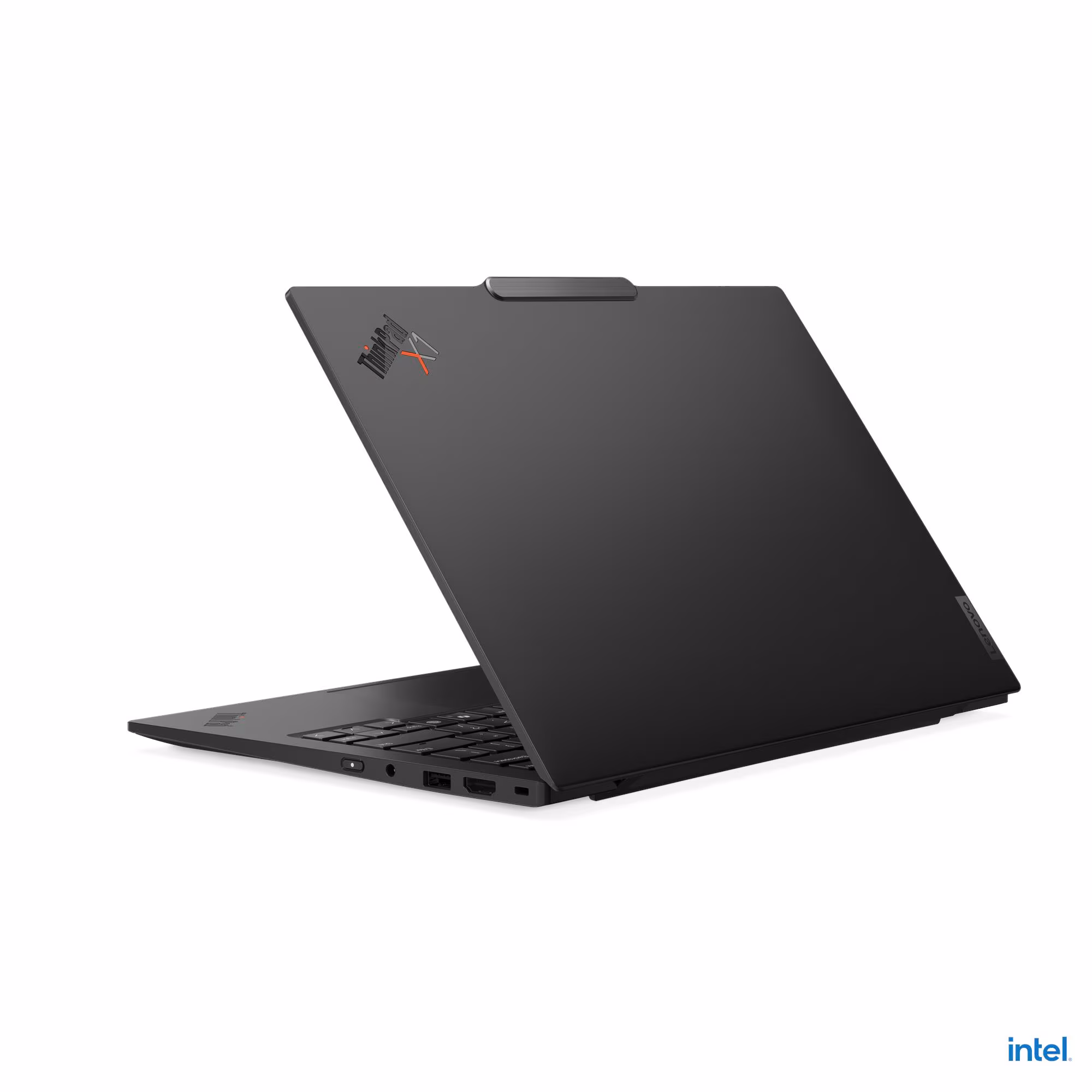

Lenovo ThinkPad X1 Carbon Gen 13 Intel Core Ultra 7

Datasheet

Short Description

The Lenovo ThinkPad X1 Carbon Gen 13 Aura Edition Laptop (21NX00FPMH) is an ultra-premium AI-powered business ultrabook that redefines professional mobility. Weighing just 1.01 kg and measuring an ultra-thin 8.38mm at its slimmest point, it is one of the lightest enterprise laptops available. Featuring a brilliant 14-inch WUXGA 500-nit low-power anti-glare display, the powerful Intel Core Ultra 7 255U processor with integrated Intel AI Boost (up to 12 TOPS), 32GB of ultra-fast LPDDR5x-8400 memory, and legendary ThinkPad durability with MIL-STD-810H certification, this premium commercial notebook sets a new standard for executive mobility and productivity.

---

Key Sections

Ultra-Lightweight Design & Legendary Build Quality

The ThinkPad X1 Carbon Gen 13 represents the pinnacle of ThinkPad engineering. At just 1006g (2.22 lbs) and 8.38mm thin at the front, it is among the lightest 14-inch business laptops ever created. The chassis combines carbon fiber and aluminum materials, offering exceptional durability while maintaining an ultra-premium feel. The iconic ThinkPad design language remains intact, featuring the classic black finish, red TrackPoint, and the signature ThinkPad logo with a pulsing red LED "i". The laptop meets MIL-STD-810H military-grade durability standards, ensuring reliability even in demanding environments.

Brilliant 14-Inch WUXGA 500-Nit Low Power Display

The ThinkPad X1 Carbon Gen 13 features a 14-inch WUXGA (1920 x 1200) IPS anti-glare display with 500 nits peak brightness and 100% sRGB color gamut. The display incorporates Low Power technology, consuming significantly less energy while maintaining excellent visual clarity. The 16:10 aspect ratio provides expanded vertical screen space for enhanced productivity. The anti-glare coating reduces reflections for comfortable viewing in various lighting conditions. The display is certified with Eyesafe 2.0 for reduced blue light emission, protecting users during extended work sessions.

High-Performance Intel Core Ultra Processing with AI Acceleration

Under the hood, the laptop is powered by the Intel Core Ultra 7 255U high-performance processor from the Arrow Lake-U series. It features 12 cores (2 Performance cores, 8 Efficient cores, and 2 Low Power Efficient cores) and 14 threads, with P-cores boosting up to 5.2 GHz. The processor is built on the modern Intel 3 process for improved power efficiency. The processor integrates Intel AI Boost with up to 12 TOPS of AI computing power, delivering accelerated AI-enhanced workflows and intelligent performance optimization. As a result, running virtual meetings, editing documents, and processing complex data analysis remains smooth and responsive. Paired with 32GB of soldered LPDDR5x-8400 memory and a 1TB PCIe Gen4 NVMe SSD with Opal 2.0 encryption, the system handles intensive business applications effortlessly.

Advanced Thunderbolt 4 Connectivity & Comprehensive Port Selection

The ThinkPad X1 Carbon Gen 13 offers exceptional connectivity options for a laptop this thin. It includes dual Thunderbolt 4 / USB4 40Gbps ports for blazing-fast data transfer, allowing connection to multiple 4K displays, external GPUs, and high-speed storage devices. Additionally, the laptop includes versatile ports: HDMI 2.1 supporting up to 4K/60Hz output, two USB-A ports (one with Always-On charging), and a 3.5mm headphone/mic combo jack. The integrated Nano SIM slot supports WWAN upgradability for 5G cellular connectivity on the go.

Exceptional Battery Life & Rapid Charge Technology

The ThinkPad X1 Carbon Gen 13 includes a 57Wh battery that delivers outstanding endurance. With Rapid Charge technology, the X1 Carbon juices up from 20% to 70% in approximately 25 minutes using the 65W USB-C power adapter. The battery is a customer-replaceable unit (CRU) for simplified maintenance.

Premium User Experience with Backlit Keyboard

Designed for comfortable all-day productivity, the laptop features a UK English backlit keyboard with 1.5mm key travel and the iconic TrackPoint navigation system. The keyboard includes tactile markings for accessibility. The glass TrackPad is responsive and supports multi-touch gestures. The TrackPoint Quick Menu can be activated by double-tapping the red pointing stick, providing quick access to audio adjustments, alerts, and other functions. The laptop also features stereo speakers (2W x2) with Dolby Atmos and dual-array 360-degree microphones for crystal-clear audio during virtual meetings.

---

Core Features

• The 14-inch 500-nit WUXGA IPS low power anti-glare display provides brilliant visuals with excellent outdoor visibility and reduced power consumption.
• The high-performance Intel Core Ultra 7 255U processor with Intel AI Boost (12 TOPS) accelerates daily business computing and AI-enhanced workflows.
• 32GB LPDDR5x-8400 memory guarantees exceptional application response times and fluid multitasking.
• High-speed 1TB PCIe Gen4 NVMe SSD with Opal 2.0 encryption enables rapid boot times and quick file access.
• The FHD 1080p + IR Hybrid webcam with physical privacy shutter and match-on-chip fingerprint reader delivers comprehensive biometric authentication and visual security.
• Dual Thunderbolt 4 connectivity enables 40Gbps data transfers and multi-display capabilities.

---

Performance & Utility Features

• The Intel Core Ultra 7 255U processor utilizes advanced Arrow Lake architecture and integrated AI Boost for optimal power efficiency and computing speed.
• Intel Wi-Fi 6E (AX211 2x2) grants access to less congested 6GHz network bands for faster downloads and stable connections.
• The versatile port selection including dual Thunderbolt 4, HDMI 2.1, and USB-A ports ensures seamless connectivity in any environment.
• Stereo speakers with Dolby Atmos and dual-array 360° microphones ensure clear audio output during virtual meetings.
• The 57Wh battery with Rapid Charge technology delivers extended mobility and fast recharging.

---

Design, Build & Sustainability

• The ThinkPad X1 Carbon Gen 13 chassis meets MIL-STD-810H military-grade durability standards and is rated for extreme conditions.
• The UK backlit keyboard ensures comfortable typing in low-light environments with tactile markings for accessibility.
• The physical webcam privacy shutter grants immediate visual security protection.
• The laptop features a carbon fiber top and aluminum bottom, weighing just 1.01kg.
• It is constructed with sustainable materials including ocean-bound plastic in the speaker enclosure and recycled carbon fiber.
• The laptop is ENERGY STAR 9.0 certified, EPEAT Gold registered, and TCO Certified 10.0.
• The 3-year on-site warranty provides long-term reliability for enterprise deployments.

---

Technical Specifications Summary

• Model / Part Number: Lenovo ThinkPad X1 Carbon Gen 13 Aura Edition (21NX00FPMH)
• Processor: Intel Core Ultra 7 255U (12 Cores: 2P + 8E + 2LPE, Up to 5.2 GHz Max Boost, 12MB Cache) with Intel AI Boost (up to 12 TOPS)
• AI PC Category: AI PC
• Graphics: Integrated Intel Graphics
• Chipset: Intel SoC Platform
• Memory: 32 GB Soldered LPDDR5x-8400 Memory (Not Upgradable)
• Storage: 1 TB SSD M.2 2280 PCIe 4.0x4 NVMe Opal 2.0
• Storage Slot: One M.2 2280 PCIe 4.0 x4 slot
• Display: 14-inch WUXGA (1920 x 1200) IPS Anti-Glare, 500 nits, 100% sRGB, 16:10 Aspect Ratio, 60Hz, Low Power, Eyesafe 2.0
• Operating System: Windows 11 Pro
• Optical Drive: None
• Camera: FHD 1080p + IR Discrete with Physical Privacy Shutter
• Wireless Connectivity: Intel Wi-Fi 6E (AX211 2x2) and Bluetooth 5.3
• Security Features: Match-on-Chip Touch Fingerprint Reader, IR Facial Recognition, Web Camera Privacy Shutter, Discrete TPM 2.0, Kensington Nano Security Slot, Ultrasonic Human Presence Detection
• Keyboard: UK English Backlit Keyboard with TrackPoint
• Battery Type: 3-Cell 57Wh Battery (CRU - Customer Replaceable Unit) with Rapid Charge
• Power Supply: 65W USB-C Slim GaN Power Adapter (3PIN-UK)
• Dimensions (W x D x H): 312.8 x 214.8 x 8.38/14.77 mm (front/rear), 17.95 mm (maximum)
• Weight: Starting at 1006 g / 2.22 lbs
• Color: Black Paint (Carbon Fiber Top + Aluminum Bottom)
• Ports:
  • 2x Thunderbolt 4 / USB4 40Gbps (DisplayPort 2.1, Power Delivery 3.0)
  • 2x USB-A (USB 5Gbps / USB 3.2 Gen 1; one with Always-On Charging)
  • 1x HDMI 2.1 (Supports up to 4K/60Hz)
  • 1x Headphone / Microphone Combo Jack (3.5mm)
  • 1x Nano SIM Slot (WWAN Upgradable)
  • Kensington Nano Security Slot
• Audio: Stereo Speakers (2W x2), Dolby Atmos, Dual-Array 360° Microphones
• Warranty: 3 Year On-site Warranty with 1-year Battery
