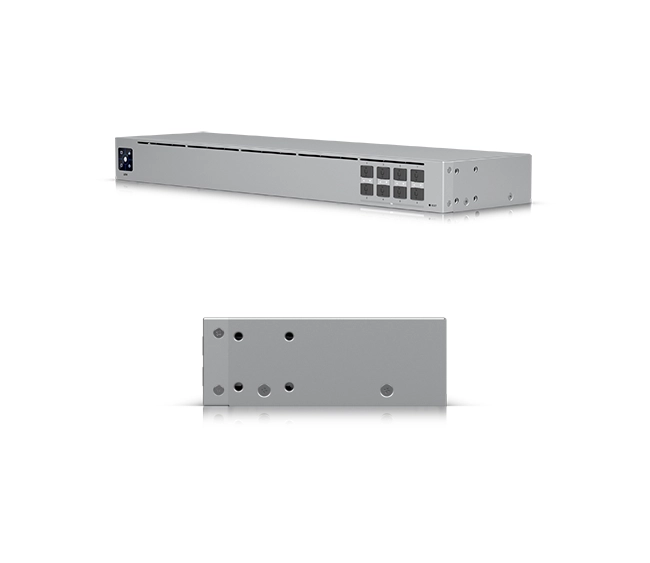

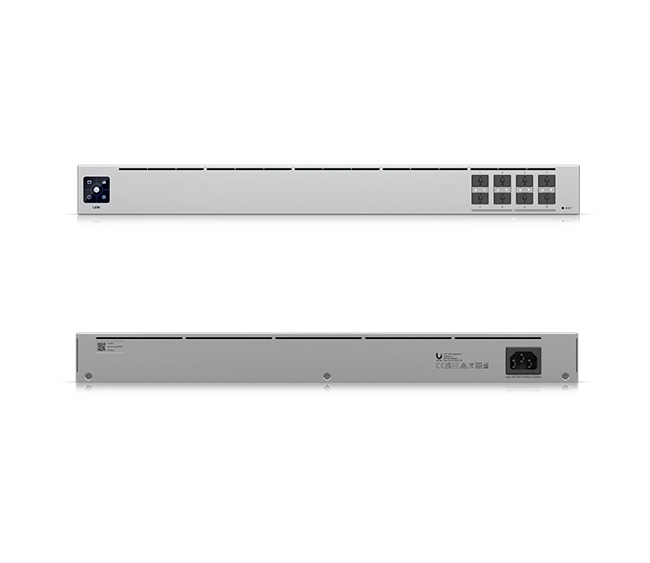

UniFi Switch Aggregation (USW-Aggregation)

The Ubiquiti UniFi Switch Aggregation (USW-Aggregation) is a high-performance Layer 2 aggregation switch designed to deliver ultra-fast fiber connectivity and centralized switching for enterprise and data-intensive UniFi networks. The Ubiquiti UniFi Switch Aggregation provides high-density 10-gigabit SFP+ ports in a compact rackmount form factor, making it ideal for core switching, server aggregation, and high-speed uplinks between UniFi switches.

Product Overview

The Ubiquiti UniFi Switch Aggregation (USW-Aggregation) is purpose-built to act as a backbone switch within the UniFi ecosystem. It enables high-throughput aggregation of access switches, servers, and storage systems while offering centralized management through the UniFi Network application.

Switching & Performance Specifications

• Switching capacity: 160 Gbps
• Forwarding rate: 120 million packets per second
• Switching layer: Layer 2 managed switch
• Jumbo frame support: Yes
• Non-blocking throughput: Yes

Port Configuration

• Total ports: 8
• Port type: SFP+
• Port speed:
  • 1 Gbps
  • 10 Gbps
• Auto-negotiation: Supported
• Fiber support: Multi-mode and single-mode via SFP/SFP+ modules

Network Features

• VLAN support
• Port isolation
• Link aggregation (LACP)
• Spanning Tree Protocol (STP / RSTP)
• Storm control
• Port mirroring
• QoS and traffic prioritization

UniFi Management

• Management interface: UniFi Network application
• Device adoption: Plug-and-play UniFi adoption
• Monitoring: Real-time port statistics and traffic insights
• Configuration: Centralized switching and VLAN configuration

Physical & Hardware Specifications

• Form factor: 1U rackmount
• Mounting: Standard 19-inch rack compatible
• Cooling: Active cooling with internal fans
• Chassis material: Industrial-grade metal enclosure
• Color: Silver

Power Specifications

• Power input: AC power
• Power supply: Internal power supply
• Redundancy: Not supported

Deployment Use Cases

• Core aggregation switch for UniFi networks
• Data center and server room deployments
• High-speed uplinks between UniFi switches
• Storage and virtualization environments

Key Features

• 8 × 10G SFP+ ports for high-speed aggregation
• Non-blocking 160 Gbps switching capacity
• Layer 2 managed switching with advanced features
• Full UniFi Network integration and centralized control
• Compact 1U rackmount enterprise design

Meta Description

Ubiquiti UniFi Switch Aggregation (USW-Aggregation) is an enterprise Layer 2 aggregation switch featuring 8 × 10G SFP+ ports, 160 Gbps switching capacity, rackmount design, and seamless UniFi Network integration for high-speed core and data center networks. Datasheet
